Description
The M11-M16 Cast Resin Straight Joint is designed for 0.6/1.0(1.2)kV armored and unarmored cables, insulated with PVC, XLPE, and PE. This versatile joint is suitable for various applications, including indoor, outdoor, and underground installations. Its compact dimensions and high-quality transparent plastic shell ensure a reliable and durable connection. The joint offers excellent corrosion resistance, UV resistance, and weathering properties, making it ideal for long-term use. With superior electrical and mechanical characteristics, it is easy to install and safe, containing no toxic components. The shelf life of the cast resin is 36 months when stored at ambient temperatures between 15°C to 35°C.

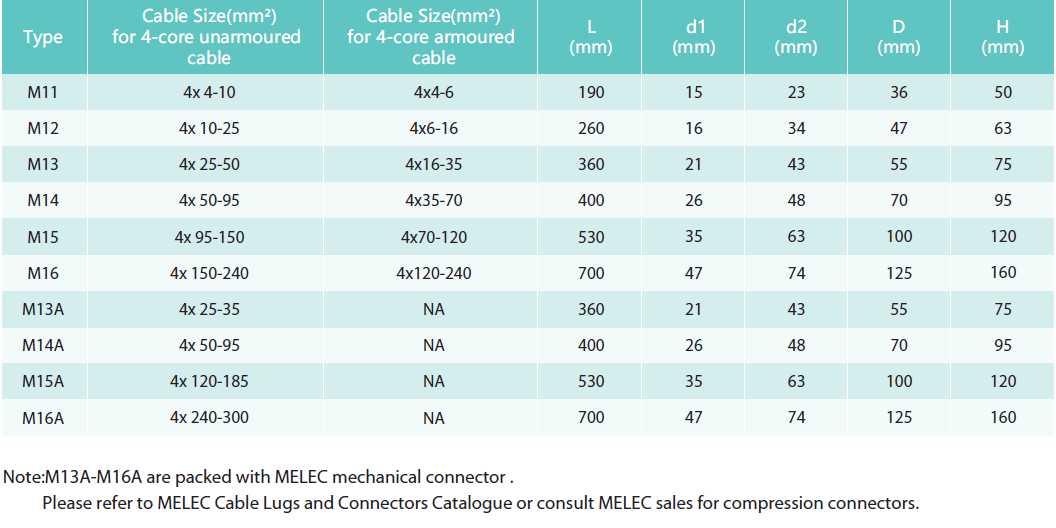

Specifications
| Feature | Description |
|---|---|
| Voltage Rating | 0.6/1.0(1.2)kV |
| Material | Transparent Plastic Shell, Cast Resin |
| Application | Indoor, Outdoor, Underground |
| Shelf Life | 36 months at 15°C to 35°C |
| Tests | EN50393 |

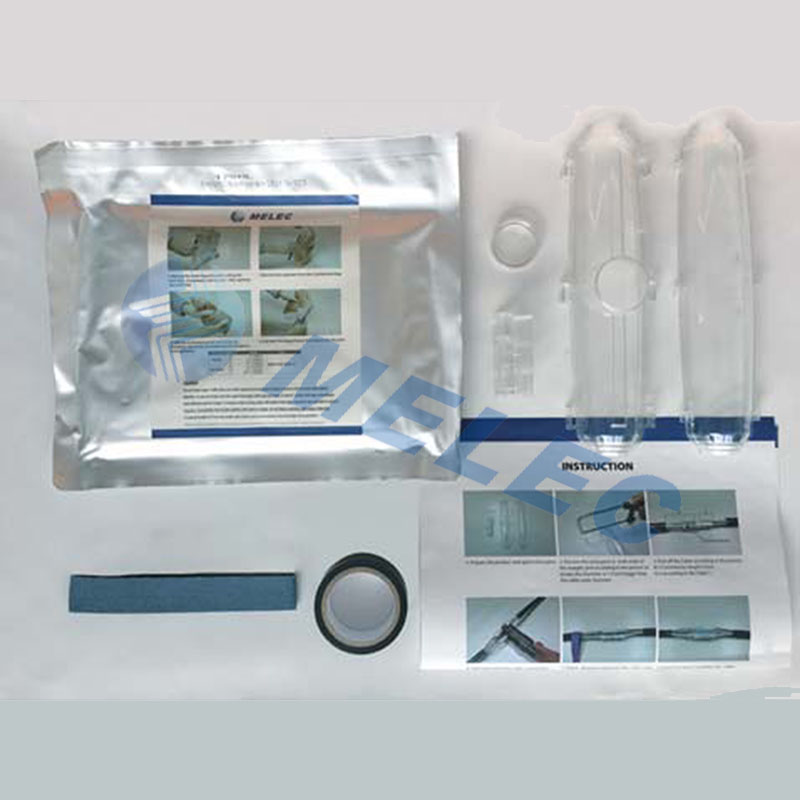

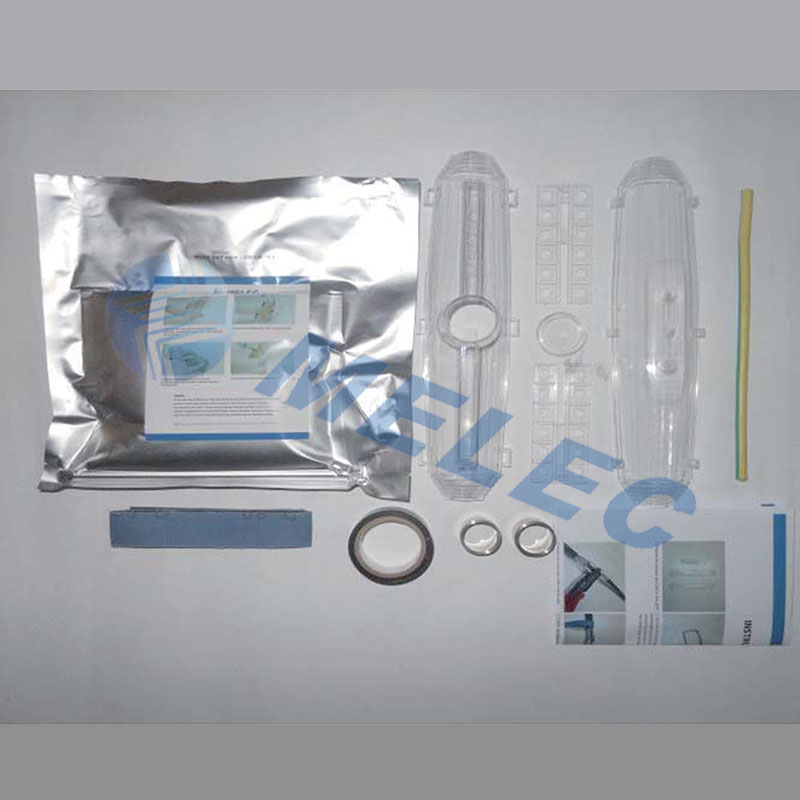

Package Contents
Armoured:
- Insulated power cable
- Transparent plastic shell
- Cast resin (two components with correct volume)
- Sandcloth paper
- PVC tape
- Constant force spring
- Installation instructions
Unarmoured:
- Transparent plastic shell
- Cast resin (two components with correct volume)
- Sandcloth paper
- PVC tape
- Installation instructions
