M730-Remote I/O Module
Inquire NowDescription

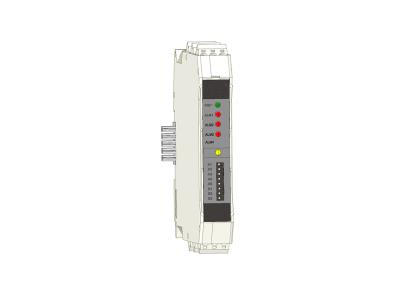

The M730-Remote I/O Module is a sophisticated signal conditioner designed for precise temperature, mV, and Ohm measurements. This 3-channel input module features RS485 communication, ensuring robust connectivity and data transmission. With built-in isolation between each channel, power, and network circuits, it effectively eliminates potential ground loops, enhancing measurement accuracy. The device operates under the widely accepted RS-485 Modbus RTU protocol, making it compatible with various applications. It supports both AC and DC power sources through nonpolarized, diode-coupled terminals. Whether functioning as an independent temperature transmitter or in conjunction with the MWG1 to establish a remote I/O DAS, the M730 excels in versatility, supporting both MODBUS RTU and MODBUS TCP protocols.
Specifications
| Attribute | Details |
|---|---|
| Input Signal Type | Programmable by ZPconfig software: TC (K/E/S/B/R/J/T/N), RTD (PT100/PT200/PT500/PT1000/Cu50), Resistance (0~400Ω, 0~4000Ω), mV (+80mV), Voltage (0~1V dc) |
| Input Channels | 3 Channels |
| Input Impedance | ≥10MΩ |
| A/D Resolution | 24 bit |
| Communication | RS485 |
| Protocol | Modbus RTU |
| Baud Rate | 115200, 38400, 19200…4800 bps (config. by DIP) |
| Address ID | 1-31 (config. by DIP) |
| RS485 Drive Capacity | Max. 64 nodes |
| Power Supply | 24VDC±10% or AC |
| Response Time | ≤0.4S |
| Accuracy | TC: ≤ 1°C; RTD: ≤ 0.2°C; Resistance: ≤ 0.05% F.S.; mV: ≤ +10µV; Voltage: ≤ +10mV |
| Sampling Rate | 9 times/sec. |
| Digital Output | Single Precision Floating-Point |
| Power Loss | 1.2W (24VDC) |
| Temperature Drift | 0.01%/Celsius degree |
| Operation Temperature | -10~70°C |
| Storage Temperature | -40~80°C |
| Relative Humidity | 5-95% non-condensing |
| Isolation | 6-way isolation between each channel of input/output/communication/power supply: ≥1500VAV/1min |
| Isolation Resistance | ≥100MΩ/500V |
| Calibrating Ambient Temperature | 25±2 °C |
| EMC | EN1326: 1997+A1:1998+A2:2001+A3:2003 |
| Terminal Blocks | Removable plug-in type, rated for 12A/250V; AWG #26-12, stranded/solid copper wire |
| Casing/Terminal | IP50/IP20 |
| Weight | 122g |
