Product Description

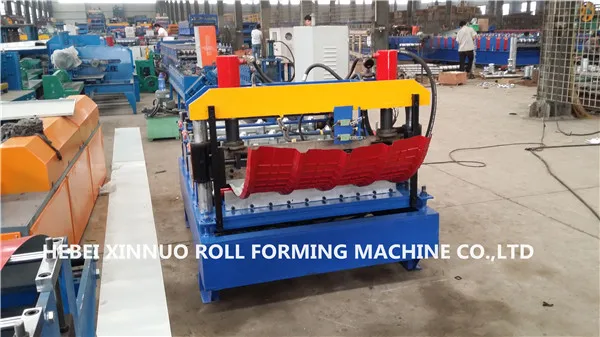

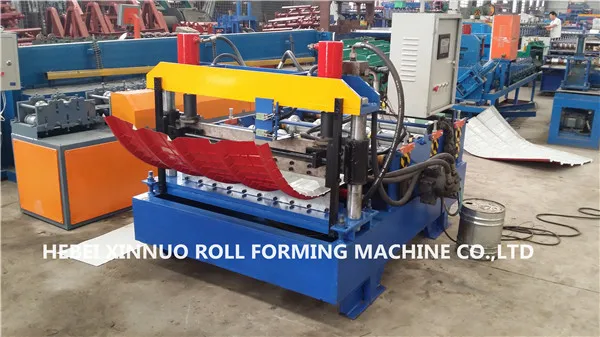

The manual sheet metal curving machine is an essential piece of machinery for tile manufacturing plants, designed to streamline the tile-making process. This robust machine is capable of curving sheet metal with precision, ensuring high-quality production and efficiency. Tailored to meet specific user requirements, it supports various steel plate types and thicknesses ranging from 0.3 to 0.8 mm. With a processing precision within 1.00 mm, it guarantees consistent results for every tile produced.
| Attribute | Details |
|---|---|
| Suitable Steel Plate | Color Steel Plate |
| Thickness | 0.3-0.8 mm |
| Feeding Width | As per user needs |
| Processing Precision | Within 1.00 mm |
| Production Speed | 20-30 m/min |

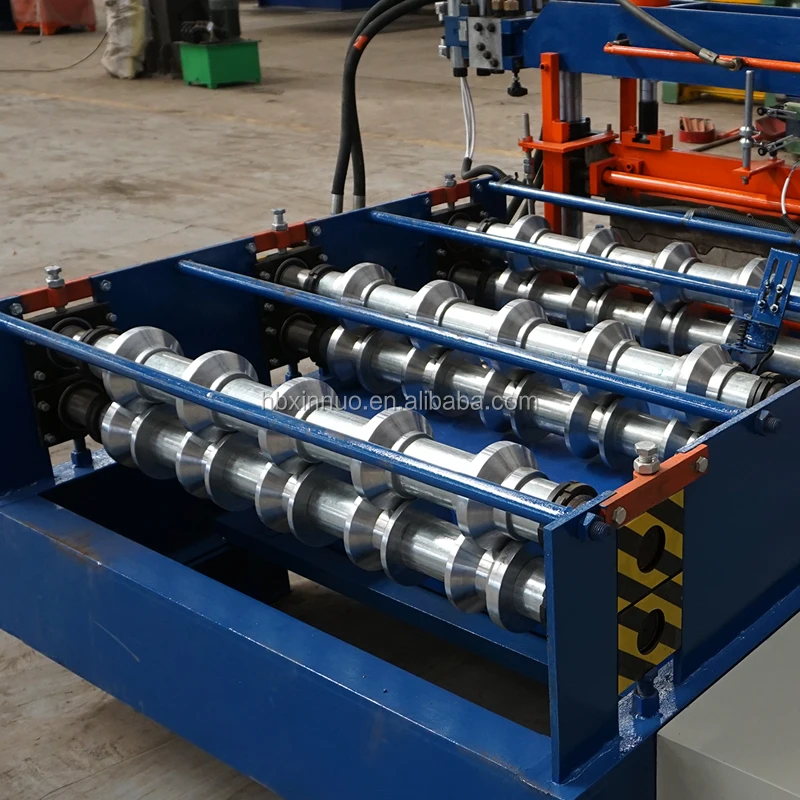

| Roller Stand | 5 rows |
| Diameter | 70 mm |
| Main Power | 3 kW |
| Pump Power | 4 kW |
| Side Panel of Machine | 14 mm |
| Roller Material | Carbon Steel 45# |
| Blade Material | Cr12, quenched |
| Control System | Delta PLC control |
| Voltage | 380V 50Hz 3 phases (changeable as needed) |
| Main Structure of the Machine | 300 mm H-Beam |
