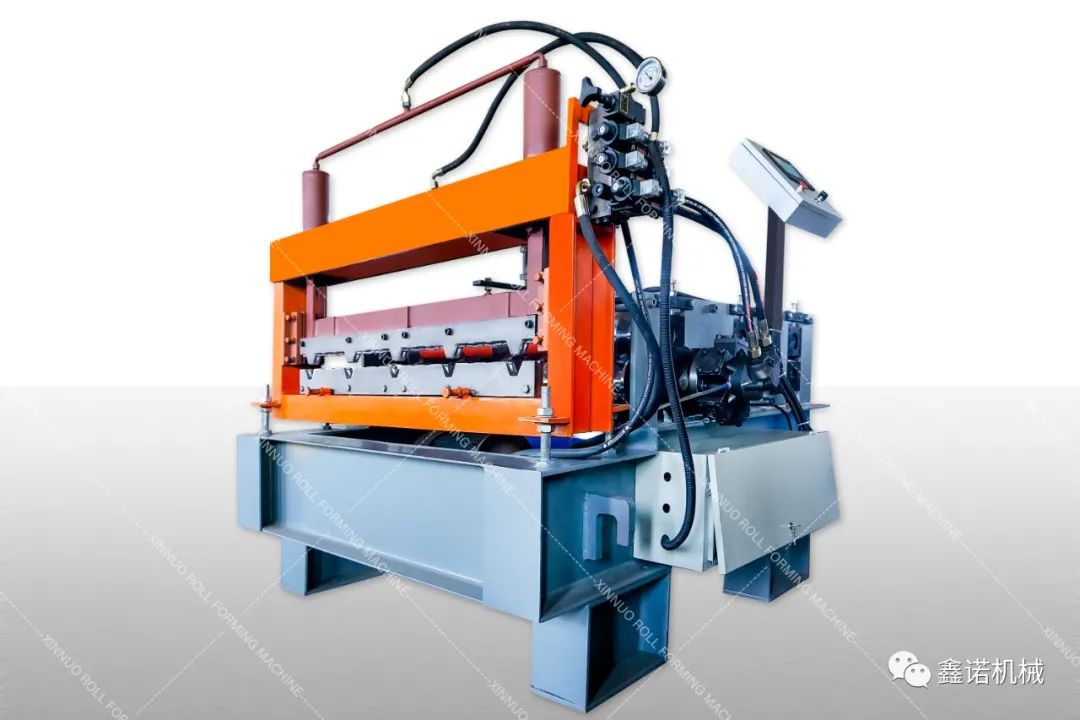

manual sheet metal curving machine tile manufacturing plant tile making machinery
Inquire NowThe manual sheet metal curving machine is an essential tool for any tile manufacturing plant, designed specifically for efficient tile making. This robust machinery is capable of handling various steel plate types and thicknesses, ensuring precision and quality in the production process. With a focus on user-specific requirements, this machine is adaptable to different production needs, making it a versatile choice for manufacturers.
Attribute | Details |
---|---|
Suitable Steel Plate | Color Steel Plate |
Thickness | 0.3-0.8 mm |
Feeding Width | As users needs |
Processing Precision | Within 1.00 mm |
Production Speed | 20-30 m/min |

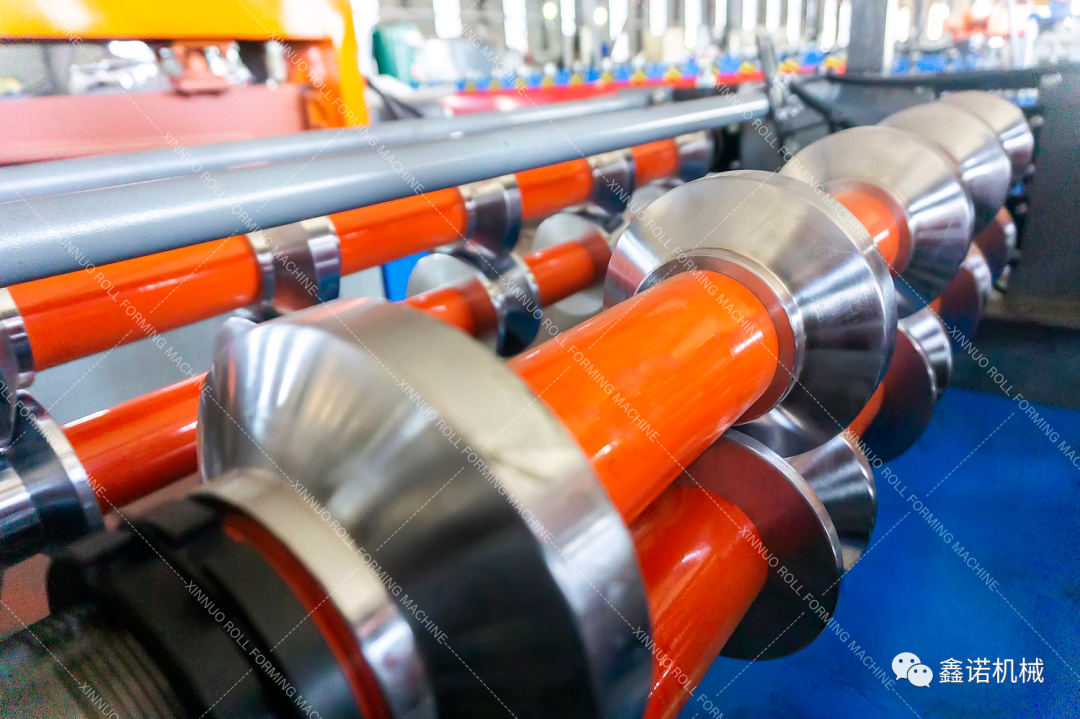

Roller Stand | 5 rows |
Diameter | 70 mm |
Main Power | 3 kW |
Pump Power | 5.5 kW |
Side Panel of Machine | 14 mm |
Roller Material | Carbon Steel 45# |

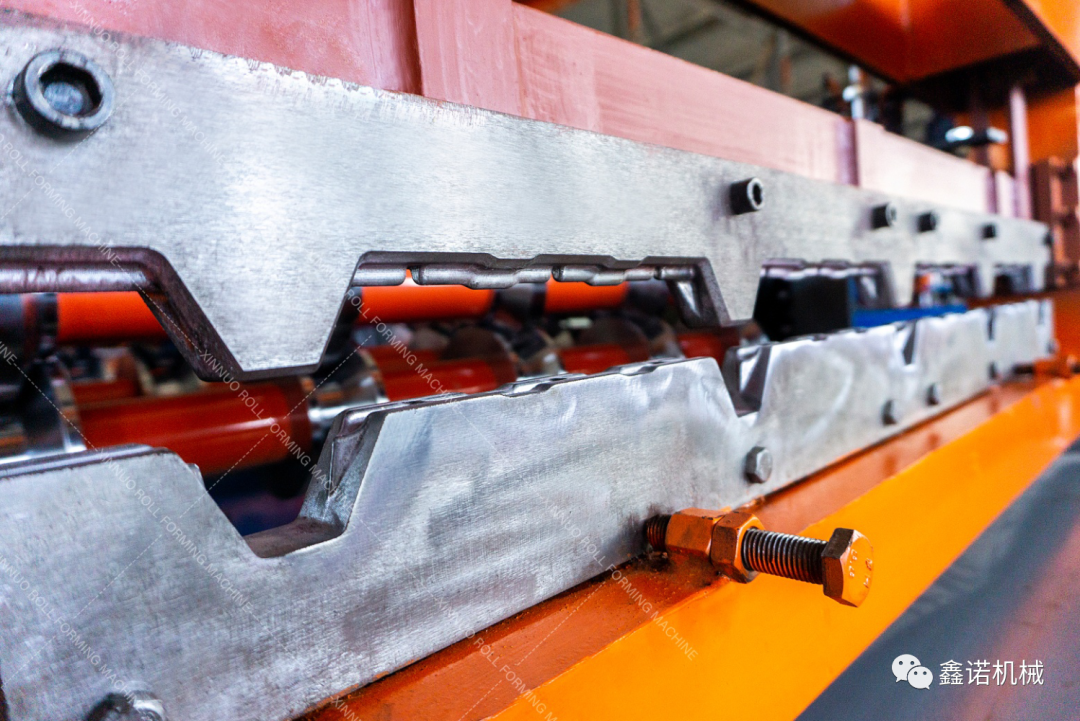

Blade Material | Cr12, quenched |
Control System | Delta PLC control |
Voltage | 380V 50Hz 3 phases (changeable as needed) |
Main Structure of the Machine | 350 mm H-Beam |
