manual sheet metal curving machine tile manufacturing plant tile making machinery
Inquire NowProduct Description

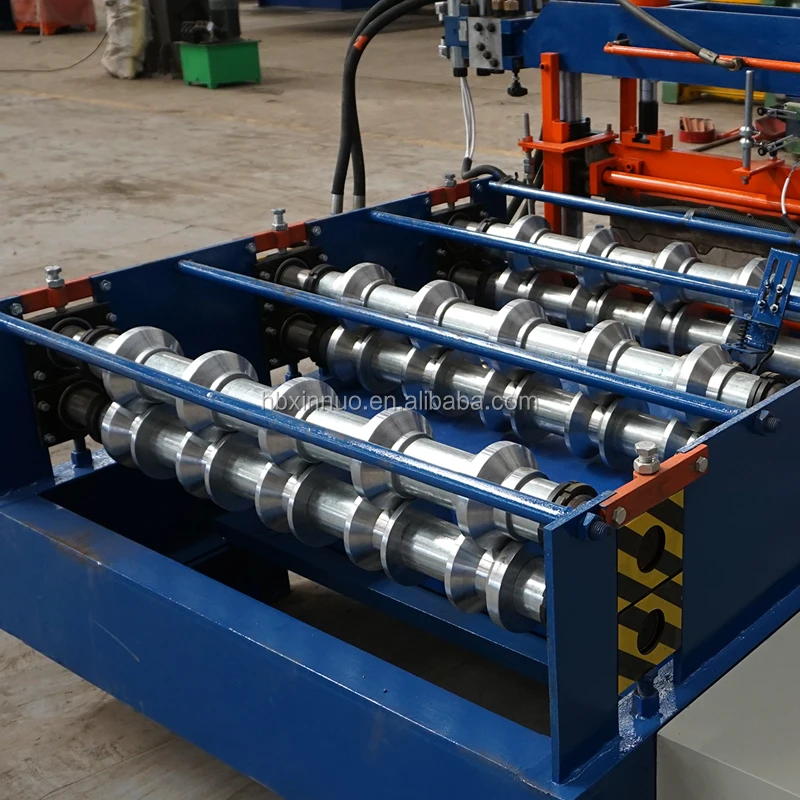

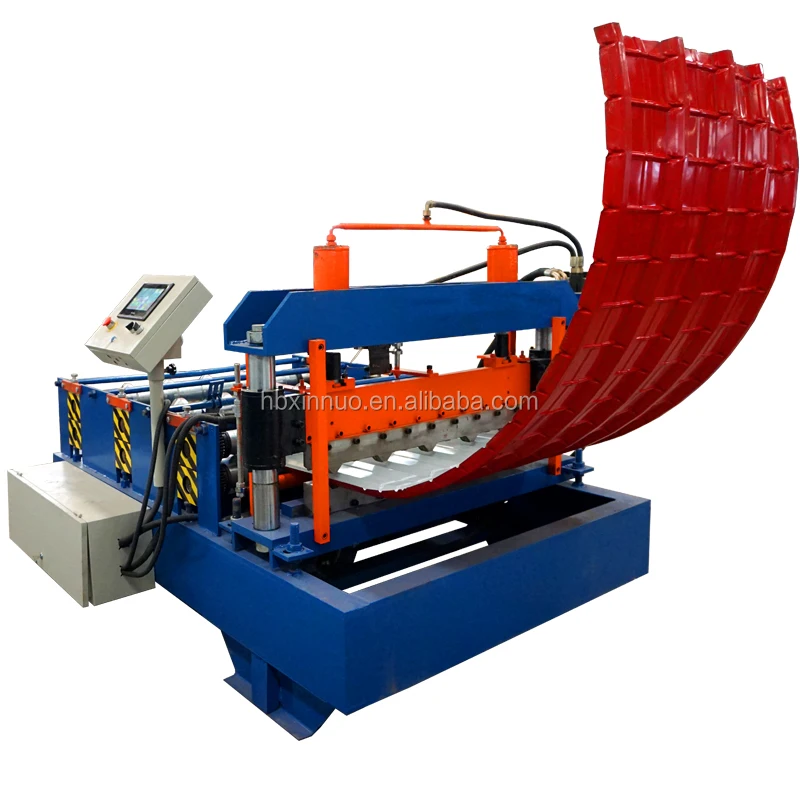

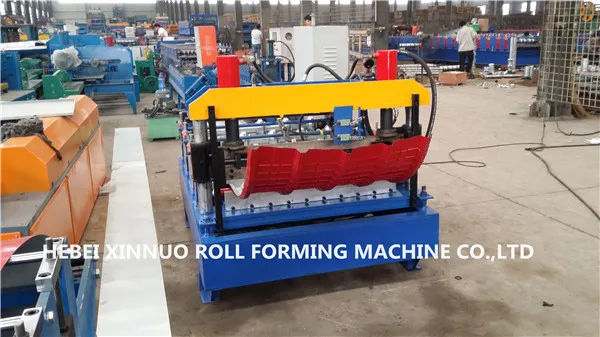

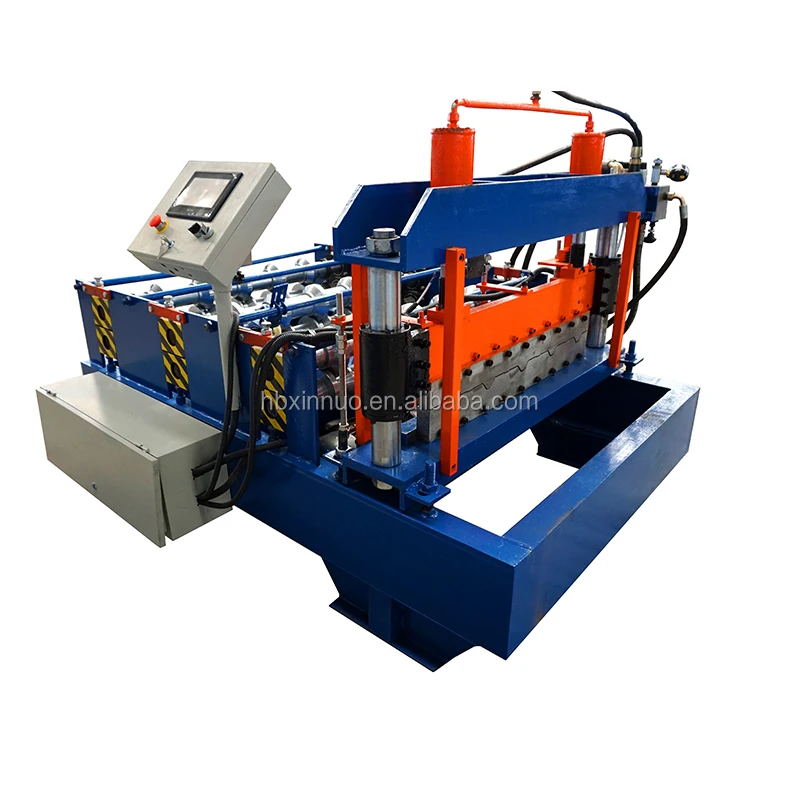

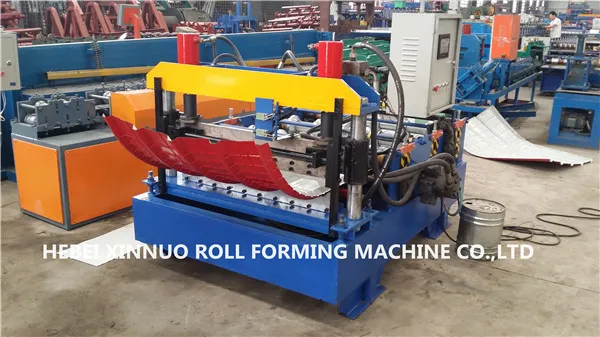

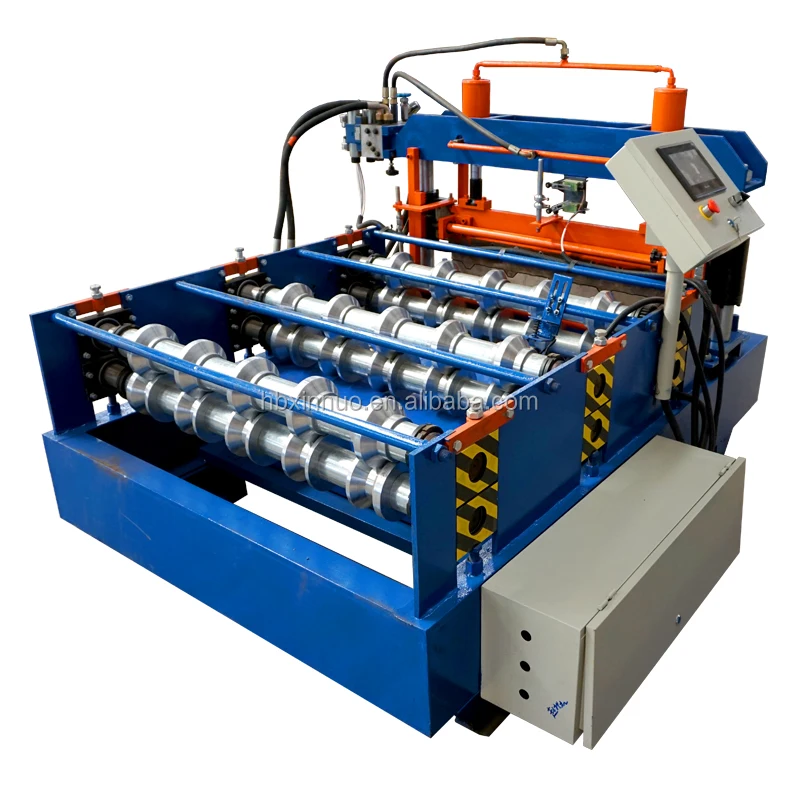

The manual sheet metal curving machine is an essential piece of equipment for tile manufacturing plants, designed to streamline the tile-making process. This machine specializes in curving sheet metal with precision, allowing for the creation of various tile shapes and sizes according to user specifications. Built with high-quality materials and advanced technology, it ensures durability and efficiency in production.
| Attribute | Details |
|---|---|
| Suitable Steel Plate | Color Steel Plate |
| Thickness | 0.3-0.8 mm |
| Feeding Width | As users needs |
| Processing Precision | Within 1.00 mm |
| Production Speed | 20-30 m/min |
| Roller Stand | 5 rows |
| Diameter | 70 mm |
| Main Power | 3 kW |
| Pump Power | 4 kW |
| Side Panel Thickness | 14 mm |
| Roller Material | Carbon Steel 45# |
| Blade Material | Cr12, quenched |
| Control System | Delta PLC control |
| Voltage | 380V 50Hz 3 phases (changeable as needed) |
| Main Structure | 300 mm H-Beam |
