The DPN miniature circuit breaker is compact in structure and has two poles in the width of 18mm. The insulated casing of the circuit breaker is provided with a contact arc extinguishing system, a four-link quick acting mechanism and a thermal-electromagnetic tripping mechanism, and is suitable for a 35mm rail card type. Installation, especially suitable for homes, shopping malls and other places.

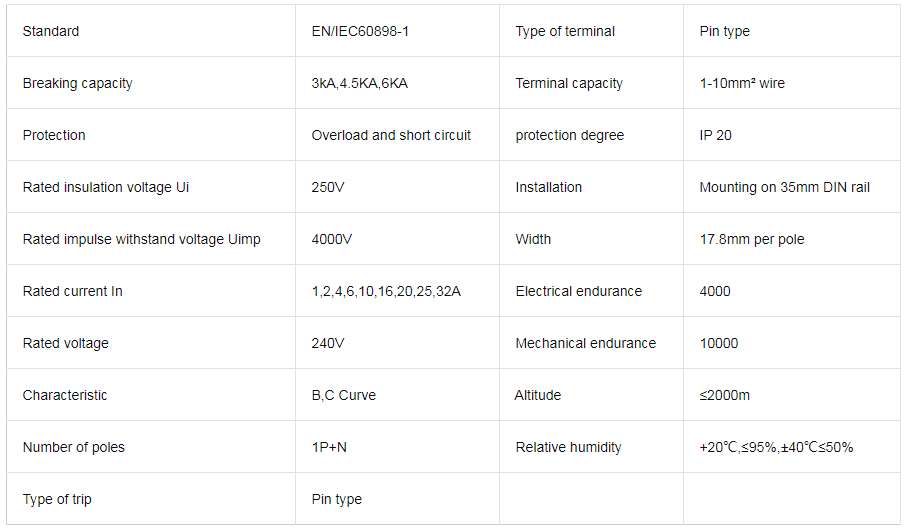

Technical Data

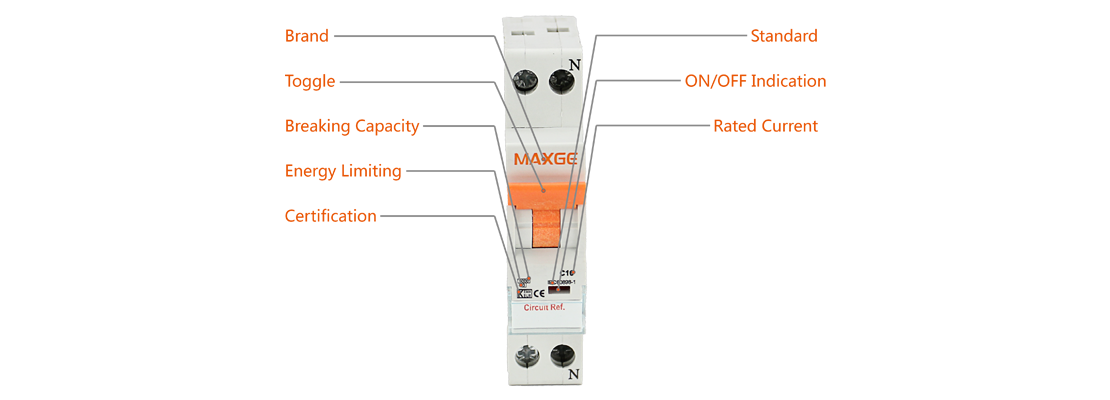

Product Diagram

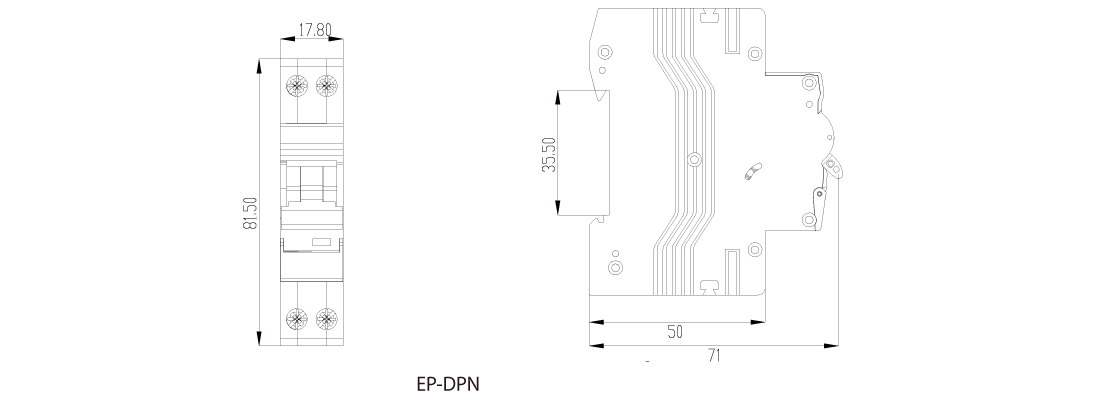

Dimensions
