MAXGE EPI-R 1P/2P/3P/4P Isolating Switch
Inquire NowDescription
The MAXGE EPI-R Isolating Switch is a robust and reliable solution designed for power distribution, accommodating AC frequencies of 50Hz and 60Hz. With a rated current of 100A and a working voltage of 230V to 400V, this isolating switch serves as a primary control for terminal electrical appliances, electric motors, and lighting systems. Its impressive mechanical lifespan of 10,000 operations, along with an electrical lifespan of 6,000 operations, ensures long-term durability and efficiency in various applications.
Specifications
| Attribute | Details |
|---|---|
| Rated Current | 100A |
| Rated Voltage | 230V / 400V |
| Frequency | 50Hz / 60Hz |
| Mechanical Life | 10,000 operations |
| Electrical Life | 6,000 operations |
Additional Information
For optimal performance and safety, ensure proper installation in accordance with electrical standards. Regular maintenance checks are recommended to prolong the lifespan of the isolating switch.

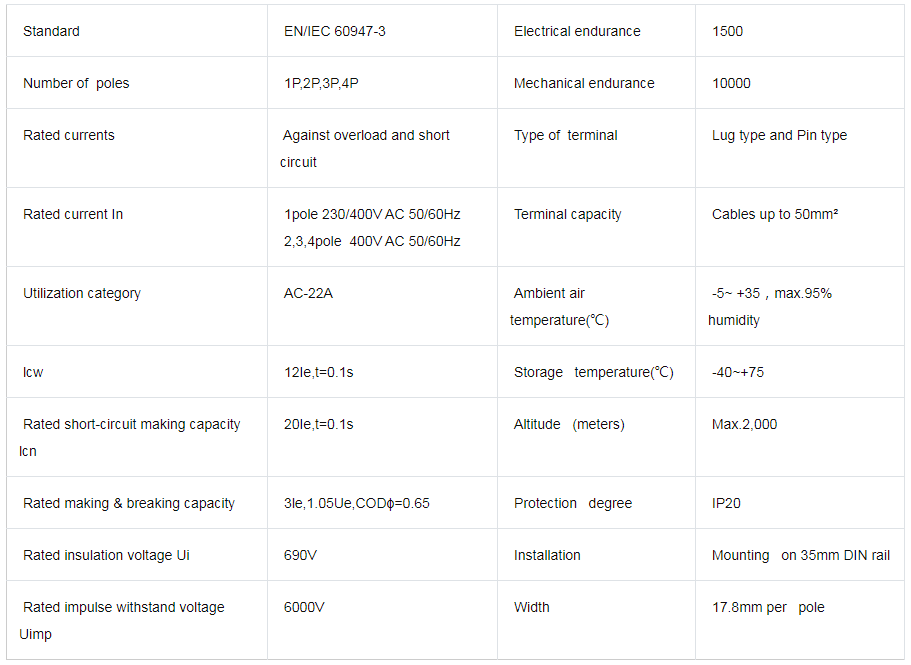

Technical Data

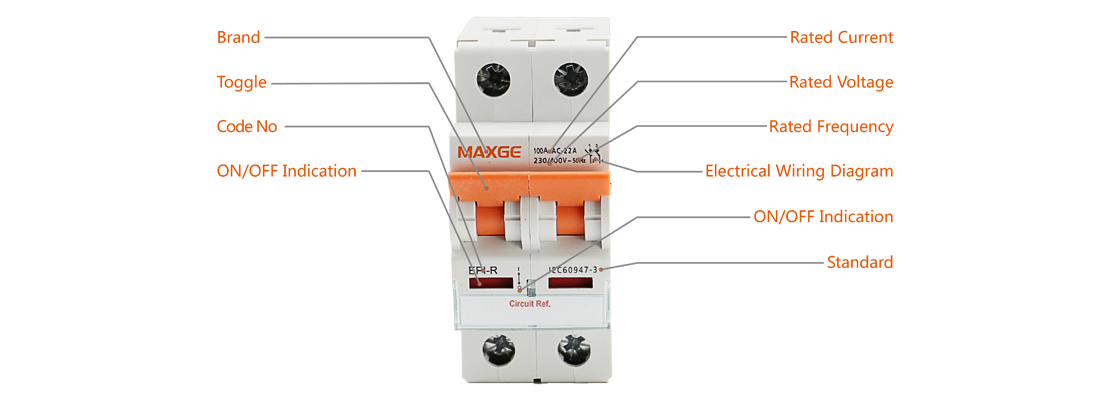

Product Diagram

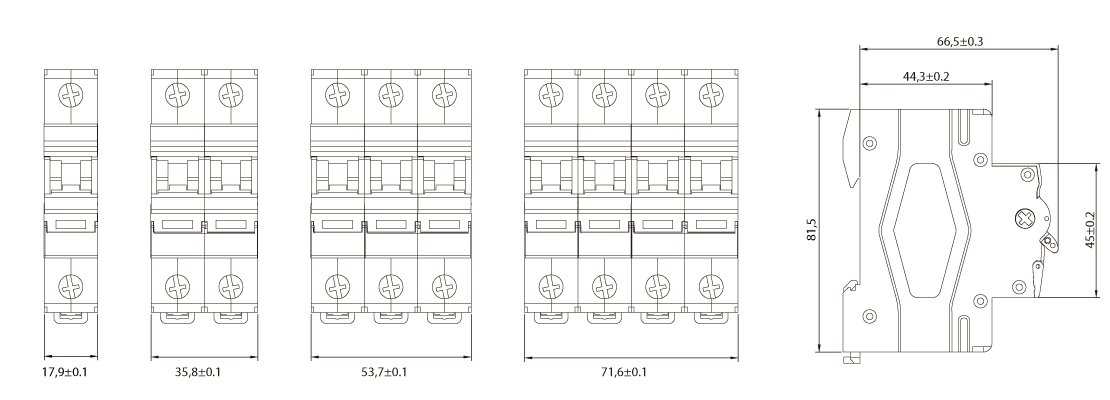

Dimensions
