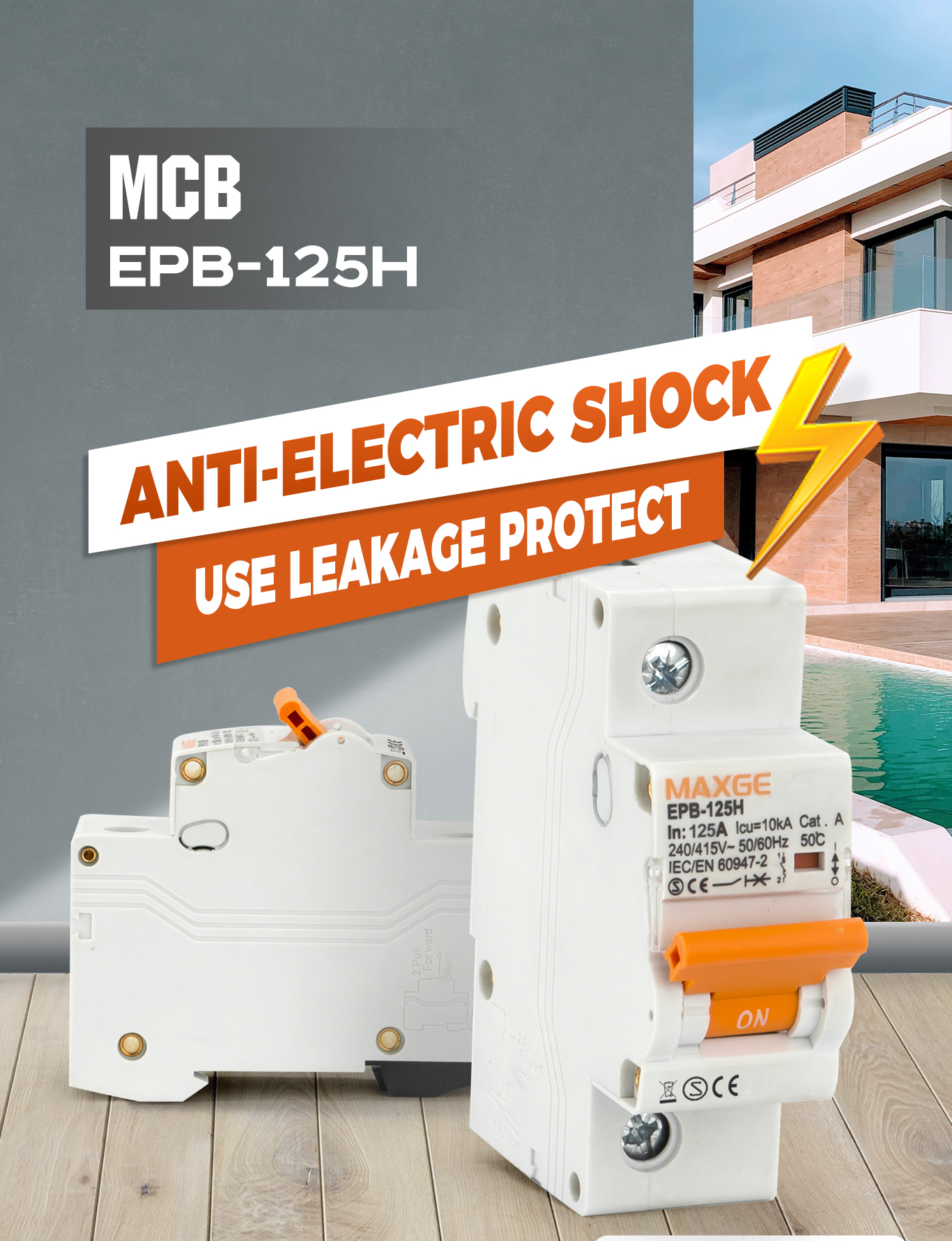

MAXGE High Rated HR MCB Nc-125h MCB Miniature Circuit Breaker with Semko & CE Certified
Inquire NowDescription

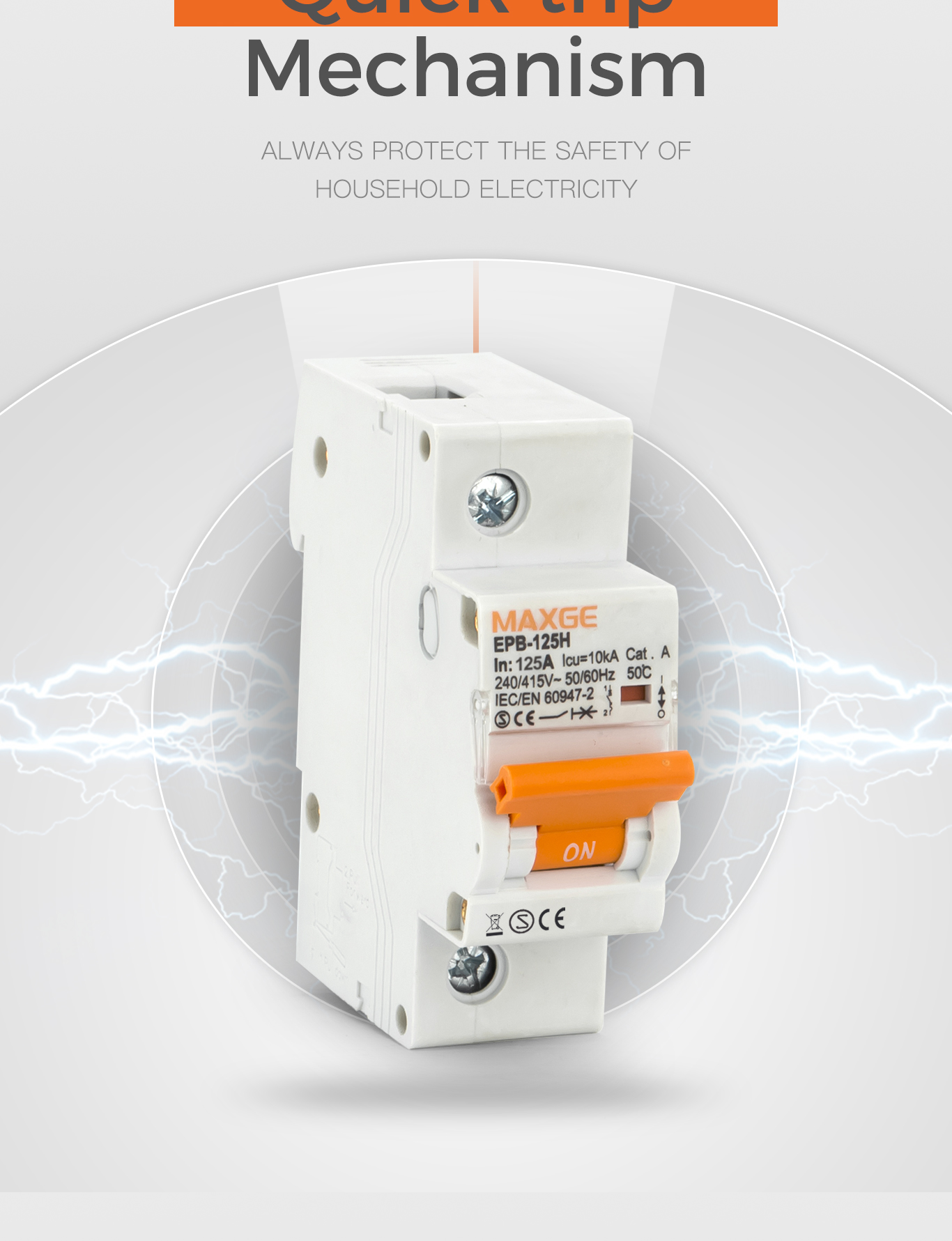

The MAXGE High Rated HR MCB Nc-125h Miniature Circuit Breaker is designed for high-voltage load environments, providing reliable protection and control for high-current applications. This circuit breaker offers overload and short-circuit protection, ensuring safety and efficiency in distribution lines. The EPB125H Series is suitable for manual control and segmentation, making it an ideal choice for both industrial settings and large-scale construction projects. With its robust design and no derating feature, it guarantees consistent performance under demanding conditions.

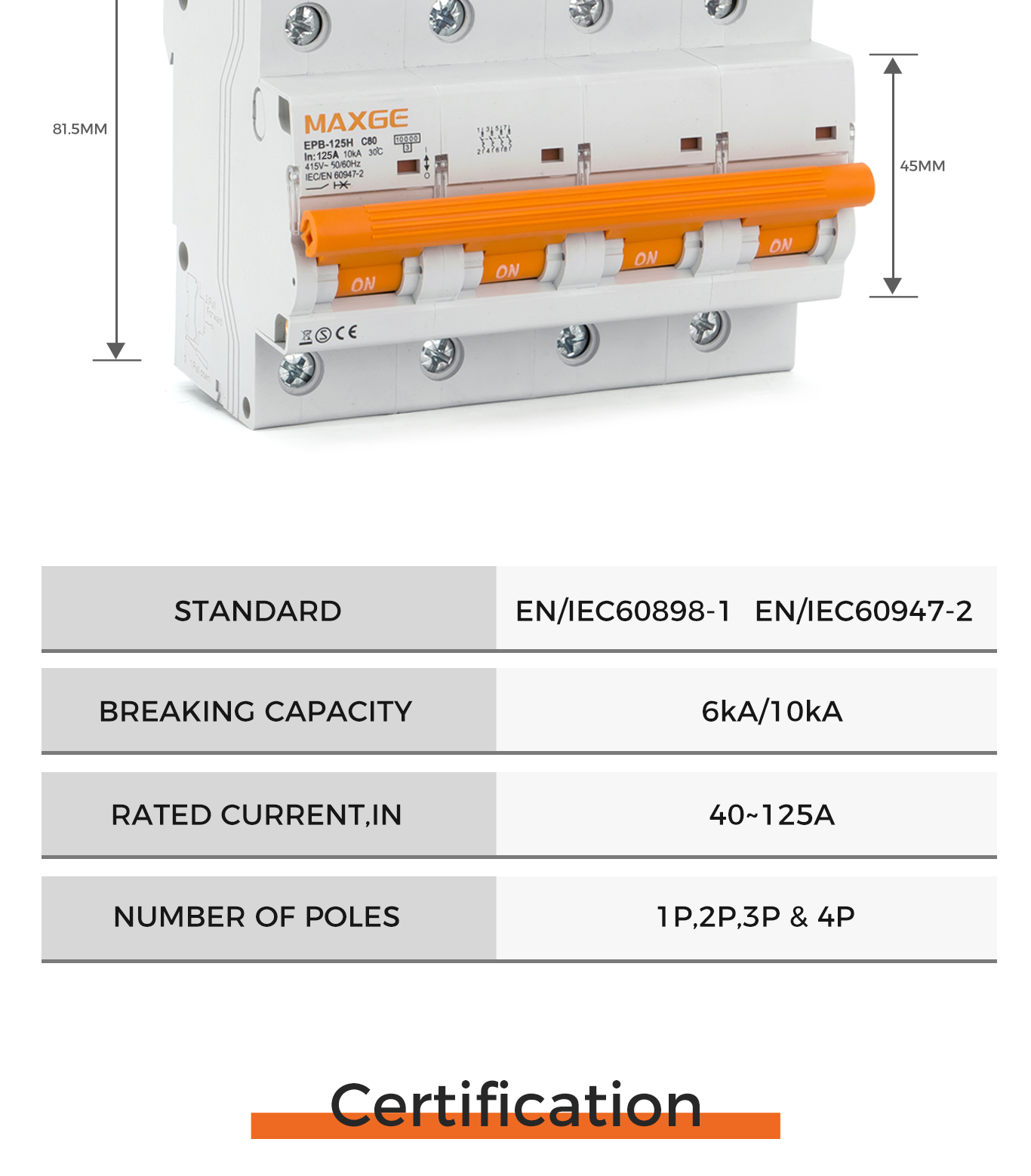

Specifications
| Attribute | Details |
|---|---|
| Standard | Confirming to EN/IEC 60898-1/EN/IEC60947-2 |
| Number of poles | 1P, 2P, 3P, 4P |
| Breaking capacity | 6kA/10kA |
| Type of trip | Thermal/magnetic release |
| Protection | Against overload and short circuit |
| Type of terminal | Pin type |
| Rated current In | 32, 40, 50, 63, 80, 100, 125A |
| Terminal capacity | Flexible cables: 1.5 to 35mm² Rigid cables: 1 to 50mm² |
| Rated voltage | 1 pole 230/400V AC 50/60Hz 2, 3, 4 pole 400V AC 50/60Hz |

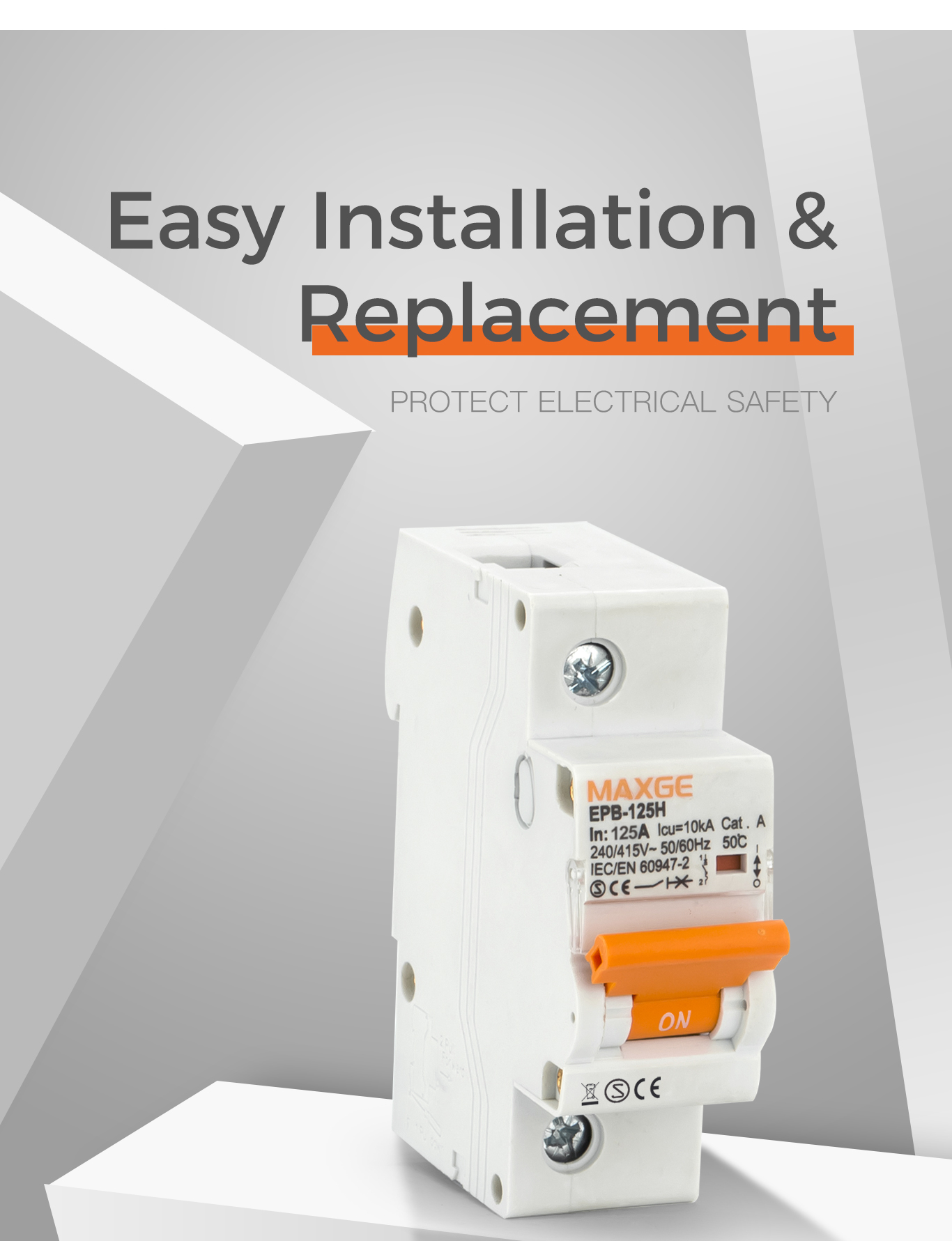

| Installation | Mounting on 35mm DIN rail |
| Characteristic | Thermal operating limit: (1.13-1.45)x ln (1.05-1.30)x ln Magnetic operating: B: (3-5)x ln (8-12)x ln C: (5-10)x ln D: (10-20)x ln |

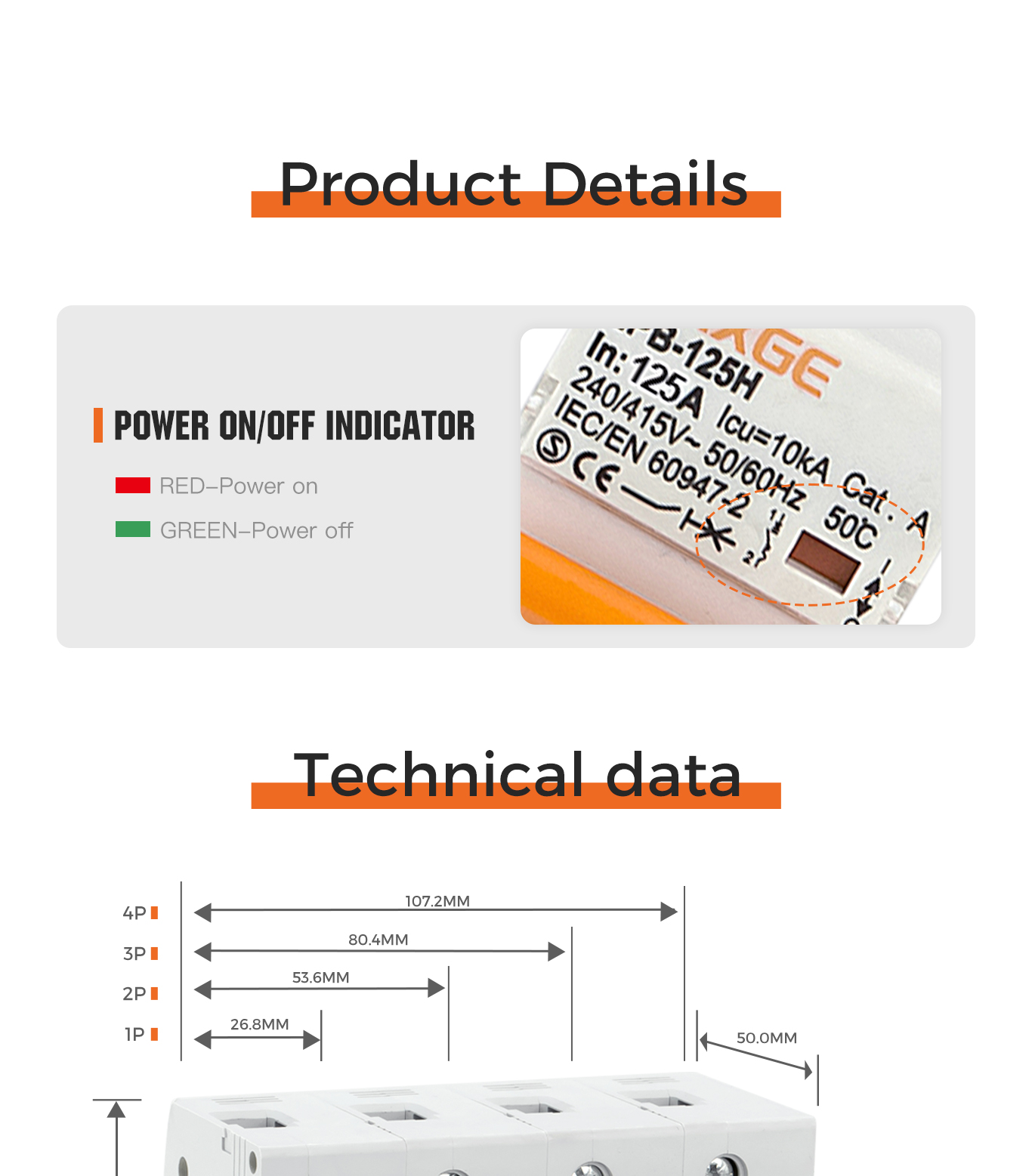

| Width | 27mm per pole |
Additional Information
This circuit breaker is essential for ensuring electrical safety in environments with high current demands. It is recommended to follow proper installation guidelines to guarantee optimal performance and longevity.
