Description

The MPPT (Maximum Power Point Tracking) Solar Charge Controller is designed to optimize the efficiency and longevity of your solar power system. This advanced controller features an automatic recharging process that ensures peak performance from your solar array while prolonging battery life. Available in various models (20A, 30A, 40A, 50A, 60A, 100A, 120A), this versatile unit operates seamlessly across multiple voltages including 12V, 24V, and 48V.

Utilizing the latest MPPT algorithm, this controller achieves an impressive MPPT tracking efficiency of up to 99% and a conversion efficiency of up to 98%. Thanks to its TI DSP chip and 12-bit accuracy, users can rely on precise tracking for optimal energy collection.

Designed to accommodate a wide PV input voltage range, the controller allows users to customize their solar panel configurations based on unique conditions. With functionalities such as fast charging, absorption charging, and floating charging, it maintains battery health and performance effectively. Additionally, it supports various battery types including lead-acid, gel, and lithium batteries.

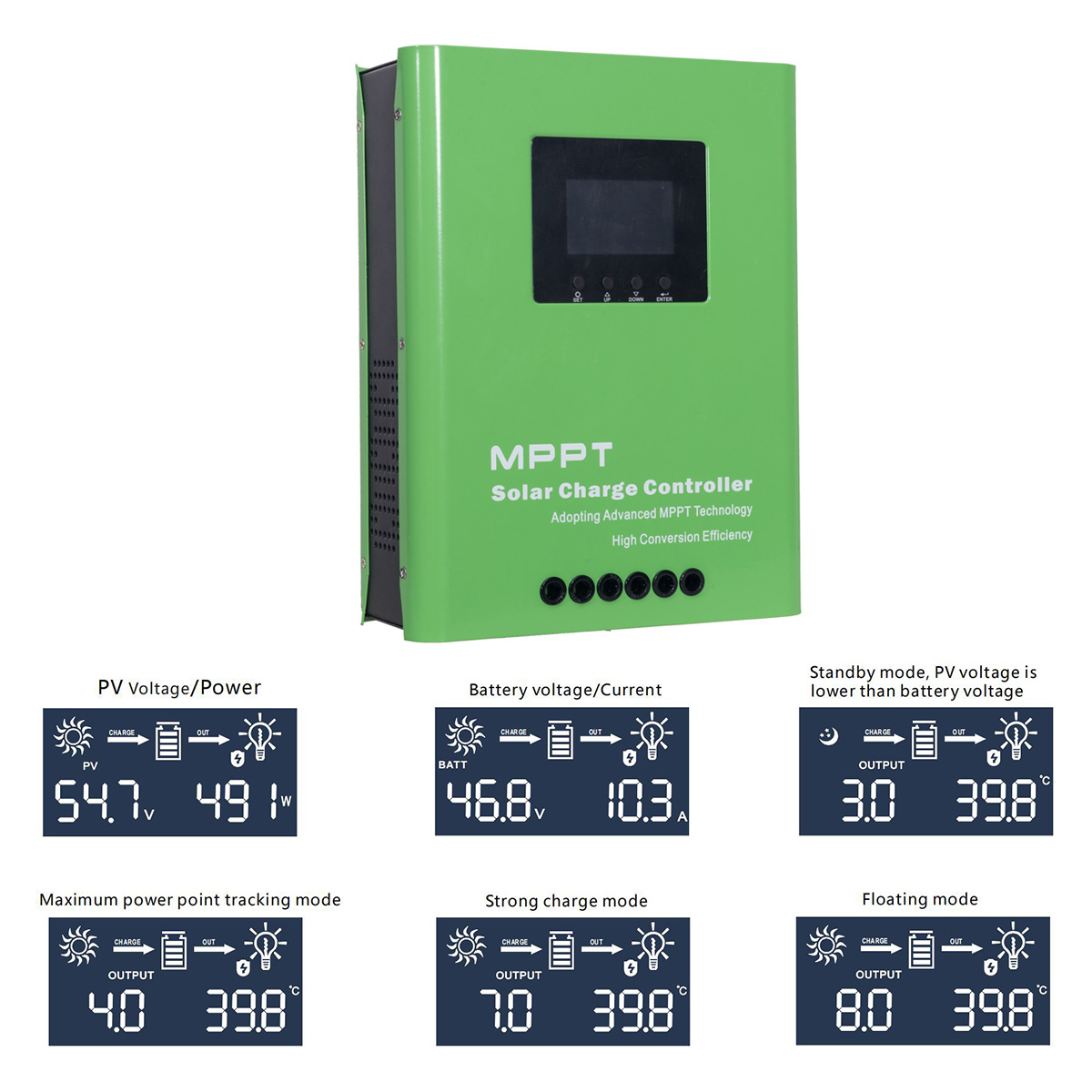

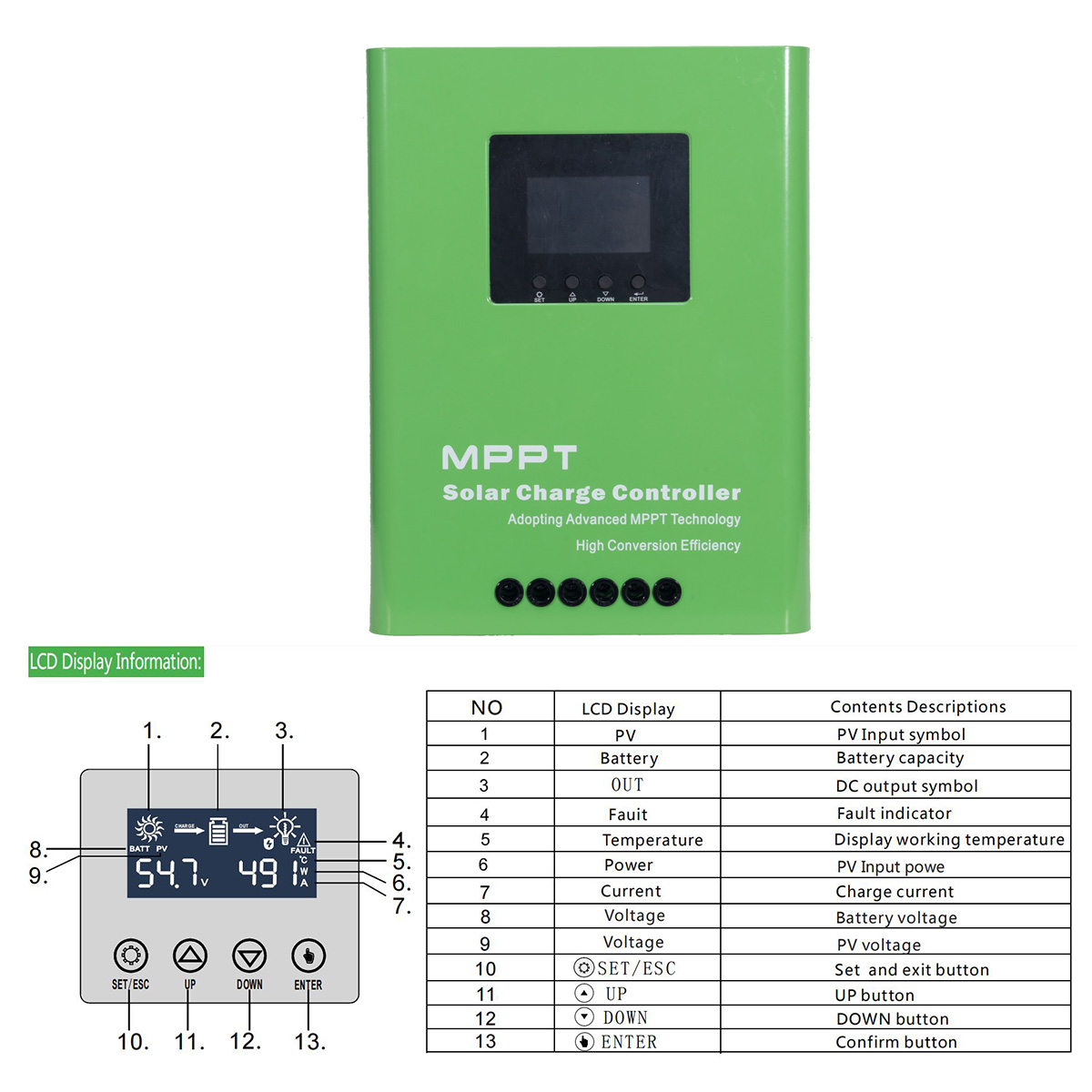

The user-friendly display provides real-time information including PV voltage, PV power, battery voltage, charging current, working temperature, and fault codes. Safety features such as overcharge, over-discharge, overload, open circuit protection, over-temperature protection, and short circuit automatic protection ensure reliable operation.

Specifications

Additional Information

• Display includes PV voltage, PV power, battery voltage, charging current, working temperature, and fault codes.
• Fast charging capabilities ensure efficient energy collection and battery maintenance.
