MBT/MBTH HEAT SHRINKABLE BUSBAR INSULATION TUBING
Inquire NowDescription

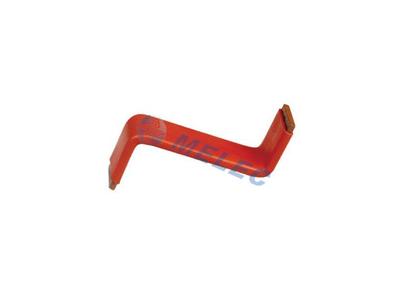

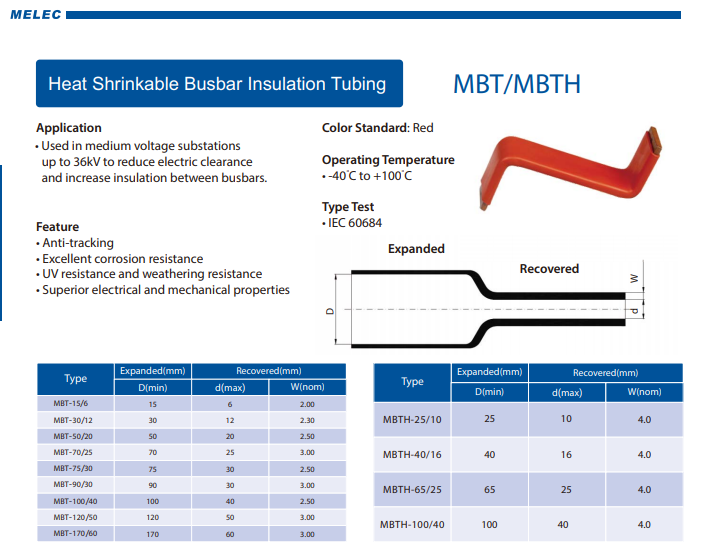

The MBT/MBTH Heat Shrinkable Busbar Insulation Tubing is an innovative solution designed for medium voltage substations, capable of operating up to 36kV. This tubing effectively reduces electric clearance and enhances insulation between busbars, ensuring optimal performance in demanding environments.
Engineered with advanced materials, this insulation tubing boasts exceptional anti-tracking capabilities, excellent corrosion resistance, and robust UV and weathering resistance. With superior electrical and mechanical properties, the MBT/MBTH tubing ensures long-lasting reliability and safety in electrical applications.
The standard color for this product is red, making it easily recognizable in various installations.
Specifications
| Attribute | Details |
|---|---|
| Application | Used in medium voltage substations up to 36kV |
| Operating Temperature | -40°C to +100°C |
| Type Test | IEC 60684 |
| Color Standard | Red |
| Features |
|
Additional Information
No additional information is provided.
