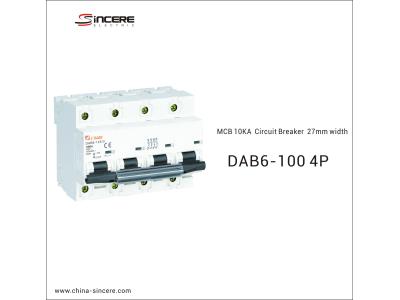

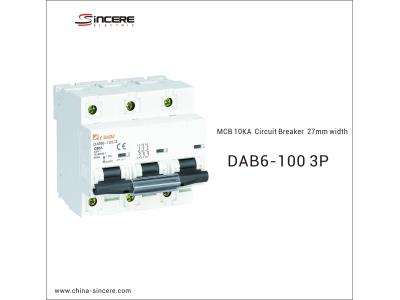

MCB 10KA Circuit Breaker 27mm Width
Inquire NowDescription
The DAB6-100 series Miniature Circuit Breaker (MCB) is a compact and reliable solution for the protection of electrical circuits. With a width of just 27mm, this MCB is designed to fit seamlessly into standard DIN rail systems, making it ideal for both domestic and industrial electric installations. Featuring advanced overload and short circuit protection, the DAB6-100 ensures the safety and stability of distribution and group systems that handle both active and inductive loads. This device operates within a wide range of currents from 10A to 100A, making it versatile for various applications.
Key advantages include an independent contact position indicator for immediate status verification, a robust DIN rail latch with a double fixed position for enhanced stability, and a wide operating temperature range from -40°C to +50°C. The design also emphasizes user-friendly installation and maintenance, with features such as notches on terminal clamps to reduce thermal losses and a higher switching capacity of 10kA, suitable for incoming circuit breaker setups.
Specifications
| Feature | Specification |
|---|---|
| Width | 27 mm |
| Current Range | 10A – 100A |
| Switching Capacity | 10 kA |
| Operating Temperature | -40°C to +50°C |
| Protection Degree | IP20 |
| Mounting | DIN35 rail |
| Rated Voltage | 230/400 V AC |
| Rated Frequency | 50-60 Hz |
| Rated Insulated Voltage | 500 V |
Additional Information
- Service Life: Mechanical – 8500 cycles (Standard – 4000 cycles)
- Wiring Capacity: 1 – 35 mm²
- Humidity Resistance: Class 2
- Installation Environment: Avoid shock and vibration
