Description

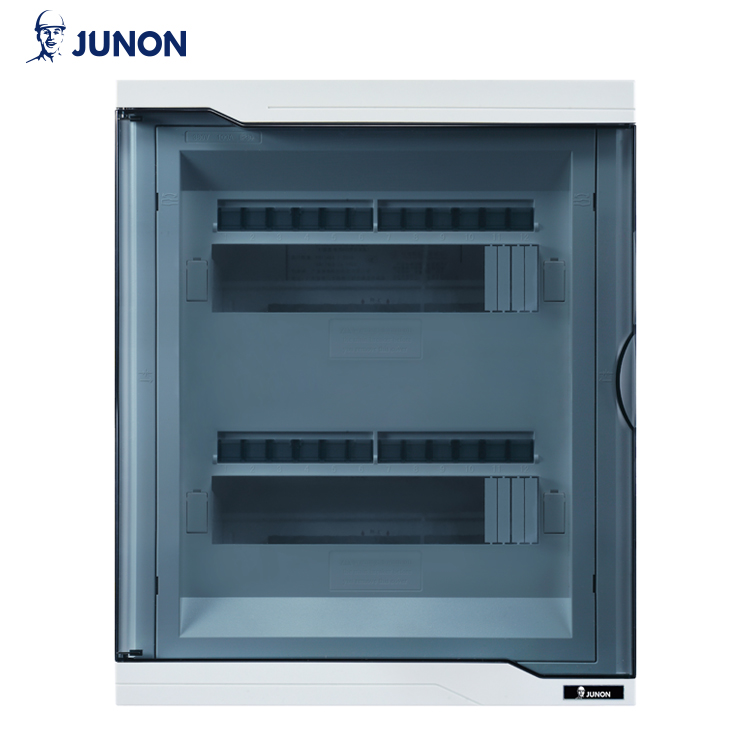

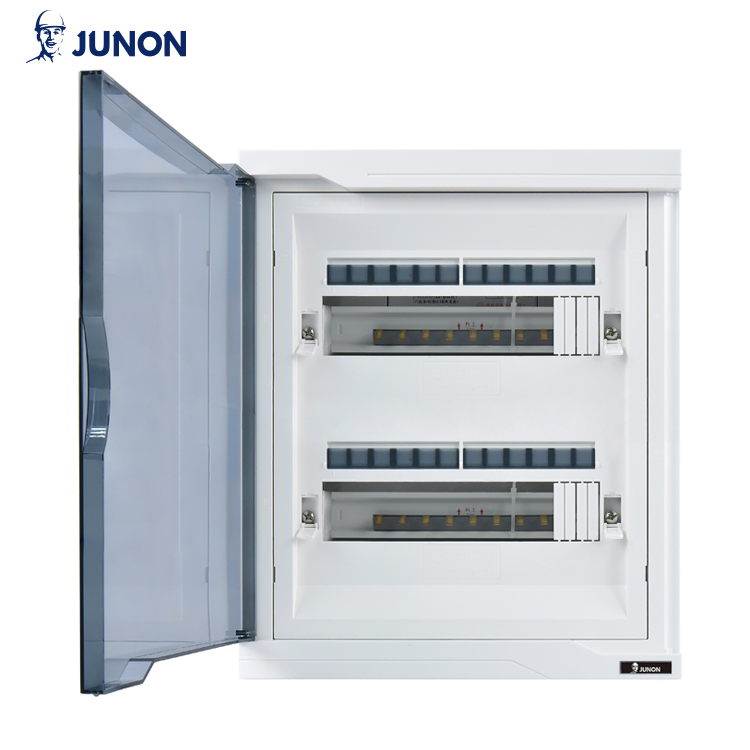

The MCB Enclosure by JUNON serves as the central hub for electrical circuits within your home, ensuring efficient power distribution. Designed to accommodate between 100 and 200 amps, this enclosure is the backbone of your electrical system, channeling power from the main supply cable to various breakers and circuits for lights and outlets. With a robust construction and a user-friendly design, it is ideal for both residential and commercial applications.
Specifications
| Attribute | Details |
|---|---|
| Name | MCB Enclosure |
| Model No. | DX18-M24TWB |
| Number Of Ways | 24 Way |
| Sub Incomer | MCB |
| Incomer | MCB |
| Installation | Surface Mounted |
| Rated Voltage | 230/400V~ |
| Current Rating | 125A |
| Rated Frequency | 50/60Hz |
| Trade Mark | JUNON /OEM |
| International Protection Rating | IP30 |
| Opening Way | Open Sideward 180° |
| Package | 5PCS/CTN |
| Fire Resistant And Abnormal Heat Capacity | 650℃/30s (real wall installation) |
Additional Information
Safety Reminder:
- We recommend using a competent person for installation.
- Only suitable for indoor installations.
- Before carrying out any electrical work, isolate the mains power supply & refer to the fitting instructions.
- For safe installation & connection ensure that the earth is connected.
- Wire/wiring colors are in accordance with the current IET Wiring Regulations.
