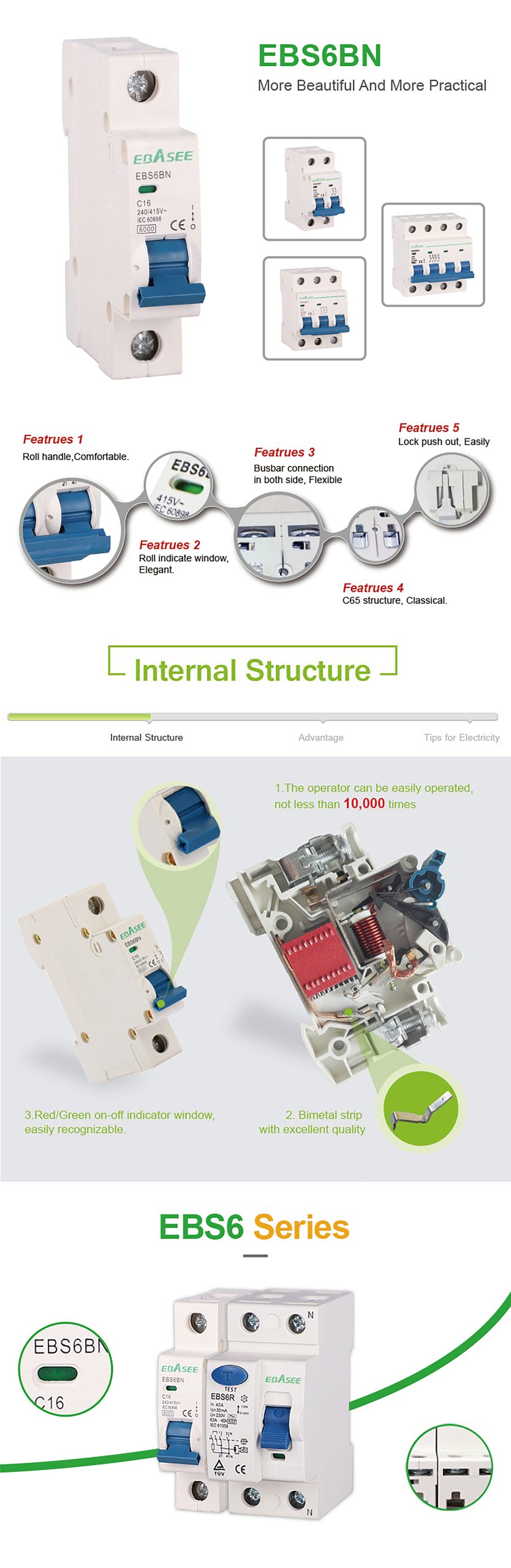

MCB Miniature Circuit Breaker circuit breaker EBS6BN
Inquire Now
EBS6BN miniature circuit breaker is applied to the low-voltage terminal power distribution system with AC 50/60Hz, rated voltage 230/400V.
Short-circuit, over-load, and isolation
ON/OFF status indicator
Double wiring terminals could be connected cable, U type, and needle type busbar
Easy installation and changing on 35mm DIN-rail
Miniature circuit breaker
Function
EBS6BN miniature circuit breaker is applied to the low-voltage terminal power distribution system with AC 50/60Hz, rated voltage 230/400V.
Short-circuit, over-load, and isolation
ON/OFF status indicator
Double wiring terminals could be connected cable, U type, and needle type busbar
Easy installation and changing on 35mm DIN-rail
Technical Parameter
|
Model name |
EBS6BN |
|
|
Standard |
IEC60898-1 |
|
|
Poles |
1P, 2P, 3P, 4P, 1P+N, 3P+N |
|
|
Rated current In(A) |
1~63Amp |
|
|
Rated voltage Un(V) |
240/415V AC |
|
|
Tripping characteristic |
B, C, D |
|
|
Breaking capacity |
6,000A |
|
|
Protection level |
IP20 |
|
|
Electrical life |
15,000 times |
|
|
Installation |
Installed on 35mm DIN-rail |
