Description
The MCCB Bimetal Lug is an essential component designed for the seamless transition connection of aluminum cables or aluminum alloy cables with the copper ends of electrical equipment, specifically for low voltage applications. This high-quality lug is engineered to ensure reliability and efficiency in electrical connections, making it a crucial part of any electrical setup.
Application: Perfectly suited for low voltage systems, the MCCB Bimetal Lug facilitates a strong and secure connection between different types of cables, enhancing the overall performance of electrical systems.
Material: Constructed with a combination of aluminum (≥ 99.5%) and copper (≥ 99.9%), ensuring durability and excellent conductivity.
Features:
- Central palm design for optimal connectivity.
- Oil blocking structure to protect connections.
- Friction welded for enhanced strength.
- Narrow palm design, ideal for equipment with limited space, such as connections of MCCB and motors.
- Clear markings on the barrel to indicate the correct crimping location, compatible with Melec standard crimping die.
- Prefilled with jointing compound for easy installation.
Standard: Complies with IEC61238-1:2003.

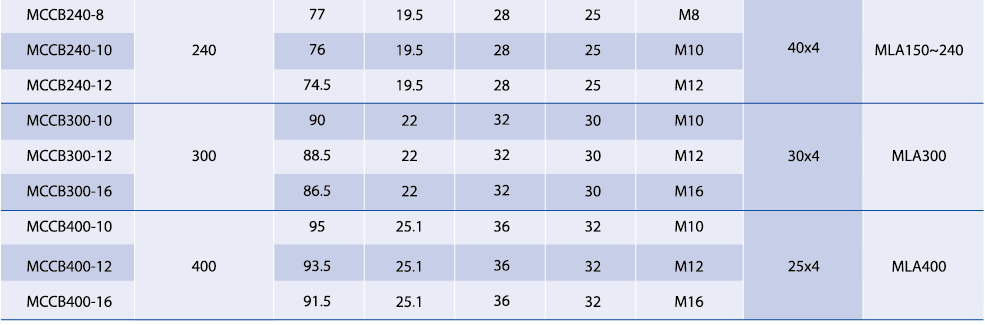

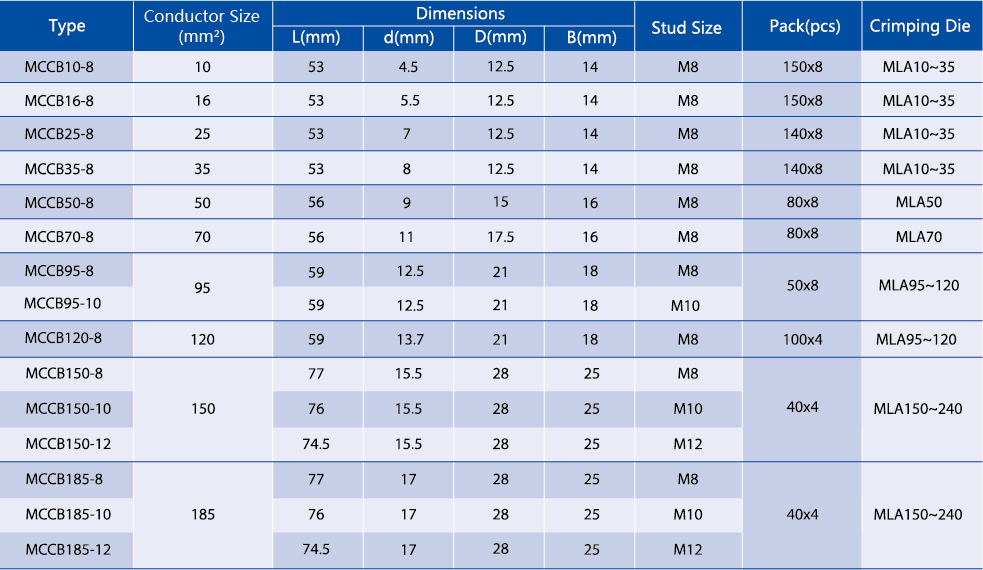

Specifications
| Attribute | Details |
|---|---|
| Material | Aluminum ≥ 99.5%, Copper ≥ 99.9% |
| Application | Low voltage electrical connections |
| Standard | IEC61238-1:2003 |
Additional Information
For optimal performance, ensure proper installation according to the specifications and guidelines provided. Regularly inspect connections to maintain system integrity.
