MCCB BIMETAL LUG
Inquire NowDescription
The MCCB Bimetal Lug is an essential component designed for the efficient transition connection of aluminium cables or aluminium alloy cables to the copper ends of electrical equipment in low voltage applications. Crafted from high-quality materials, it ensures reliable performance and durability. With a composition of Al ≥ 99.5% and Cu ≥ 99.9%, this bimetal lug features a central palm and an innovative oil-blocking structure that enhances its functionality.
The friction-welded design allows for a narrow palm, making it especially suitable for equipment with limited contact areas, such as the connections between MCCBs and motors. Clear markings on the barrel indicate the correct crimping location, ensuring a precise connection when used with the Melec standard crimping die. Additionally, it comes prefilled with jointing compound for added convenience and reliability.

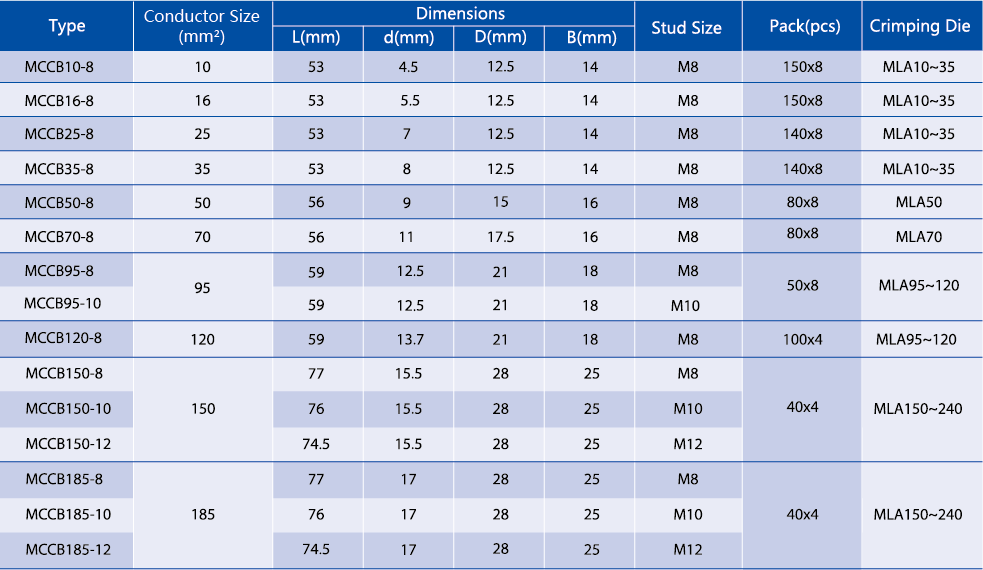

Specifications
| Property | Details |
|---|---|
| Material | Aluminium (Al ≥ 99.5%), Copper (Cu ≥ 99.9%) |
| Application | Transition connection of aluminium cables with copper ends in low voltage |
| Features |
|
| Standard | IEC61238-1:2003 |
Additional Information
For optimal performance, ensure that the bimetal lug is used in accordance with the provided crimping standards and guidelines.
