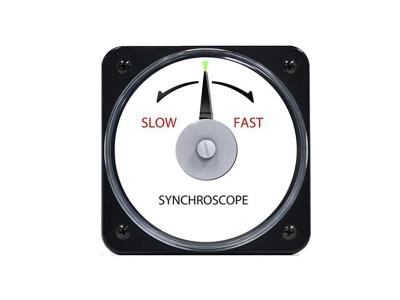

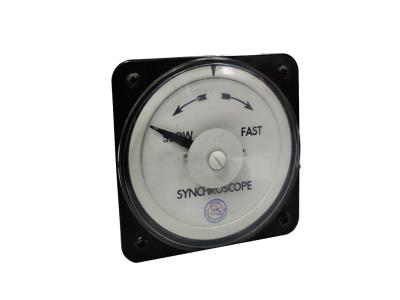

MCS 106452 Digital Synchroscope Meter
Inquire NowDescription
The MCS 106452 Digital Synchroscope Meter is a cutting-edge instrument designed for the electrical instrumentation industry, enabling users to measure and display the synchronization status between devices. This meter is essential for identifying synchronization issues by monitoring key parameters such as current, voltage, and frequency. Featuring an intuitive color touch screen, it provides real-time synchronization status and alarm functions, allowing for immediate corrective actions to be taken. Renowned for its high precision, user-friendly interface, and robust reliability, this synchroscope meter is widely utilized in power systems, industrial automation, and renewable energy sectors.
Features
- Color touch screen for easy navigation
- Easy to read display with graphical analysis
- Durable steel casing for longer life span
- Potential free relay contact
Applications
- Data synchronization between databases
- Data synchronization across different platforms
- Real-time data synchronization with analysis platforms
- Real-time analysis and report generation
- Data backup and recovery
- Data synchronization between applications for sharing and integration
- Synchronization between different cloud service providers
- Achieving data consistency in multi-cloud environments
Specifications
| Attribute | Value |
|---|---|
| Phase angle difference (Δθ) | ±2° |
| Voltage difference (Δv) | ±1% of nominal value |
| Frequency difference (Δf) | ±0.15 Hz |
| Ambient temperature | 23°C ±2°C |
| Nominal input voltage (ac rms) | 100-500 V |
| Max continuous input voltage | 600 V |
| Overload withstand | 2x nominal voltage for 1 second, repeated 10 times at 10 second intervals |
| Frequency measuring range | 45-65 Hz |
| Auxiliary voltage and burden | 100-500 V AC/DC, 45-65 Hz, 8 VA |
| Response time to step input | 1 second (approx.) |
| Operating temperature | -10 to +55°C |
| Storage temperature | -20 to +65°C |
| Relative humidity | 0… 95% non-condensing |
| Warm-up time | Minimum 3 minutes |
| Shock | 15g in 3 planes |
| Vibration | 10…150….10 Hz, 0.075mm amplitude |
| Temperature coefficient | 0.05%/°C |
