MECHANICAL ALUMINIUM LUG
Inquire NowDescription
The SJLL Mechanical Aluminium Lug is designed for seamless transition connections between copper cables, aluminium cables, or aluminium alloy cables and copper ends of electrical equipment in low voltage applications. This product stands out due to its wide application range, making it suitable for various electrical installations.
Constructed from high-strength aluminium alloy, the lug ensures durability and reliability in performance. The bolts are also made of aluminium alloy, and the surface features a tin plating that enhances corrosion resistance and conductivity.
One of the key advantages of this product is that it eliminates the need for crimping tools; all that is required is a socket spanner or wrench for installation. The torque-controlled shear head bolts prevent damage to conductors and improve the stability of the connector’s performance. Additionally, the inner surface of the lug is threaded, which provides superior electrical and mechanical performance, and it comes prefilled with jointing compound for added convenience.
This product adheres to the IEC 61238-1:2003 standard, ensuring it meets rigorous safety and performance guidelines.
Specifications
| Attribute | Details |
|---|---|
| Material | High strength aluminium alloy (Body), Aluminium alloy (Bolts) |
| Surface Treatment | Tin plated |
| Installation Tools Required | Socket spanner or wrench |
| Standard Compliance | IEC 61238-1:2003 |
Additional Information

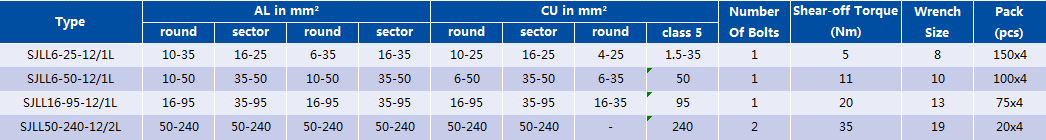

- Note: Shear-off torque is a reference during installation.
- Depending on different conductor materials or types, indicated values may differ from test values according to IEC 61238-1.
- The use of class 5 conductors must be approved by MELEC.
