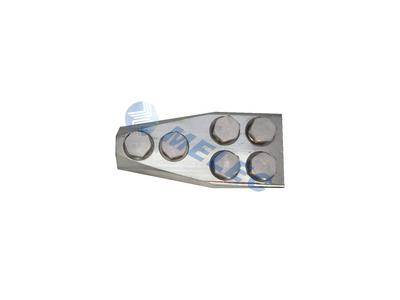

MECHANICAL TRANSITION CONNECTOR
Inquire NowDescription
The Mechanical Transition Connector is a versatile solution designed for the intermediate connection of copper cables, aluminum cables, and aluminum alloy cables in medium voltage applications. Featuring a unique design with different sizes on both sides, this connector is especially suitable for scenarios where there is a significant size difference between two conductors. Its innovative construction eliminates the need for crimping tools, allowing for easy installation with just a socket spanner or wrench.
This connector is constructed from high-strength aluminum alloy and is tin plated for added durability. Noteworthy features include an oil-blocking structure, torque-controlled shear head bolts that ensure stable performance without damaging the conductor, and a threaded inner surface that provides outstanding electrical and mechanical performance. Additionally, it comes pre-filled with jointing compound and includes inserts for smaller conductors, optimizing stock requirements.

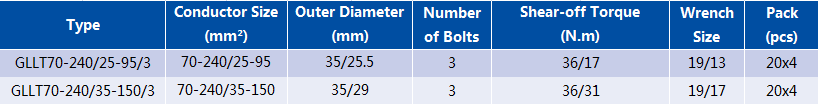

Specifications
| Attribute | Details |
|---|---|
| Material | High strength aluminum alloy (Body and Bolts) |
| Surface Treatment | Tin plated |
| Standard Compliance | IEC 61238-1:2003 |
Additional Information
- Note: Shear-off torque is only a reference during installation.
- Wide application range suitable for various medium voltage connections.
