Mechanism interlocking device shutter mechanism for 800mm 1000mm width high voltage switch

Specifications

• 1.Type:5xS.320.010/011/012

• 2.Material: iron and surface zincing

• 3.Direction:offside

• 4.High voltage switchgear accessories

Description

• 1.Application: Used in the switchgear, the width of the switch can be 800mm or 1000mm.

• 2.The rated voltage with 12kV, 24kV etc.

• 3.The installation drawing with the valve mechanism. It is two types on it, please have attention.

• 4.If it is not clear enough, contact for details.It will be convenient for this.

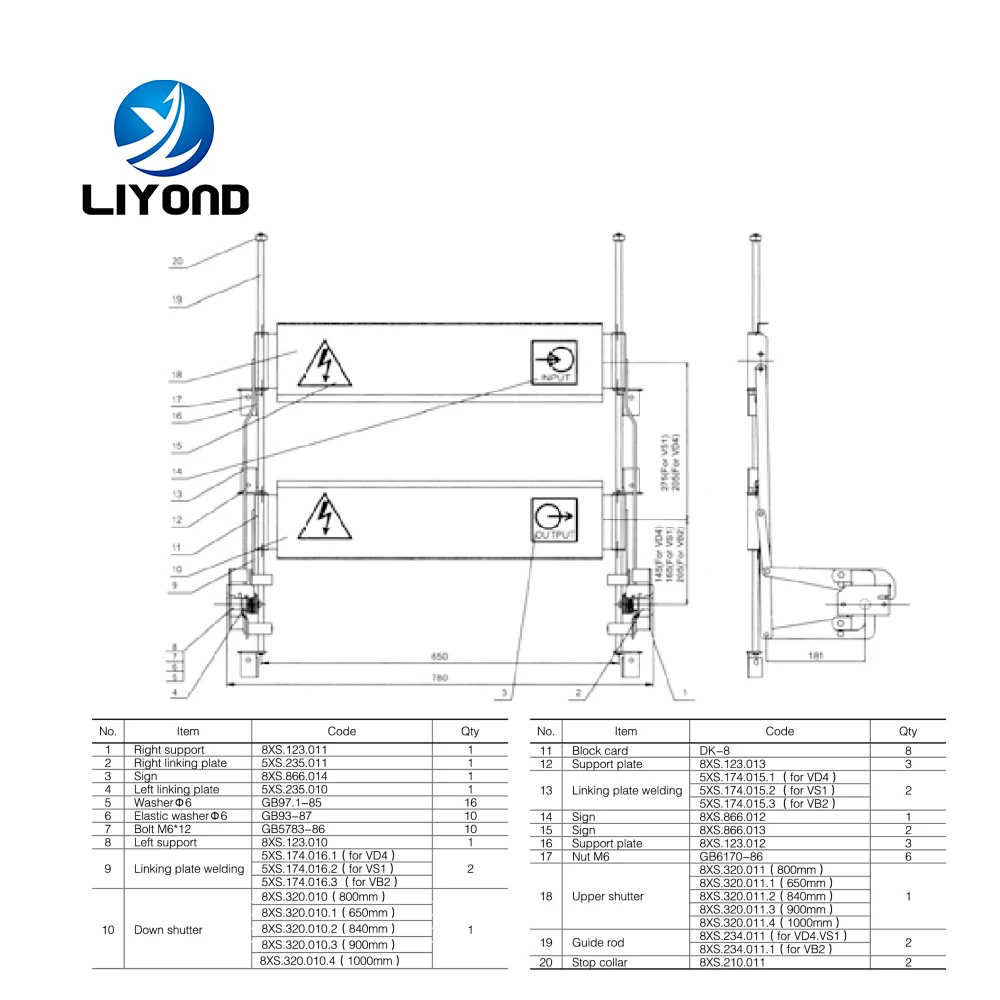

Drawing
