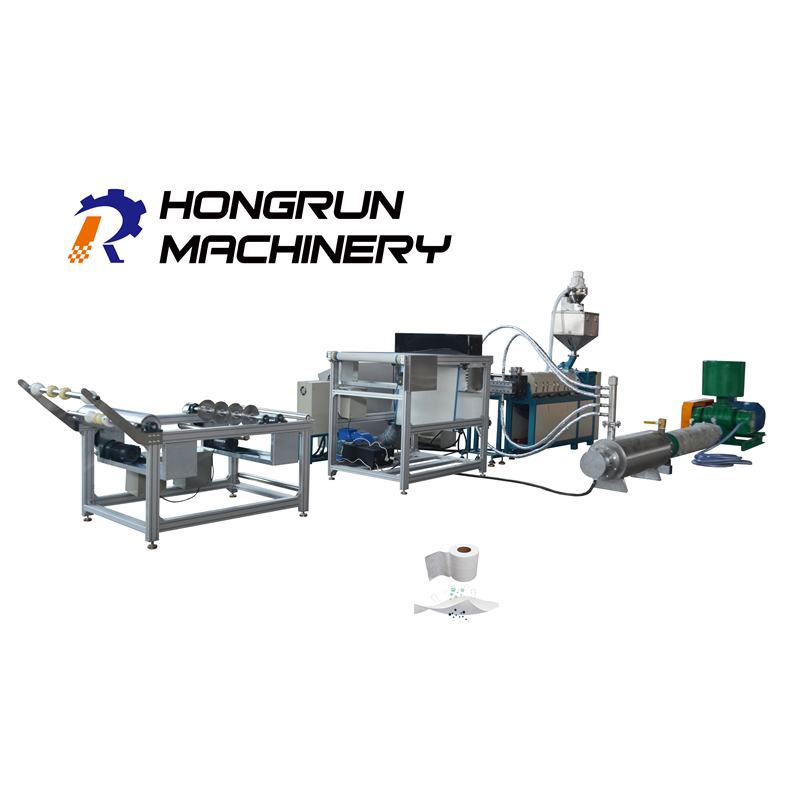

Meltblown cloth production line
Inquire NowDescription
The Meltblown Cloth Production Line is a state-of-the-art manufacturing solution designed to produce high-quality nonwoven fabrics from polypropylene (PP) and polyester (PET). This advanced equipment specializes in creating ultra-fine fiber materials that are known for their excellent absorption and elasticity. With a robust design, the Hongrun meltblown equipment ensures stable operation, high output, and efficiency, resulting in nonwoven fabrics that exhibit even strength, superior air permeability, and are both non-toxic and odorless, adhering to environmental standards.
The production process begins with a screw extruder that feeds the polypropylene into a series of components including a filter, metering pump, and heating system. The polymer melt is then subjected to high-speed hot air to create extremely fine fibers, which condense onto a porous substrate, ultimately forming a nonwoven fabric through self-adhesive reinforcement.
This versatile equipment is ideal for various applications, including:
- Hygienic materials: Baby diapers, adult incontinence pads, sanitary napkins, and cleaning products.
- Medical supplies: Surgical masks, disposable clothing, surgical curtains, and shoe covers.
- Technical engineering: Applications in civil engineering, construction, agriculture, and the automotive industry.
- Packaging supplies: Shopping bags, rice bags, tea bags, and clothing packaging.
- Household items: Spring wraps, bedding, and seat covers.
Specifications
Main Accessories | Basic Parameters | Specification | Details |
---|---|---|---|
Extruder | 65 type | Total Installed Power | About 130kW |
Heater | Air heater | Finished Product Width | 600mm |
Air Compressor | 5~6 m3/min | Finished Product Weight | 8~150g/m3 |
Feeding Machine | Microcomputer automatic vacuum suction machine | Maximum Diameter of the Roll | 580mm |
Slitting Machine | Online slitting | Output | 15~20kg/h |
Winding Equipment | Net curtain winding | Power Requirements | Three-phase wireless |
Cooling Method | Air cooling | Equipment Size | 7m x 10m x 3m |
Filter | Hydraulic automatic screen changer | Filter Grade | ≥95% |
Electric Control Cabinet | One large and one small | Total Weight | 3 tons |
