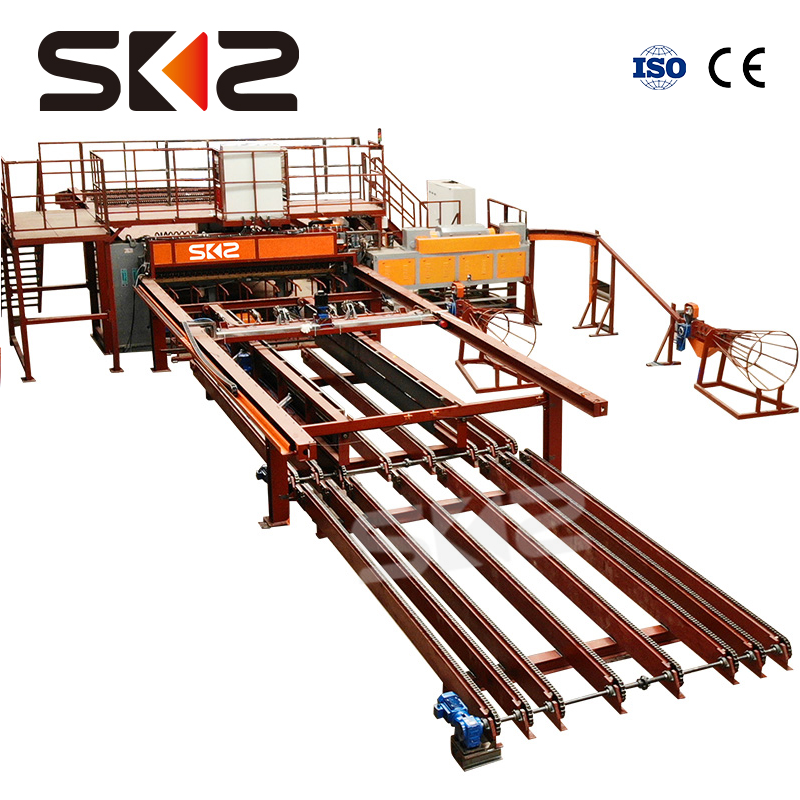

Mesh welding machine

Inquire Now

Description

The Mesh Welding Machine is an advanced industrial solution specifically designed for high-efficiency mesh production. This machine excels in precision and output, making it ideal for processing both standard mesh and perforated mesh. Equipped with the ability to handle various materials such as low carbon cold-rolled wire and galvanized wire, it offers versatility in applications. Its robust design ensures minimal operational failures while significantly saving energy and reducing consumption. The machine’s capability to produce high-quality cross-welding of hot-rolled ribbed bars, cold-rolled ribbed bars, round bars, and round cold-drawn bars makes it an essential tool for manufacturers looking for reliability and performance.

Specifications

Working Specifications Details
Material Pre-cut low carbon cold-rolled wire or cold-drawn uncoated wire, galvanized wire
Max. mesh width (cross wire length) 3,300 [mm]
Max. outmost line wire dimension 3,100 [mm]
Max. mesh length (line wire length) 12 [m] in panel
Line wire spacing 100, 150, 200 mm
Cross wire spacing ≥100 [mm], programmable adjustable
Line wire diameter Φ5 – Φ12 [mm]
Cross wire diameter Φ5 – Φ12 [mm]
Max. welding capacity Φ12 + Φ12 [mm]
Max. welding speed 50 – 70 [strokes/min] (cross wire no°/min)
Air consumption ≥0.8Mpa, 3m3/min
Cooling water consumption ≥0.3Mpa
Electronic Parts Specifications Details
Numbers of welding transformer 16
Numbers of electrode 32
Power supply voltage 380 [V] – 50 [Hz] – 3 [Phase]
Control voltage DC24 [V]
Total installed power 16 × 160 [KVA]
Machine overall dimension 40m(L) × 5.5m(W) × 2.5m(H)
Machine overall weight 23,000 Kg

Additional Information

  • Large output, high precision, and convenient modification.
  • Low operating failure rate and strong energy-saving capabilities.
  • High-quality cross-welding of various types of bars.
