Description

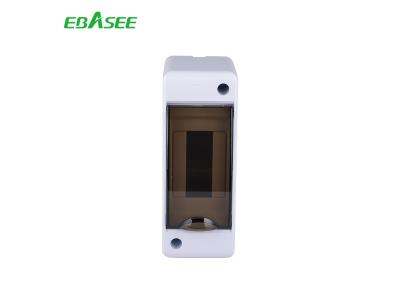

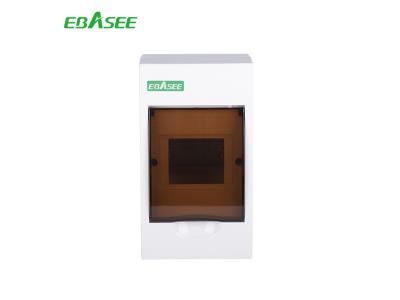

The EBS5D series switch distribution box is designed for efficient electric energy management. Ideal for AC 50Hz (or 60Hz) applications, it supports a rated operating voltage of up to 400V and a rated current of 63A. This robust distribution box is equipped with various modular electric components that ensure reliable functions including distribution, control protections (such as short circuit, overload, earth leakage, and over-voltage), as well as signal handling and measurement for terminal electric appliances. Its transparent door allows for easy monitoring and access.
Specifications
| Configuration | Module Number | Number Bar Holes | Earth Bar Holes | Type Code |
|---|---|---|---|---|
| 4 ways | 1 | 4Xφ5 | 3Xφ5 | EBS5DS-4 |
| 6 ways | 2 | 6Xφ5 | 3Xφ5 | EBS5DS-6 |
| 8 ways | 3 | 8Xφ5 | 4Xφ5 | EBS5DS-8 |
| 12 ways | 4 | 12Xφ5 | 6Xφ5 | EBS5DS-12 |
| 18 ways | 5 | 18Xφ5 | 9Xφ5 | EBS5DS-18 |
| 24 ways | 6 | 24Xφ5 | 13Xφ5 | EBS5DS-24 |
| 36 ways | 7 | 36Xφ5 | 13Xφ5 | EBS5DS-36 |
Additional Information
- Max Rated Current: 63A
- Rated Operating Voltage: Up to 400V
- Protection Functions: Short circuit, overload, earth leakage, over-voltage
