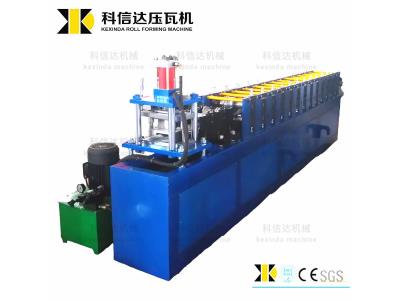

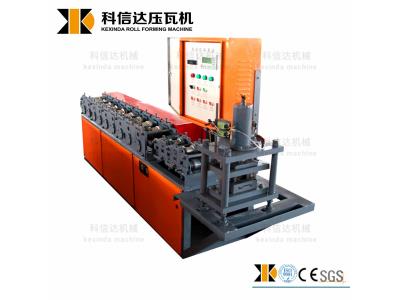

Metal/iron sheet roller shutter door making machine roll forming machine

Inquire Now

Product Description

The Metal/Iron Sheet Roller Shutter Door Making Machine is a state-of-the-art roll forming machine designed to efficiently produce high-quality roller shutter doors. This machine is equipped with advanced components that ensure precision and durability, making it an ideal choice for manufacturers in the construction and security industries. The robust construction and reliable performance of this machine enable it to handle various thicknesses and materials, including color steel coils.

Specifications

Parameter Details
Main Motor Power 3kw, 3 phase
Hydraulic Motor Power 3kw
Hydraulic Pressure 10-12MPa
Voltage 380V /3phase/ 50 HZ (or as your requirement)
Control System PLC Delta Inverter
Main Frame 300mm H-Beam
Backboard Thickness 14mm
Chain Size 20mm
Feeding Material Color steel coils
Feeding Thickness 0.3-1.2mm
Productivity 8-12m/min
Roll Station 11
Roller Diameter 70mm
Roller Material 45# steel
Cutter Material Cr12, quenched
Cr-Plating Size 0.05mm
Overall Size 3000×800×1000mm
Total Weight 2T
Components Manual Uncoiler, Guiding Platform, Coil Strip Leveler, Main Machine of Roll Forming, Electric-Motor, Cutting Device, Hydraulic Station, PLC Control, Supporter Table

Additional Information

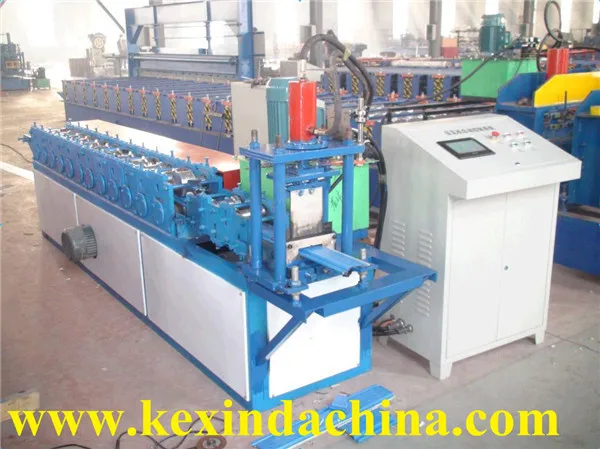

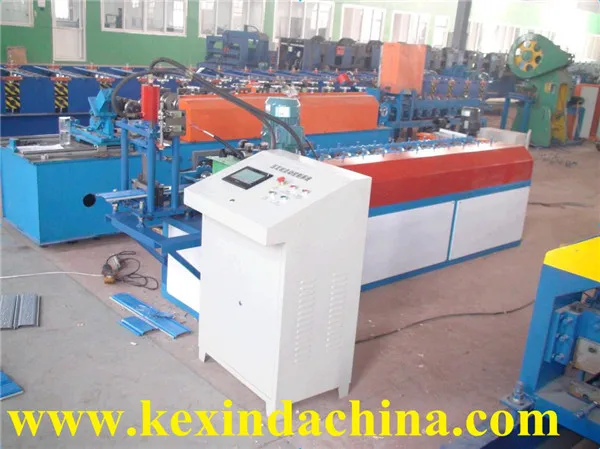

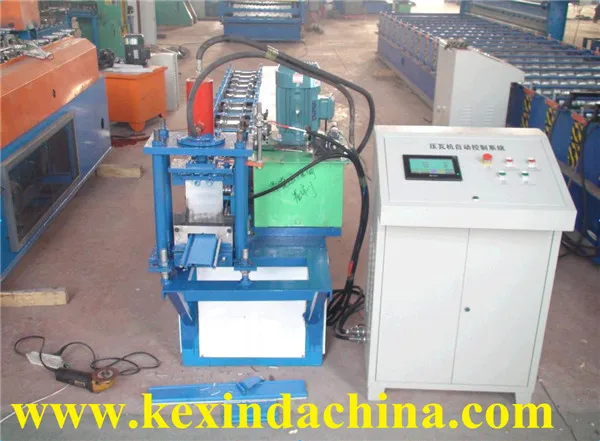

For further reference, please see the images of the garage door roll forming machine below:
