Metal Profile C U Roll Forming Machine,Aluminium Section Manufacturing Machinery

Inquire Now

Product Description

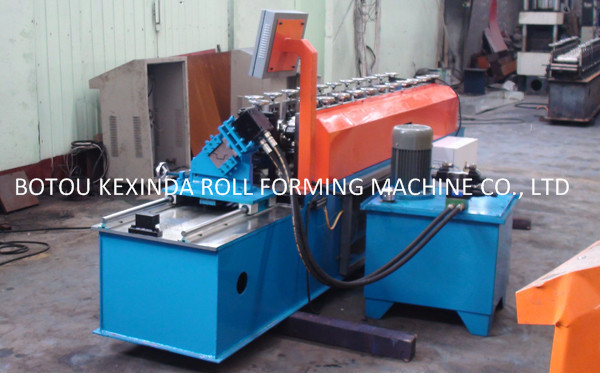

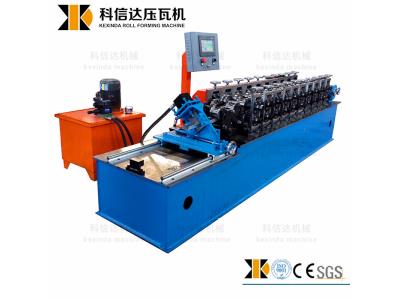

The Metal Profile C U Roll Forming Machine is a cutting-edge solution designed for the efficient manufacturing of aluminum sections. This advanced machinery is equipped with a variety of features that enhance productivity and ensure precision in every operation. It includes a manual uncoiler, guiding platform, coil strip leveler, main body of the roll forming machine, electro-motor, hole-punch device, cutting device, hydraulic station, and a user-friendly PLC control system.

Specifications

Configuration Manual Uncoiler, Guiding Platform, Coil Strip Leveler, Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device, Cutting Device, Hydraulic Station, PLC Control
Control System PLC Panasonic Inverter
Main Frame 350mm H-Beam
Main Power 18.5 kW
Pump Power 15 kW
Power Supply 3-Phase, 380V, 50Hz
Forming Speed 12-14 m/min
Hydraulic Pressure 18-20 MPa
Forming Size 80-300 mm
Feeding Thickness 1.5-3.2 mm

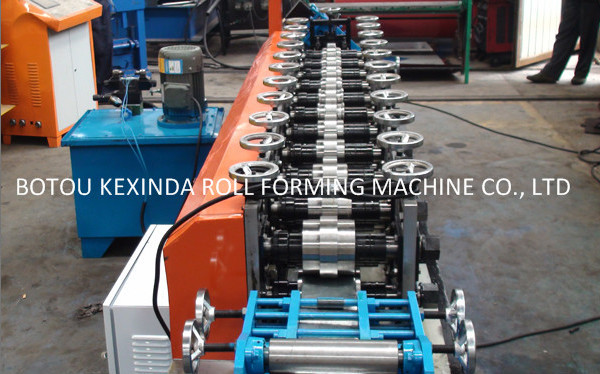

Roller Station 12 Stands
Roller Diameter 80 mm
Backboard Thickness 18 mm
Chain Size 66 mm
Cutter Standard Cr12
Roller Standard Cr12
Cr-Plating Size 0.05 mm
Overall Size 9500 × 1400 × 1350 mm
Total Weight 6 T

Additional Information

This machine is ideal for industries that require high-quality aluminum sections, providing durability and efficiency. Regular maintenance and proper usage will ensure optimal performance and longevity of the equipment.
