trade assurance hot sale metal roof ridge cap roll forming machine

hot sale trade assurance

metal roof ridge cap roll forming machine

China manufacturer

aluminum roll shutter door forming machine,roll shutter door machine,roll shutter making machine,roll shutter door forming machine

Product Description

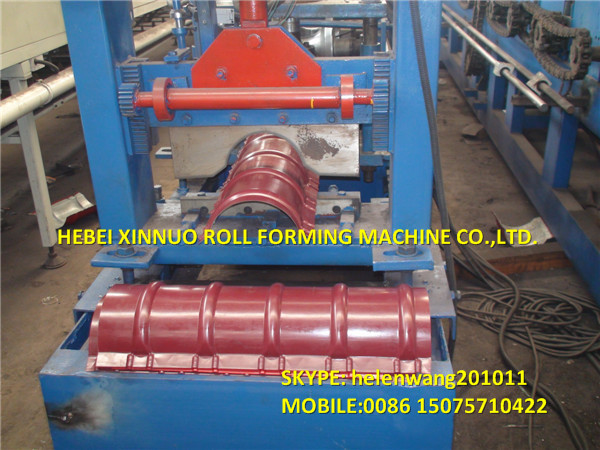

1.The picture machine:

2.Product information

1.Main machine Dimension:6600mm*1000mm*1500mm;

2.Machine Under Frame:Steel 350 H-beam;

3.Sidewall : 45# Steel plates(16mm);

4.Roller Stations: 14 Steps ;

5.Shaft Diameter: 75mm;

6.Main Shaft Material:45# steel with finish turning ;

7.Roller Material:45# Forging Steel with Chromium Plate;

8.Chromium Plate Thickness:0.05mm;

9.Motor Power: 5.5kw+4kw;

10.Reducer Type:8#Gear Speed Reducer— Shanghai,China

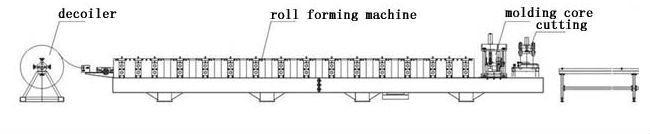

3.The production process

Decoiler→Flating→Feeding →Forming→Cut to length→Colletion

(finish goods)

roof tile making machine,roll forming mchine roof making machine,roof sheet making machine

4.Production Flow

5.Packaging & Shipping

6.Our Services

7.Company Information

We are manufacturer of metal sheet roll forming machine for more than 15 years. We supply roll forming machine according to your products and requests.OEM and ODM

are acceptable. Color steel cold roll forming machine,CZU purlin making machine and

sandwich panel roll forming machine are our hot sell products.

We have CE,ISO,BV certificate, and strict control in the production line.
