metal stud and track roll forming machine metal stud and track roll forming machine sheet

Inquire Now

Description

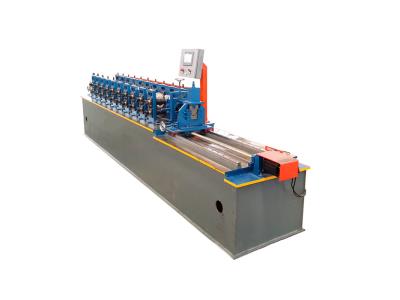

The metal stud and track roll forming machine is designed to efficiently produce metal studs and tracks from various materials, including color steel plates, galvanized sheets, and aluminum coils. This innovative machine streamlines the sheet forming process, ensuring precision and high-quality output. Equipped with advanced technology, it features a PLC Colored Touch Screen control system for easy operation and monitoring. Its robust design allows for versatility in production, catering to a range of construction needs.

Specifications

Feature Details
Suitable to Process Color steel plate, galvanized sheet, aluminum coils
Control System PLC Colored Touch Screen
Roller Station 10 rows or custom
Thickness of Feeding Material 0.3 – 1.5 mm
Productivity 35-50 m/min
Rollers’ Material 45# Plating Cr
Diameter of Shaft 42 mm
Weight About 2.5 T
Size 5000 x 800 x 1600 mm
Voltage 380V 50Hz 3 phases
Cutter Standard GCr12
Main Frame 18 mm steel welding
Motor Power 5.5 + 4 kw

Additional Information

Packaging Details: The main machine is nude, and the computer control box is packed with a wooden frame.

Delivery Details: The machine is securely packed and delivered in a timely manner.

Product Pictures
