MG-SA Blow Moulding Machines

Inquire Now

Description

The MG-SA series blow moulding machines represent the forefront of technology in high-output semi-automatic PET blow moulding. Designed to streamline the production process, these machines integrate a revolutionary automatic bottle discharging unit, a patented heating system, and an automatic loading design for preforms. This innovation significantly reduces manpower requirements and alleviates the workload of operators. Capable of holding blowing moulds with up to 6 cavities, the SA series achieves an impressive output of 2800 bottles per hour for 500ml water bottles. This remarkable efficiency marks a substantial advancement in the PET bottle blow moulding industry.

Bottle Samples

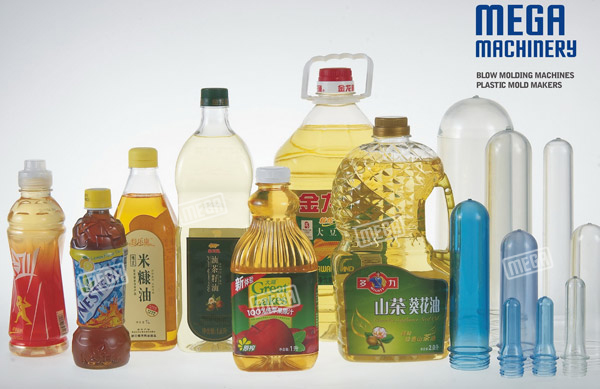

PET bottles produced by MG-SA blow moulding machines:

Specifications

GENERAL INFORMATION MG-SA4 MG-SA6 MG-SA4 C TYPE
Material PET PET PET
Clamping Force 300KN 300KN 300KN
Clamping Stroke 350mm 250mm 350mm
Max. Stretching Stroke 380mm 380mm 380mm
Number of Cavities 4 Cavity 6 Cavity 4 Cavity
Theoretical Output 2000BPH 2800BPH 1800BPH
Max. Mould Thickness 190mm 190mm 300mm
Space Between Tie Bars 670x340mm 670x340mm 480x450mm
Voltage Standard 380v/3PH/50Hz or special order 380v/3PH/50Hz
Number of Heating Zone 18KW 18KW 4 Sections
Max. Container Volume 0.1-2.5L 0.1-1.0L 0.1-1.5L (4 Cav), 5L (2 Cav)
Neck Diameter Range 15-45mm 15-30mm 15-45mm
Max. Container Diameter 110mm 70mm 110mm
Max. Container Height 370mm 250mm 400mm
Low Air Compressor 8-10Bar 8-10Bar 8-10Bar
High Air Compressor 30Bar 30Bar 30Bar
Blow Molding Machine Dimensions (L X W X H) 190x88x180cm 190x88x180cm 165x78x218cm
Oven Dimensions (L X W X H) 190x66x160cm 190x88x180cm 172x70x148cm
Net Weight 1.3T 1.3T 1Ton

Additional Information

Note: Multiple cavity blow moulding machines are also known as bottle blowing machines, stretch blow molding machines, bottle making machines, blowing machines, and PET blow molding machines.

Mega Machinery, the professional blow moulding machine supplier in China.
