MIB HEAT SHRINKABLE INSULATION BREAKOUT
Inquire NowDescription
The MIB Heat Shrinkable Insulation Breakout is designed for medium voltage applications up to 36kV. This innovative product provides exceptional protection against moisture and pressure, making it an ideal solution for cable termination separation. The heat shrinkable insulation ensures a secure and reliable seal, enhancing the longevity and durability of electrical systems.
This insulation breakout features a hot melting adhesive that significantly improves waterproof capabilities, while its spiral coating type ensures comprehensive coverage. With excellent corrosion resistance and UV protection, it is engineered to withstand harsh environmental conditions. The superior electrical and mechanical properties guarantee optimal performance, and its easy installation process makes it a convenient choice for professionals.
Color Standard: Black
Operating Temperature: -40°C to +100°C

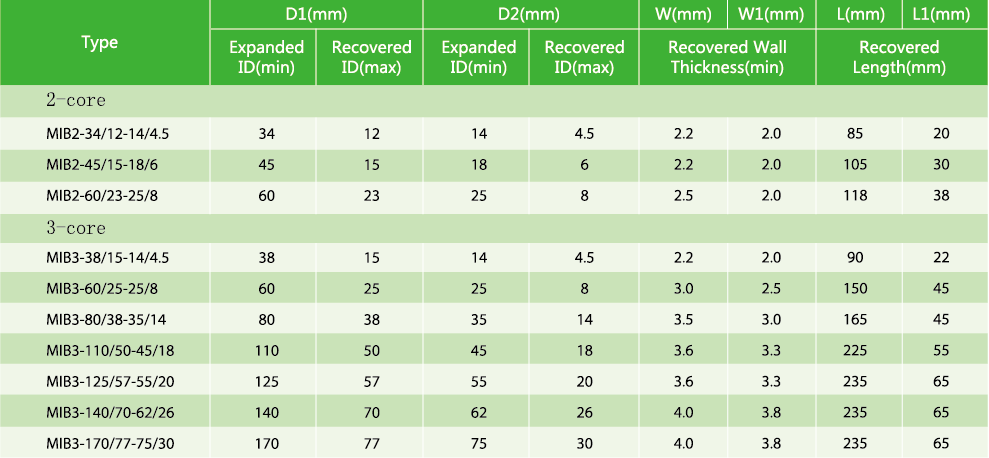

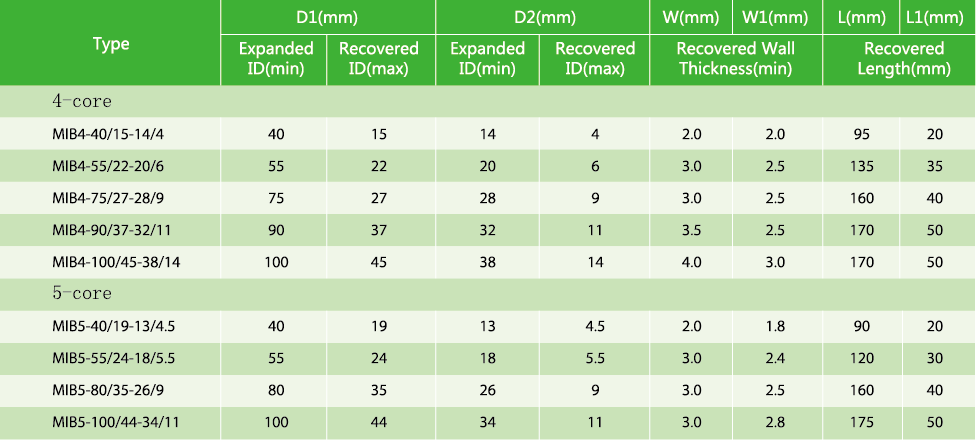

Specifications
| Attribute | Details |
|---|---|
| Voltage Rating | Up to 36kV |
| Moisture Protection | Yes |
| Adhesive Type | Hot melting adhesive |
| Corrosion Resistance | Excellent |
| UV Resistance | Yes |
| Installation | Easy |
| Color | Black |
| Operating Temperature | -40°C to +100°C |
Additional Information
No additional information available.
