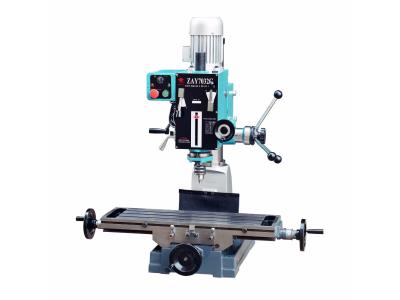

Milling and drilling machine ZAY7020G ZAY7032G ZAY7040G ZAY7045G ?
Inquire NowDescription
The ZAY7020G, ZAY7032G, ZAY7040G, and ZAY7045G milling and drilling machines are precision-engineered tools designed for a variety of machining tasks including milling, drilling, tapping, boring, and reaming. Each model features a robust gear-driven system and a round column that can be adjusted for height and thickness, providing users with flexibility and adaptability in their projects. The headstock can swivel 360° horizontally, allowing for versatile positioning and enhanced operational efficiency. With micro feed precision and adjustable gibs on the table, these machines ensure strong rigidity and powerful cutting performance for precise positioning.
Standard accessories included with each model are essential tools such as an Allen wrench, wedge, various wrenches, drill chuck arbor, screws, and a draw bar with washers. Optional accessories are also available, including a machine stand, chip tray, working lamp, coolant system, drill chuck, milling cutter holder, mill chuck, power feed attachment, auto-tapping system, parallel vice, clamping kits, and rotary tables.
Specifications
| 项 目 | ITEM | ZAY7020G | ZAY7032G | ZAY7040G | ZAY7045G |
|---|---|---|---|---|---|
| 最大钻孔直径 | Drilling capacity | 20mm | 32mm | 40mm | 45mm |
| 最大面铣刀直径 | Face milling capacity | 63mm | 63mm | 80mm | 80mm |
| 最大立铣刀直径 | End milling capacity | 20mm | 20mm | 32mm | 32mm |
| 主轴端至工作台最大距离 | Distance from spindle nose to table | 439mm | 440mm | 440mm | 440mm |
| 主轴轴线至立柱表面最小距离 | Min.distance from spindle axis to column | 197.5mm | 272.5mm | 272.5mm | 272.5mm |
| 主轴行程 | Spindle travel | 85mm | 130mm | 130mm | 130mm |
| 主轴锥孔 | Spindle taper | M.T.3 or R8 | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 |
| 主轴转速级数 | Step of spindle speed | 6 | 6 | 6 | 6 |
| 主轴转速范围 50Hz | Range of spindle speed 50Hz | 95-1420 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m |
| 60Hz | 60Hz | 115-1700 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m |
| 主轴箱回转角度(水平方向/垂直方向) | Swivel angle of headstock(horizontally/perpendicularly) | 360°/±90° | 360°/±90° | 360°/±90° | 360°/±90° |
| 工作台面积 | Table size | 520×160mm | 800×240mm | 800×240mm | 800×240mm |
| 工作台前后行程 | Forward and backward travel of table | 140mm | 175mm | 175mm | 175mm |
| 工作台左右行程 | Left and right travel of table | 290mm | 500mm | 500mm | 500mm |
| 电机功率 | Motor power | 0.37KW | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) |
| 电压/频率 | Voltage/frequency | As customer’s requirement | As customer’s requirement | As customer’s requirement | As customer’s requirement |
| 净重/毛重 | Net weight/gross weight | 130kg/190kg | 315kg/365kg | 318kg/368kg | 320kg/370kg |
| 包装尺寸 | Packing size | 680×750×1000mm | 770×880×1160mm | 770×880×1160mm | 770×880×1160mm |
| 装箱数 | Loading amount | 48pcs/20′ container | 36pcs/20′ container | 36pcs/20′ container | 36pcs/20′ container |
