First, the MINE is equipped with a 1500W power motor.The motor gives the MINE powerful power, allowing it to overcome steep roads while accelerating faster, giving the user a power experience.
Second, MINE uses 72V lithium battery.The large lithium batteries give MINE the power to run faster and farther.Compared with lead-acid batteries, lithium batteries are greener, faster to charge, longer to use, and smaller in size.
Thirdly, the top speed of 45km/h not only allows users to enjoy the pleasure of speed, but also pays attention to the safety of users, meeting the requirements of most countries with speed limits.
Besides,the whole car LED headlights, turn signals, tail lights, for the user in the night driving, left and right to turn, backwards to provide security. LED type bulb, brighter, energy saving, longer life, more environmentally friendly.The whole car before and after the disc brake design, help users in an emergency, timely braking, to ensure safe driving.The 12-inch tyres are designed to make the MINE ride smoother and more comfortable, with more grip and easy control.

1.Dimensions：

Length×Width×Height 1830mm ×710mm ×1095mm

Wheelbase 1350mm

Min.Ground Clearance 170mm

Seating Height 800mm

2. Framework：

Front Shock Absorber Oil Damping Direct Acting Shock Absorber

Rear Shock Absorber Oil Damping Direct Acting Shock Absorber

Front/Reae Tire Spec 120/70-12 front Rim:2.75-12 rear rim:3.5-12

Front Braking Mode 220mm Dual-Piston Hydraulic Disc Brake

Rear Braking Mode 190mm Dual-Piston Hydraulic Disc Brake

Swinarm Die casting of aluminum alloy

Frame material High quality carbon steel

Max payload 200Kg

3.Power System：

Maxium Speed 45 Km/h

Motortype Hub motor

Rated power 1500W,EEC R85 test standard

Maximum discharge current 120N.M@100RPM

Motor Control Solution FOC

Maximum output phase current 140A

4.Battery

Battery Unit Lithium Battery

Voltage 72V

Capacity 30Ah

Standard Charging Current 5A

Standard Discharging Current 20A

Max.Discharging Current 45A

5.Electrical System

LED Headlinght

LED Turning Light

LED Tail Light

LED Braking Light

LCD Dashboard

USB Charging Port

6.Performance

Climbing 30%

Accelerate（0-45） 10S

Charge Time 6H@(5A )

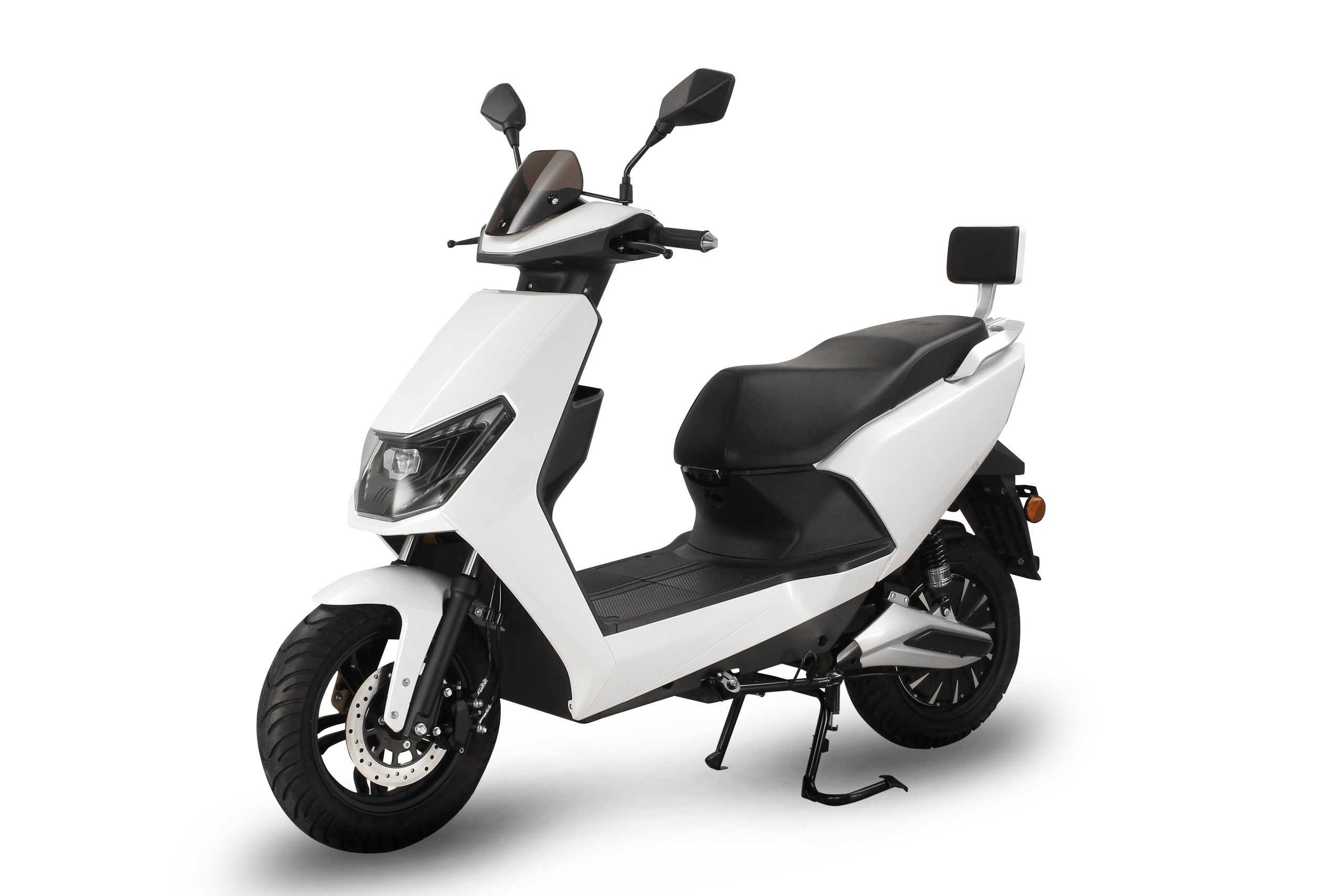

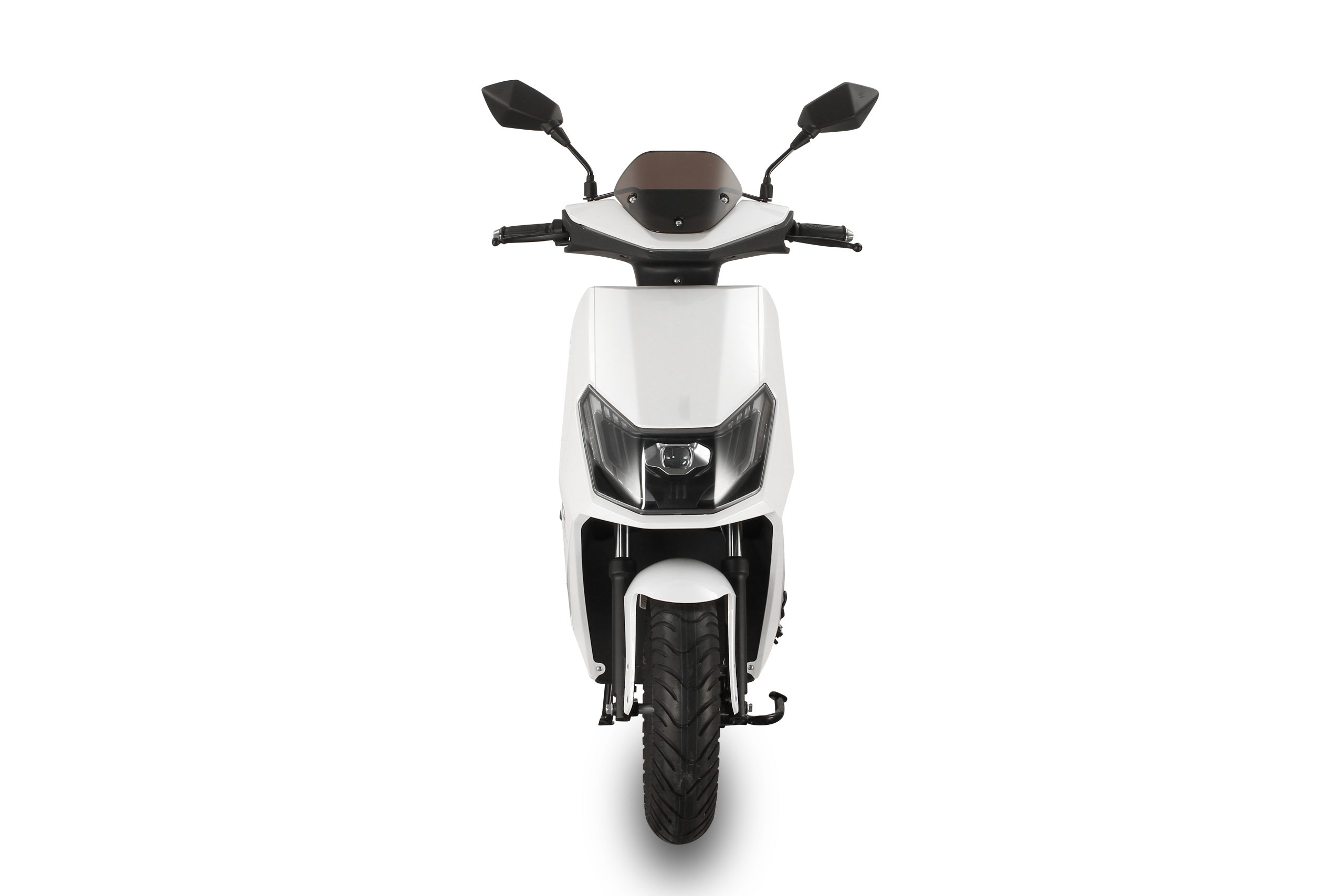

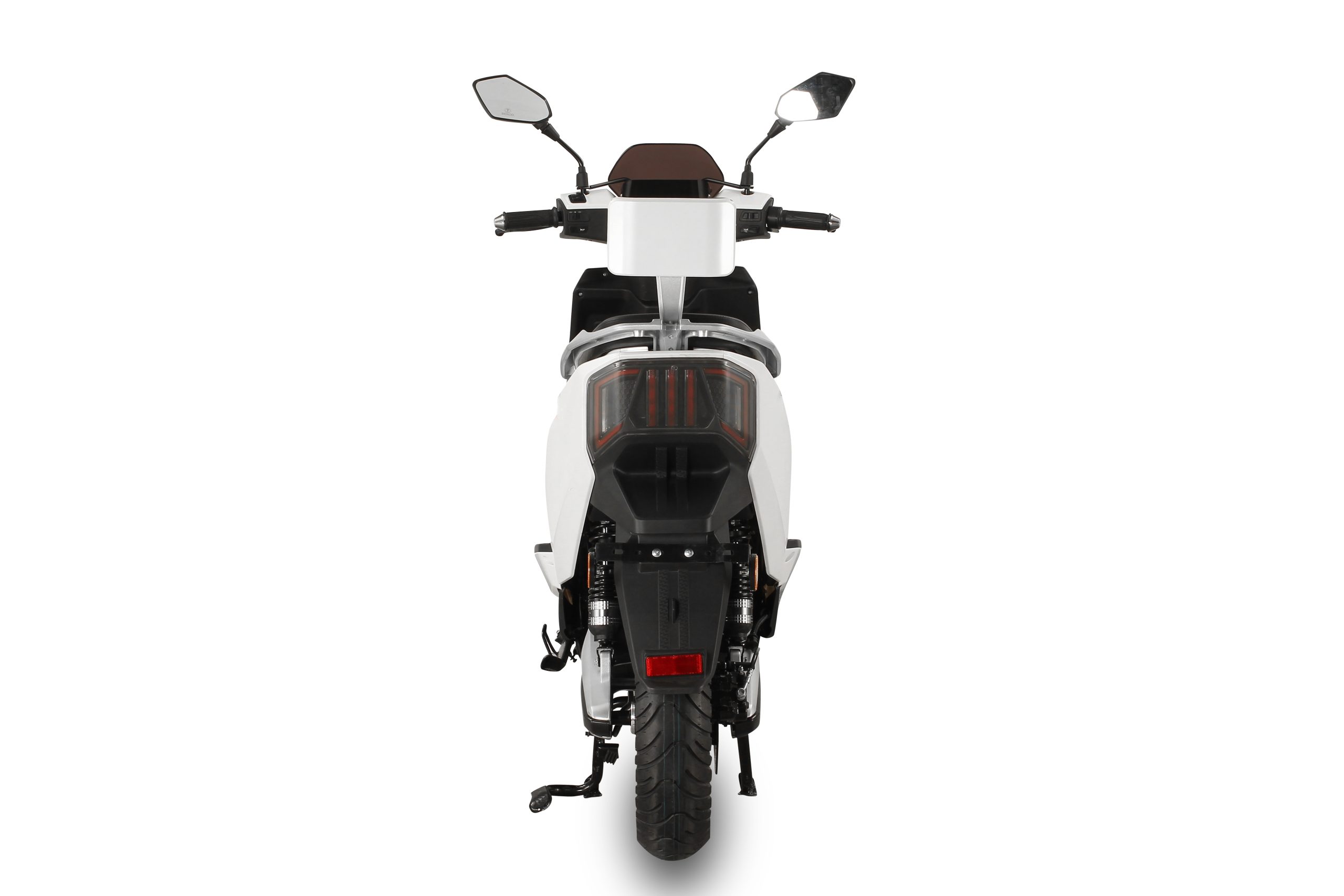

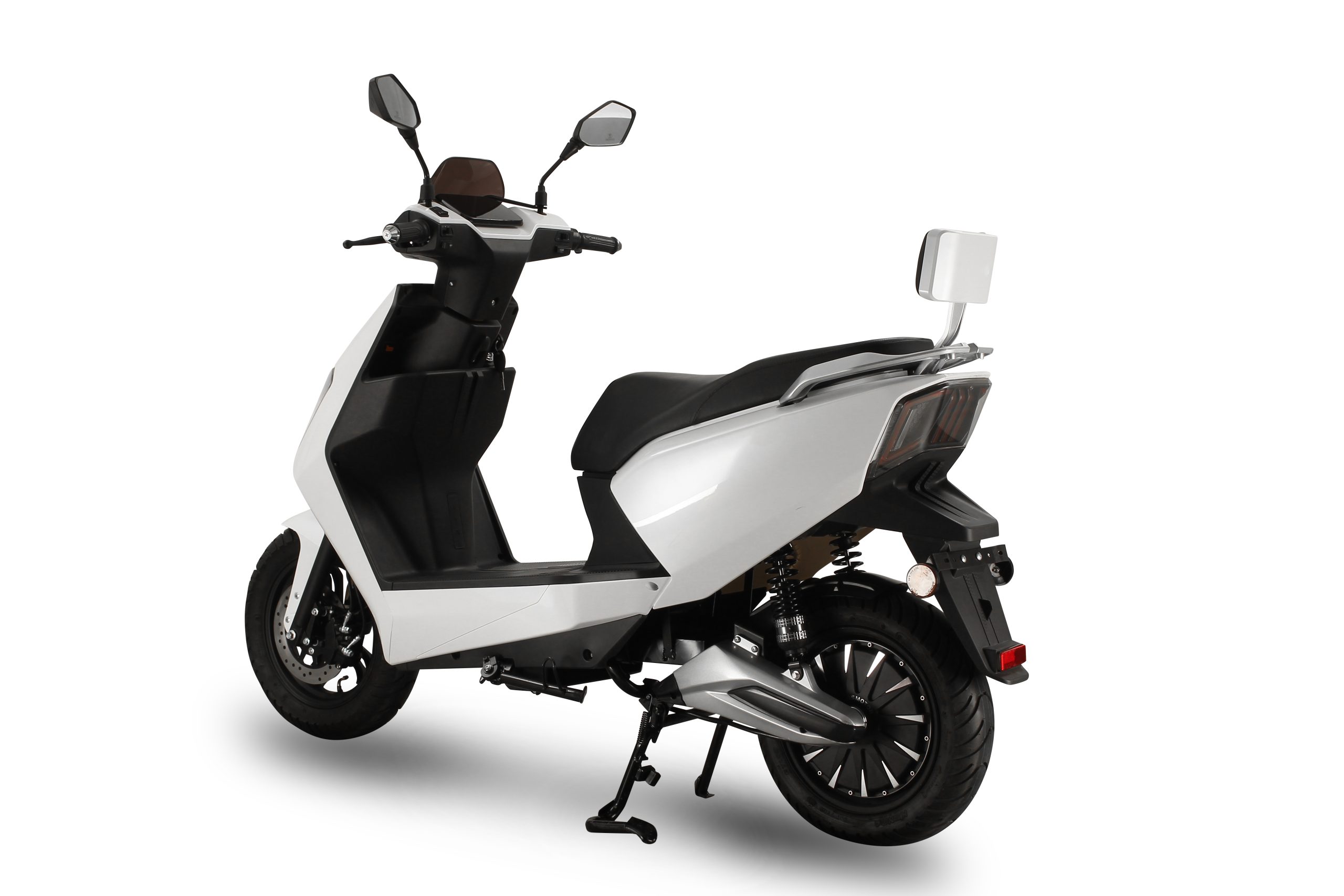

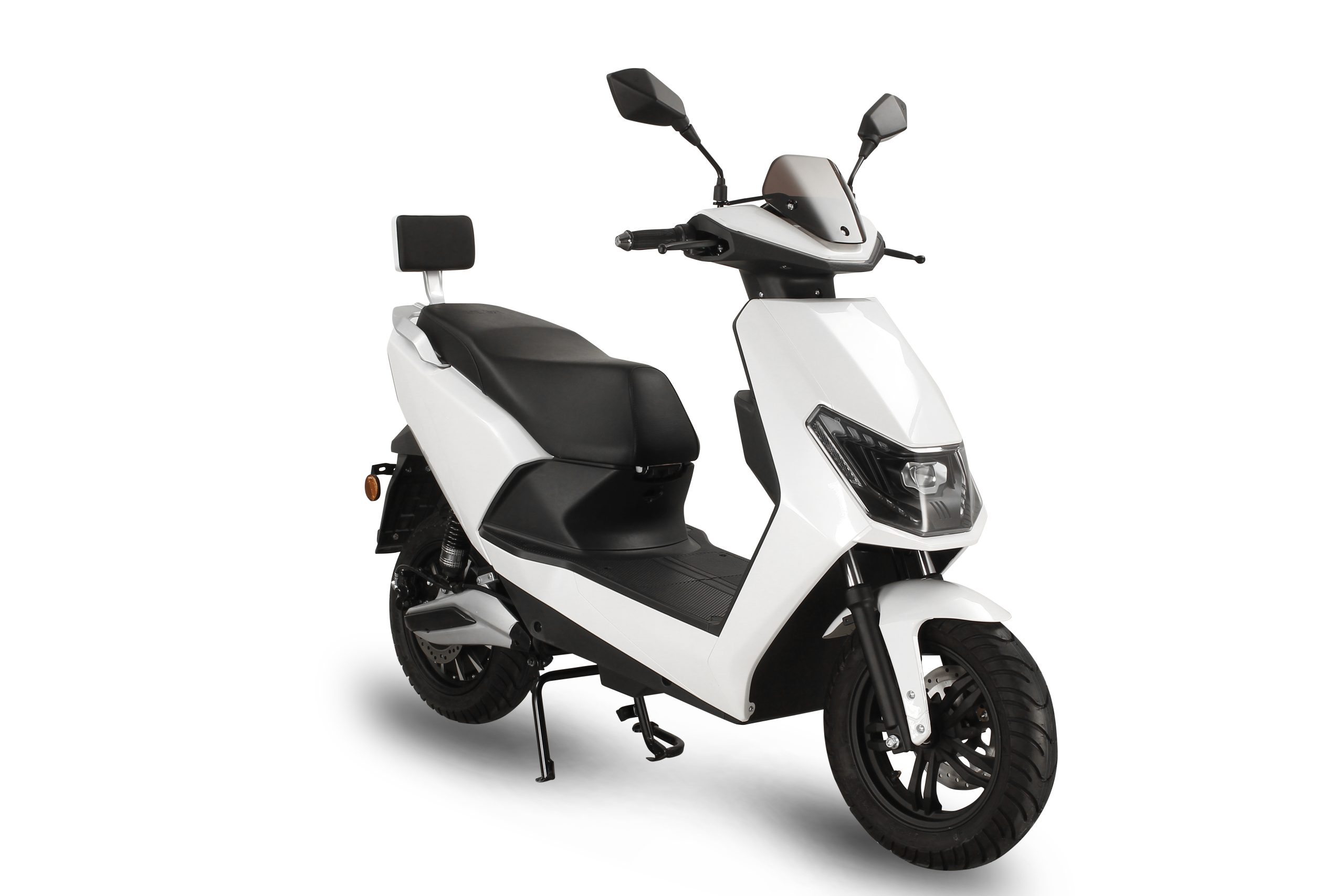

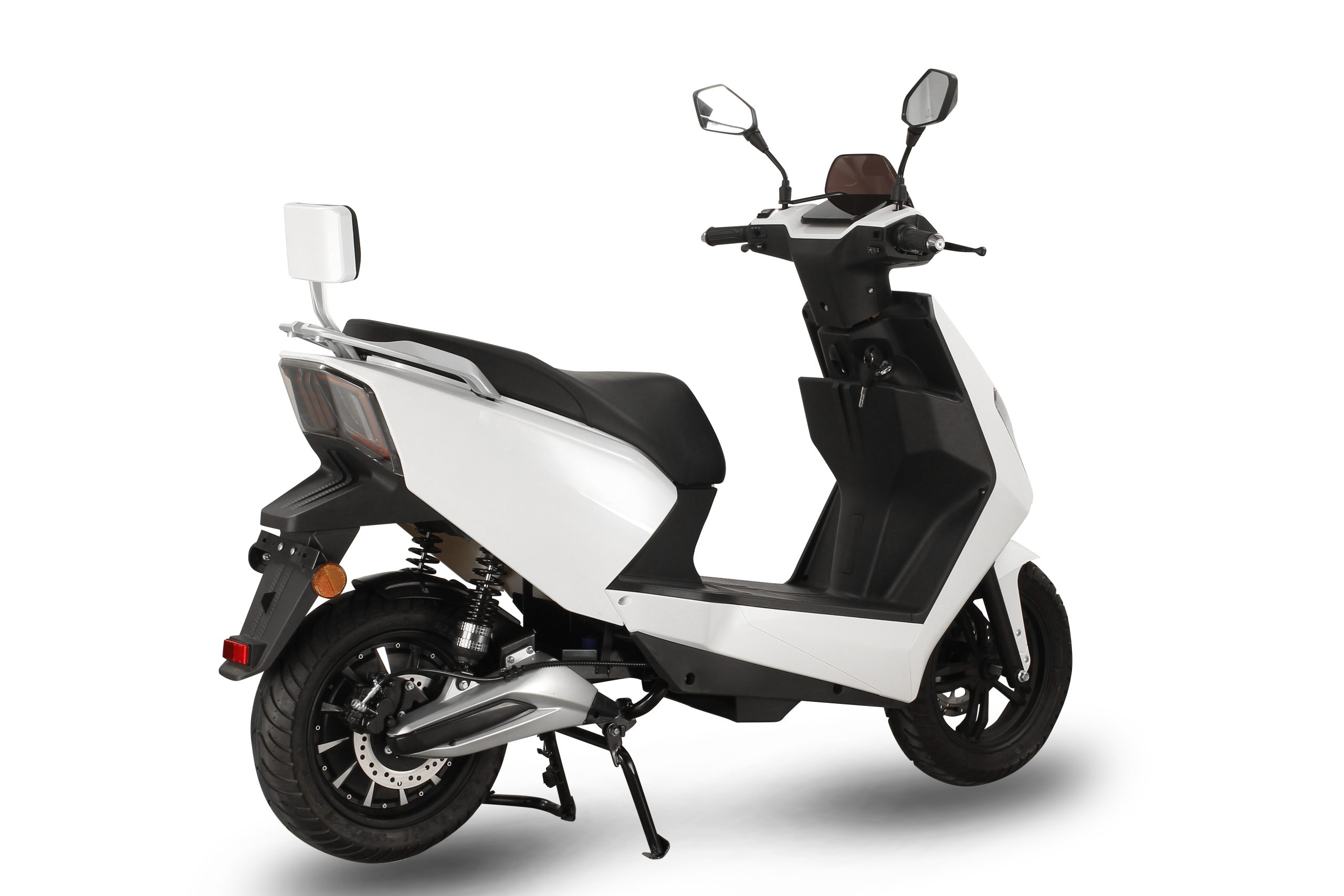

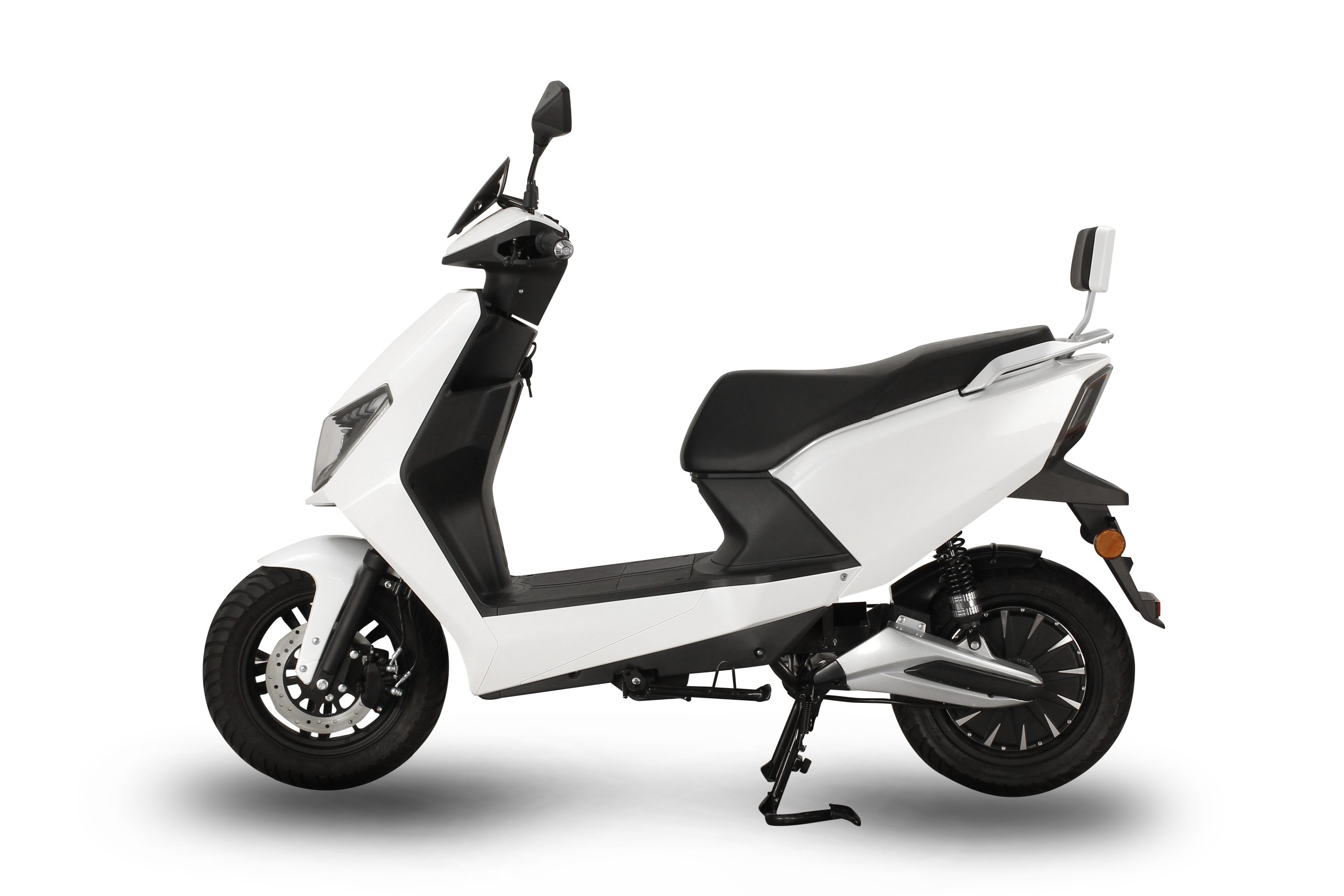

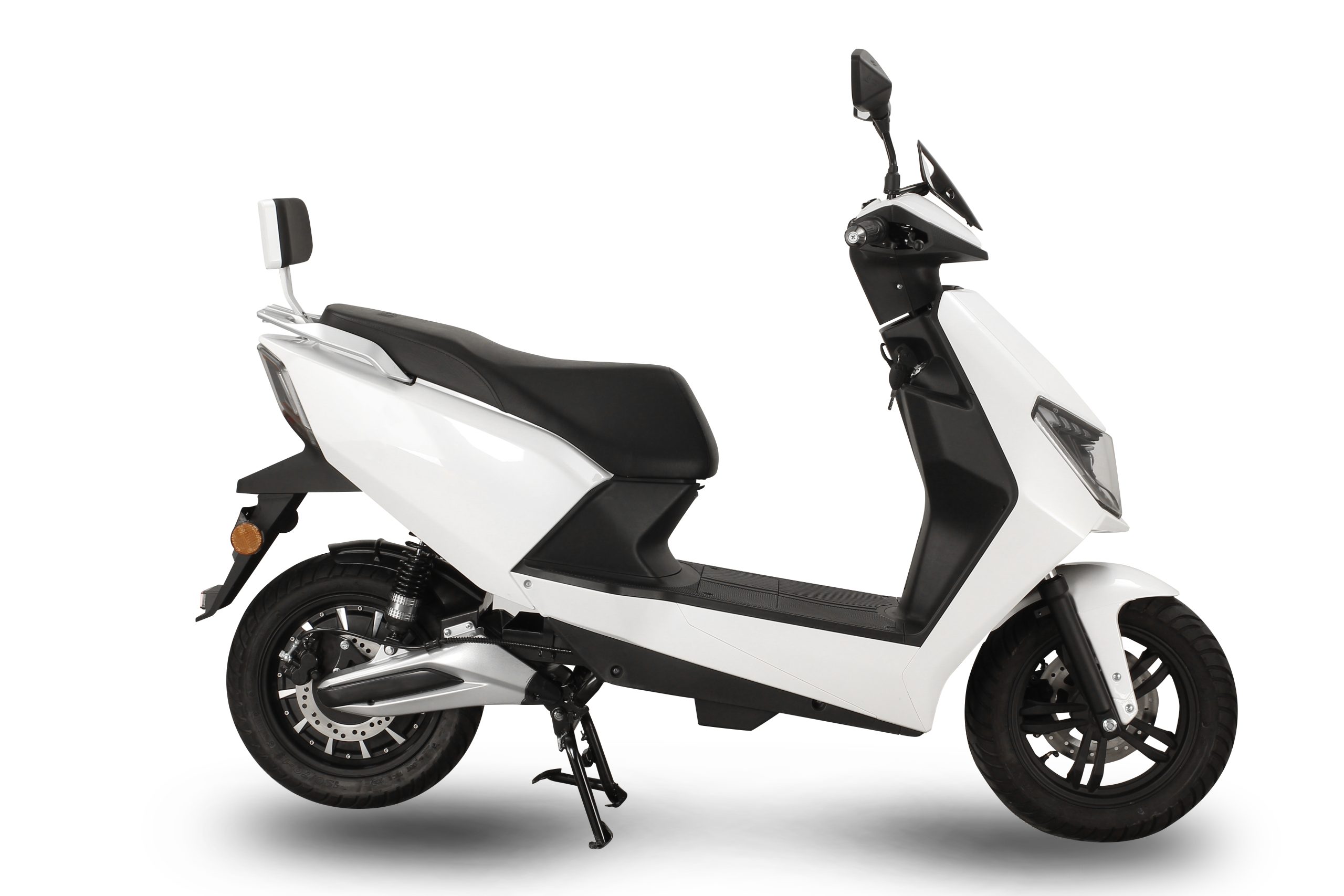

7.Picture
