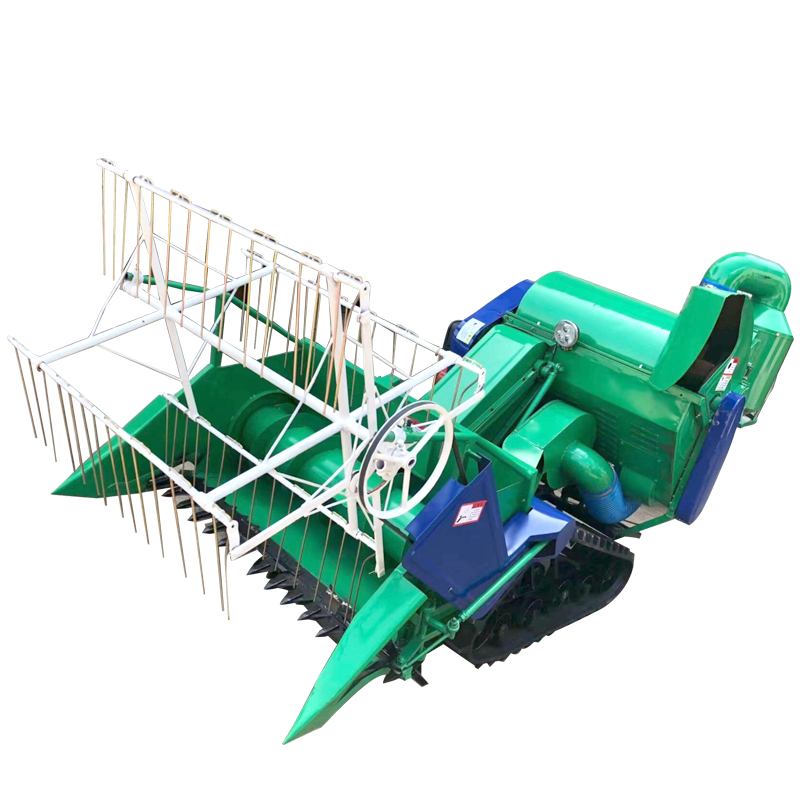

Mini 4LZ-0.8 Rice Combine Harvester
Inquire NowThe mini rice harvester can complete the whole process of harvesting, conveying, threshing, separating and bagging at one time. The mini rice harvester has compact structure, stable performance, low price, light and flexible operation, and convenient maintenance.
Mini 4LZ-0.8 Rice Milling Machine
The mini rice harvester can complete the whole process of harvesting, conveying, threshing, separating and bagging at one time. The mini rice harvester has compact structure, stable performance, low price, light and flexible operation, and convenient maintenance.
|
Model |
4LZ-0.8 |
|
Standard |
DB43/T247-2004 DG/T014-2009 |
|
Weight(kg) |
350kg |
|
Size of complete unit (L×W×H)(mm) |
2700mm ×1420mm×1350mm |
|
Size of SKD package(L×W×H)(mm) |
2200mm×1320mm×1200mm |
|
Rated power (KW) |
9.2KW(12.5hp) |
|
Engine |
Air-cooling、four—stroke diesel engine |
|
Fuel consumption(L) |
13.5–22L/hectare |
|
Starting mode |
Electric starter |
|
Tire Type |
Triangular crawler |
|
Clutch System Type |
Dual-stage type |
|
Loss ratio(%) |
<3% |
|
Dirt percentage(%) |
<7% |
|
Cutting width(M) |
1.2m |
|
Ground clearance(mm) |
320mm |
|
Diameter of roller(mm) |
350mm |
|
Diameter of draught fan(mm) |
280mm |
|
Height after cutting(mm) |
120—320mm |
|
Cutting knife type |
Double-deck knife,adjustable type |
|
Production efficiency |
0.06–0.108hectare/h |
