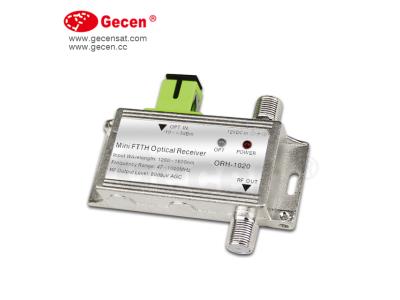

Mini FTTH optical receiver
Inquire NowDescription
The Mini FTTH Optical Receiver is a cutting-edge device designed to enhance your Fiber To The Home (FTTH) networks, ensuring seamless connectivity and outstanding performance. Compatible with GPON, EPON, and any FTTx PON technology, this optical receiver delivers exceptional linearity and flatness, making it an ideal choice for diverse networking needs. With its compact design, installation becomes a breeze, allowing for efficient use of space without compromising on functionality.
Key features include a wide range of optical input power, single-mode fiber high return loss, and the utilization of GaAs amplifier active devices. The device incorporates ultra-low noise technology, further enhancing signal clarity. Power and optical indicators are visually represented through a red LED for power status and a color-changing LED for optical power, ensuring users can easily monitor operational conditions.
Specifications
| Number Item | Unit | Description | Remark |
|---|---|---|---|
| Customer Interface | |||
| RF Connector | F-female | ||
| Optical Connector | SC/APC or FC/APC | ||
| Power Supply | F-female | ||
| Optical Parameter | |||
| Responsivity | A/W | ≥0.9 | |
| Input Optical Power | dBm | -10～+3 | |
| Optical Return Loss | dB | ≥45 | |
| Input Wavelength | nm | 1260～1600 | |
| Optical Fiber Type | Single Mode | ||
| RF Parameter | |||
| Frequency Range | MHz | 47-1000 | |
| Flatness | dB | ±0.75 | |
| Output Level | dBμV | ≥80 | -1dBm input power |
| CNR | dB | ≥50 | -1dBm input power |
| CSO | dB | ≥62 | |
| CTB | dB | ≥65 | |
| Return Loss | dB | ≥16 | |
| Output Impedance | Ω | 75 | |
| Other Parameter | |||
| Power Supply | VDC | 12 | |
| Power Consumption | W | <2 | |
| Dimensions | mm | 75*63*17 | |
Additional Information
This Mini FTTH Optical Receiver is perfect for both residential and commercial applications, providing reliable and efficient fiber-optic communication. Its technological advancements and compact design make it an essential tool for modern telecommunications infrastructure.
