Miniature Circuit Breaker
Inquire NowDescription

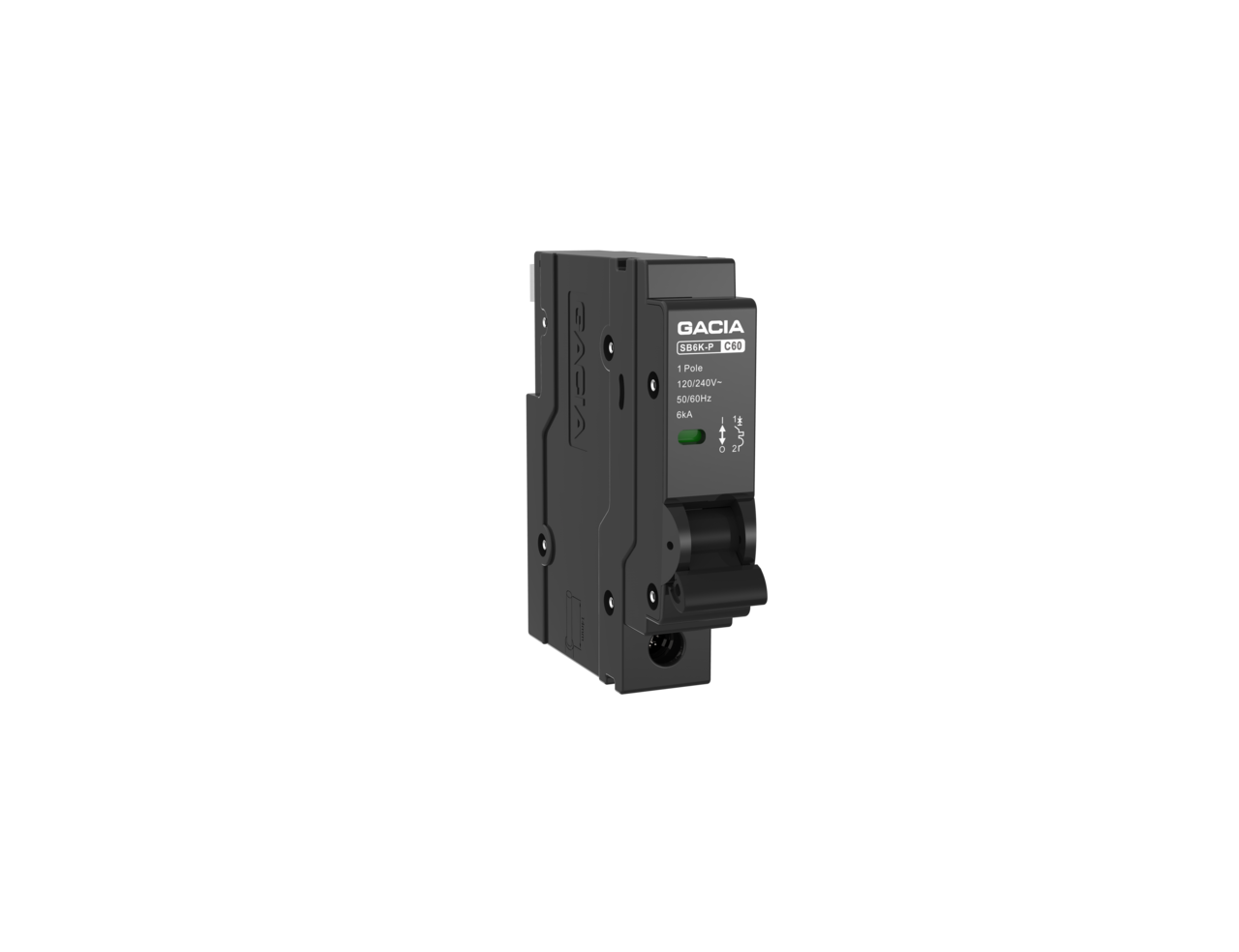

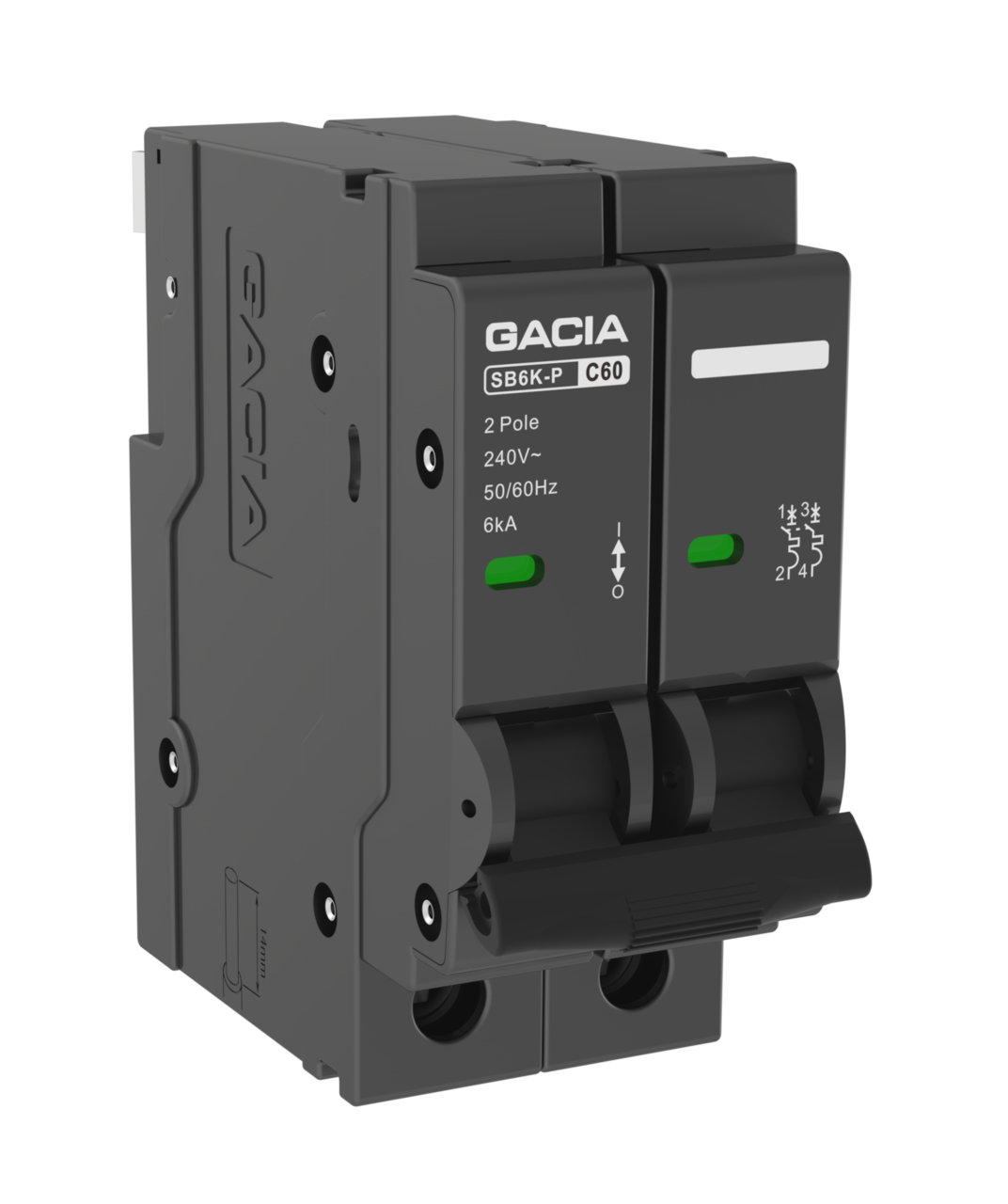

The Miniature Circuit Breaker SB6K-P is an essential component for modern electrical systems, designed to provide reliable protection against overloads and short circuits. Featuring a fault indication function, this circuit breaker enhances safety by alerting users to any electrical faults. Constructed from recyclable engineering plastics, it not only ensures durability but also contributes to reducing environmental pollution.
With its compact design, measuring only 18mm in thickness, the SB6K-P maximizes installation space while offering a high breaking capacity of up to 6kA. This makes it an ideal choice for traditional distribution boxes, including the well-known Square D distribution box. The product boasts an attractive appearance, making it suitable for various applications.
Available in multiple poles (1P, 2P, 3P) and rated current options (6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A), it supports rated voltages of AC 110V, 230V, and 400V, adhering to the IEC 60898-1 standard.
Specifications
| Attribute | Details |
|---|---|
| Type | Miniature Circuit Breaker |
| Poles | 1P, 2P, 3P |
| Rated Current | 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
| Rated Voltage | AC 110V/230V/400V |
| Breaking Capacity | Up to 6kA |
| Thickness | 18mm |
| Standard | IEC 60898-1 |
| Material | Recyclable Engineering Plastics |
Additional Information
For optimal performance, ensure proper installation according to manufacturer guidelines and local electrical codes.
