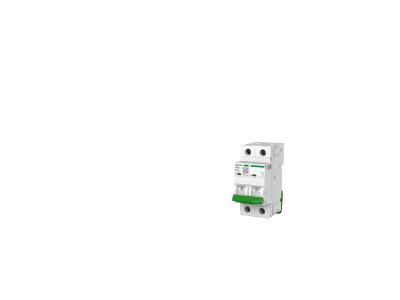

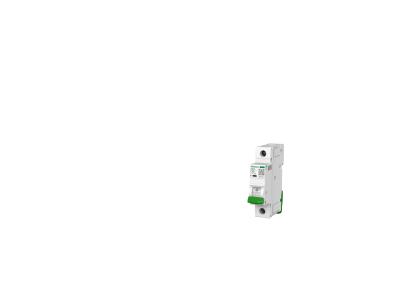

Miniature Circuit Breaker, HB9L
Inquire NowDescription
The HB9L Miniature Circuit Breaker is engineered for superior protection against electrical faults, offering both overload and short-circuit protection. Designed to meet the highest safety standards, it features a contact position indication window with green for ON and red for OFF, ensuring clear visibility of its operational status. This versatile circuit breaker is available in 1-4 pole configurations and supports a rated current of up to 63A, making it suitable for various applications. With a rated short-circuit breaking capacity of 6kA and compliance with IEC/EN 60898-1 standards, the HB9L is a reliable choice for both residential and commercial installations.
Specifications
| Feature | Details |
|---|---|
| Protection Type | Overload and Short-circuit |
| Curve Types | B, C, D |
| Rated Short-circuit Breaking Capacity | 6kA |
| Current Rating | Up to 63A |
| Working Voltage | 50/60Hz |
| Poles | 1-4 |
| Standards Compliance | IEC/EN 60898-1 |
| Certification | CE/KEMA |
