Miniature Circuit Breaker Plug-in type

Inquire Now

Description

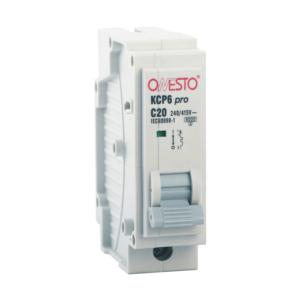

The Miniature Circuit Breaker Plug-in type is a robust and reliable solution designed to protect electrical circuits from overloads and short circuits. Adhering to the IEC60898-1 standard, this circuit breaker is available in various configurations to suit diverse applications. It offers a selection of tripping curves, including B and C types, and is available with 1, 2, or 3 poles, making it versatile for different electrical setups.

With rated current options ranging from 6A to 63A, this device ensures optimal performance in electrical systems, operating at voltages of 240/415V AC for single poles and 415V AC for double and triple poles. Its thermal-magnetic release mechanism provides dependable circuit protection, while the IP20 protection index ensures durability and safety in a variety of environments.

Specifications

Specification Details
Standard IEC60898-1
Tripping Curve B, C
Number of Poles 1, 2, 3
Rated Current 6/10/16/20/25/32/40/50/63 A
Rated Operation Voltage Ue 240/415V AC for 1P; 415V AC for 2,3P
Rated Insulation Voltage Ui 415V
Rated Frequency 50/60Hz
Rated Impulse withstand Voltage Uimp 4kV
Rated ultimate short-circuit breaking capacity Icu 6.0kA
Rated service short-circuit breaking capacity Ics 6.0kA
Type of Release Thermo-magnetic
Protection Index IP20
Ref. Calibration Temperature 50℃

Additional Information

  • Ideal for residential and commercial electrical systems.
  • Easy to install and maintain with plug-in design.
  • Provide effective circuit protection, ensuring safety and reliability.
