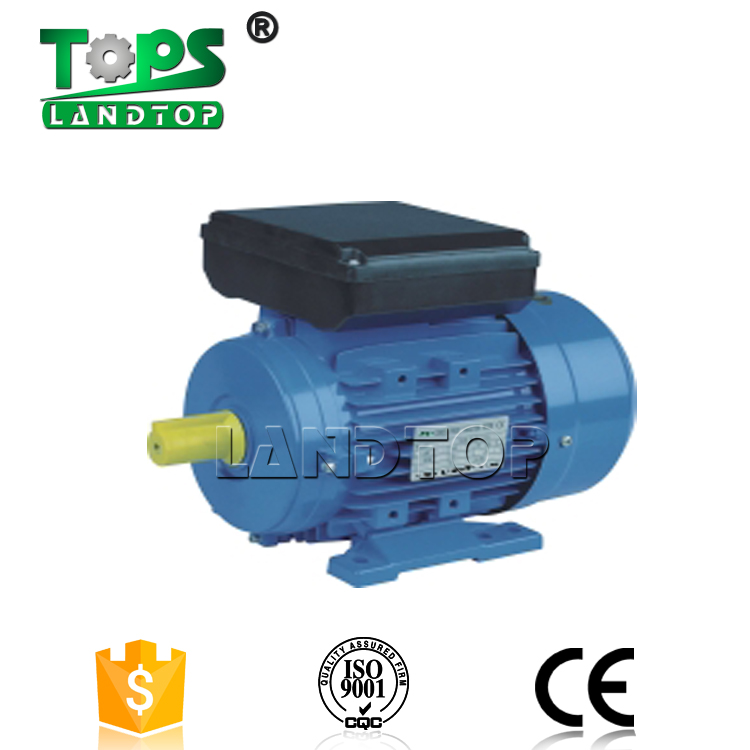

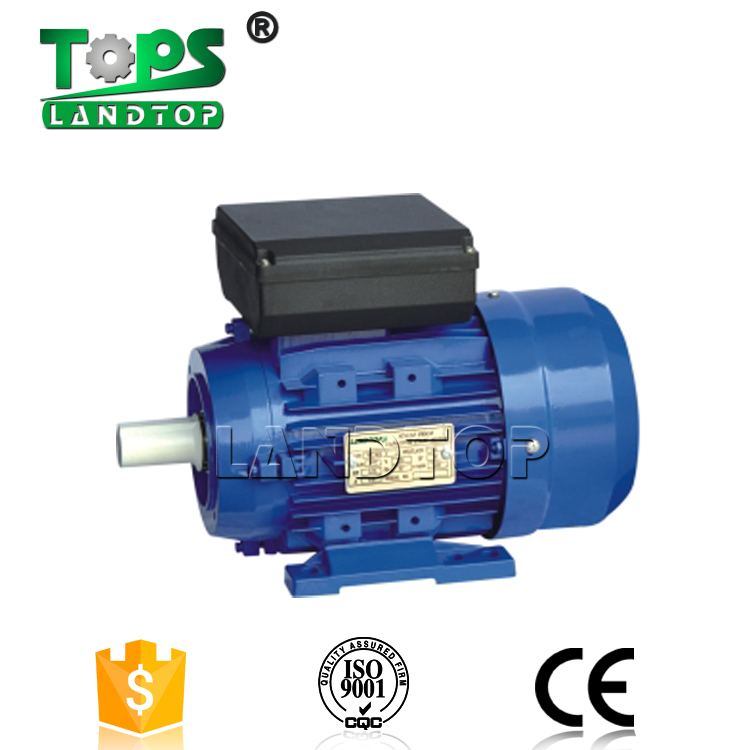

ML/MC/MY series single phase aluminum body electric motor
Inquire NowDescription
The ML/MC/MY series single phase aluminum body electric motor is engineered for superior performance and reliability. Designed with a lightweight aluminum body, this motor combines safety and efficiency, making it suitable for various applications including air compressors, pumps, fans, and medical apparatus. Its sleek design not only enhances its aesthetic appeal but also ensures easy maintenance. With low noise levels and minimal vibration, this motor is ideal for environments where quiet operation is essential.
Advantages:
1. Good performance
2. Safety & reliable operation
3. Attractive appearance
4. Easy maintenance
5. Low noise
6. Minimal vibration
7. Lightweight and simple construction.
Application:
The ML/MC/MY series motors are perfect for applications requiring high starting torque and overload capacity.
Operating Conditions:
1. Ambient temperature: -15°C ≤ θ ≤ 40°C
2. Altitude: ≤ 1000m
3. Rated voltage: 220V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous (S1)
6. Insulation class: Class B/F
7. Protection class: IP44/IP54/IP55
8. Cooling method: IC0141
Note: For special requirements, please contact us.
Specifications
| Attribute | Details |
|---|---|
| Ambient Temperature | -15°C to 40°C |
| Altitude | ≤ 1000m |
| Rated Voltage | 220V |
| Rated Frequency | 50Hz/60Hz |
| Duty | Continuous (S1) |
| Insulation Class | Class B/F |
| Protection Class | IP44/IP54/IP55 |
| Cooling Method | IC0141 |
Additional Information
For any specific requirements or inquiries, please reach out to us directly.
