MLJ
Inquire NowDescription

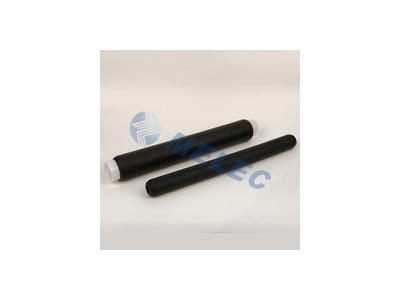

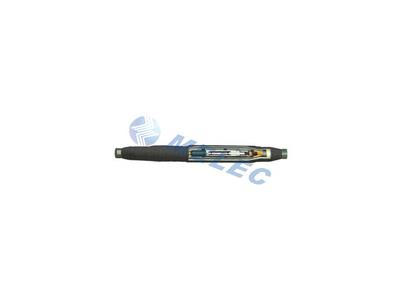

Introducing the MLJ Cold Shrinkable Straight Joint Accessories, designed to meet the rigorous demands of modern electrical installations. These accessories are essential for ensuring reliable connections in insulated cables, offering unparalleled performance and durability. Suitable for use with PVC, PE, and XLPE polymeric cables, the MLJ cold shrink straight joint can handle voltages up to 8.7/15(17.5)kV and is compatible with both copper and aluminum alloy conductors. Each product is fully tested according to IEC 60502-4 standards, guaranteeing safety and reliability.
Featuring pre-expanded components on an easy-to-remove spiral holdout, the installation process is straightforward and efficient. The cold shrinkable tubing fits tightly around the cable, providing superior insulation performance. With integrated geometric stress control and void-filling mastic, the product minimizes termination positioning errors. Additionally, its silicone-rubber material boasts high UV resistance, excellent anti-tracking capabilities, and superior hydrophobic properties, ensuring a long service life without the need for tools or heat sources.
Specifications
| Feature | Details |
|---|---|
| Voltage Rating | Up to 8.7/15(17.5)kV |
| Compatible Materials | PVC, PE, XLPE polymeric cables |
| Conductors | Copper and aluminum alloy |

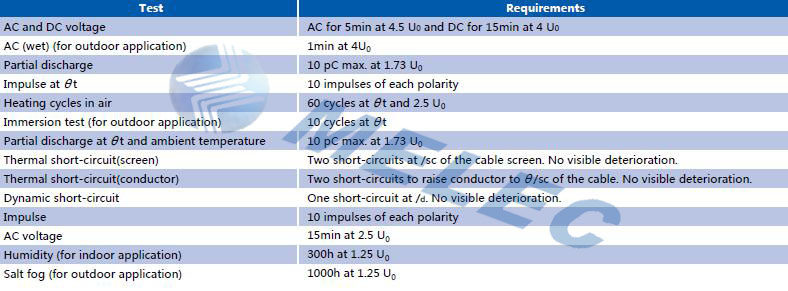

| Standards | IEC 60502-4 |
| Installation | No tools or heat sources required |
| Durability Features | UV-resistant, anti-tracking, hydrophobic |
Additional Information
- All components are pre-expanded for ease of installation.
- Outstanding resilience and fit ensures long-lasting performance.
- Integrated stress control minimizes errors during termination.
