Description

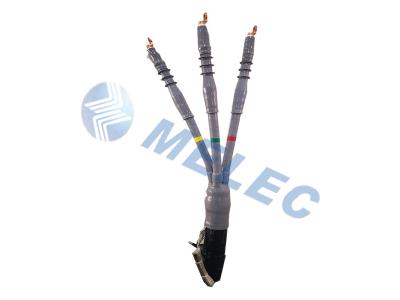

MLN Cold Shrinkable Termination Accessories are expertly designed for indoor applications, suitable for cable systems operating at up to 8.7/15(17.5) kV. These terminations are compatible with insulated PVC, PE, and XLPE polymeric cables, ensuring reliable performance and safety. Each product undergoes rigorous testing in accordance with IEC 60502-4 standards, making them a trusted choice for both copper and aluminum alloy conductors.

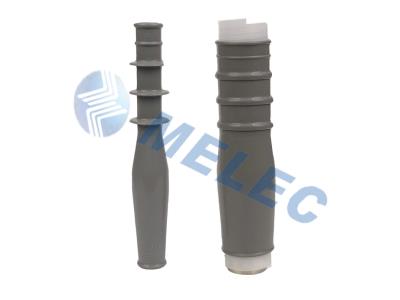

The cold shrink termination features a user-friendly design, where all components are pre-expanded on an easy-to-remove spiral holdout. This innovative approach not only simplifies installation but also enhances the overall resilience of the termination, ensuring a tight fit to the cable. Integrated geometric stress control and void-filling mastic minimize termination positioning errors, while the silicone-rubber material provides exceptional UV resistance, anti-tracking capabilities, and hydrophobic properties, contributing to a long service life.
With no tools, torches, or heat sources required for installation, these terminations offer superior insulation performance and ease of use.

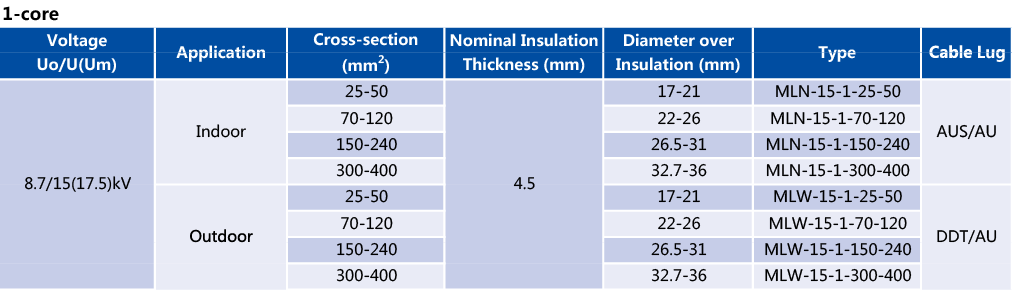

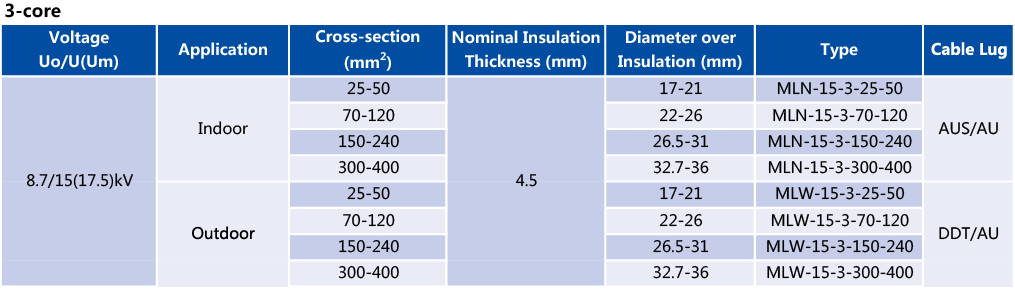

Specifications
| Attribute | Details |
|---|---|
| Voltage Rating | Up to 8.7/15(17.5) kV |
| Compatibility | PVC, PE, XLPE polymeric cables |
| Application | Indoor applications |
| Conductors | Copper or aluminum alloy |
| Standards | IEC 60502-4 |
Additional Information
– All components are pre-expanded on an easy-to-remove spiral holdout.
– The silicone-rubber material ensures high UV-resistance and excellent hydrophobicity.
– Installation does not require any tools or heat sources.
– Provides superior insulation performance.
