MLW COLD SHRINKABLE TERMINATION ACCESSORIES(Outdoor)
Inquire NowDescription
The MLW Cold Shrinkable Termination Accessories are expertly designed for outdoor applications, accommodating insulated cables up to 8.7/15(17.5)kV, including PVC, PE, and XLPE polymeric cables. Each product is rigorously tested in accordance with IEC 60502-4 standards, ensuring reliability and safety. This innovative solution is compatible with both copper and aluminum alloy conductors, making it versatile for various installation needs.
Featuring a user-friendly design, the cold shrink termination requires no tools, torches, or heat sources for installation, simplifying the process and enhancing efficiency. With its silicone-rubber composition, these terminations deliver exceptional UV resistance, anti-tracking capabilities, and hydrophobic properties, ensuring a long service life and superior insulation performance.

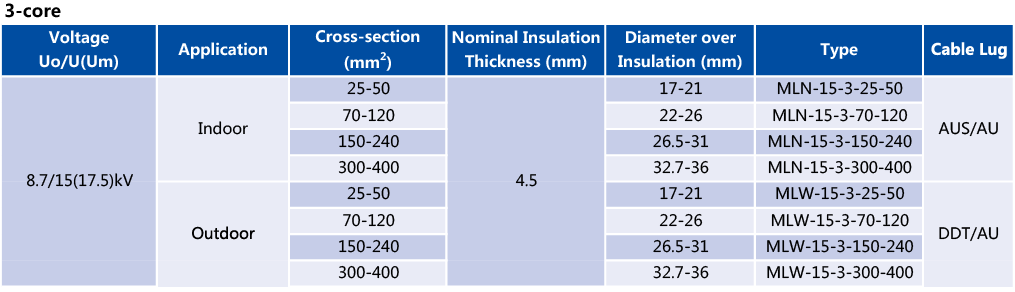

Specifications
| Attribute | Details |
|---|---|
| Voltage Rating | Up to 8.7/15(17.5)kV |
| Compatible Insulation Materials | PVC, PE, XLPE |
| Conductors | Copper or Aluminum Alloy |
| Standards Compliance | IEC 60502-4 |
| Installation Method | Cold shrink, no heat required |
| Material | Silicone-Rubber |
Additional Information
Key features of the MLW Cold Shrinkable Termination Accessories include:
- Pre-expanded components on an easy-to-remove spiral holdout.
- Outstanding resilience for a tight fit around cables.
- Integrated geometric stress control and void-filling mastic to minimize termination positioning errors.
- Superior insulation performance for enhanced durability.
