MNB28G-8EG-8G-MIB
Inquire NowDescription
The HENGSION Managed MNB28G-8EG-8G-MIB is a high-performance industrial Ethernet switch designed to meet the demands of robust networking environments. Featuring 8 fast Ethernet ports (1000BaseT(X)) and 8 fiber optic ports (1000Base SFP FX), this switch ensures wire-speed forwarding capabilities across all ports, guaranteeing non-blocking message transmission. Its automatic MDI/MDI-X crossover functionality allows for seamless plug-and-play setup.
Engineered for reliability, this switch supports a redundant Ring protocol with a recovery time of less than 20ms, making it ideal for critical applications. Enhanced security features include 802.1x authentication, VLAN support, broadcast storm suppression, and loop detection, ensuring a secure networking environment. The device supports web-based management and SNMP for centralized control, while its fanless design optimizes power consumption, making it efficient and eco-friendly.

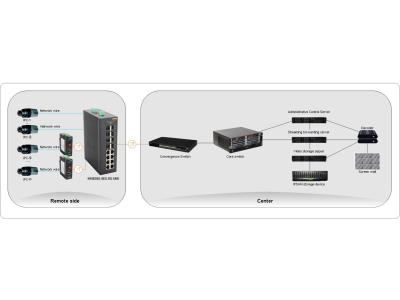

Constructed with a durable corrugated metal casing that meets IP40 protection standards, this switch is built to withstand the rigors of industrial applications. With an operating temperature range of -40 to 85℃, it is suitable for deployment in outdoor environments, including industrial automation, surveillance, campus networks, and electric power control systems.
Specifications
| Attribute | Details |
|---|---|

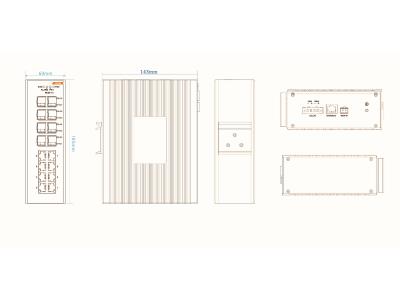

| Dimensions (L*W*H) | 185*143*60 mm |
| Weight | 1.24 Kg |
| Material | Corrugated metal casing |
| Operating Temperature | -40℃ to +85℃ |
| Storage Temperature | -45℃ to +85℃ |
| Input Voltage Range | 15-60VDC/12VDC redundant input |
| Idle Consumption | 0.61A @ 12VDC (Max) |
| Full-load Consumption | 1.13A @ 12VDC (Max) |
| Protection Grade | IP40 |
| Warranty Period | 5 years |
Additional Information
This industrial switch is equipped with advanced traffic management features, including port traffic monitoring and fault event alarming. It supports multiple protocols such as IGMP Snooping, VLAN, and various QoS configurations to enhance network performance. The device is compliant with CE, FCC, and ROHS standards, ensuring it meets regulatory requirements for safety and environmental impact.
