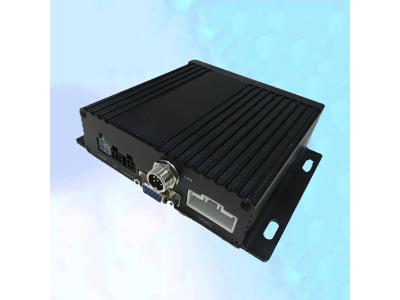

Mobile DVR
Inquire NowMobile DVR
Features:
l High definition video channels
l GPS/BDS/GLONASS positioning modules
l 4G/ WiFi/Bluetooth wireless transmission
l Face identification & driver monitoring system ( DMS ) sending alerts whenever it detects any signs of drowsiness or distraction like closing eyes, yawning, smoking, making a phone call, etc.
l An optional peripheral rugged data memory device that survives 11000C high intensity fire and functions 100m underwater for 240 hours
l For tracking, surveillance and fleet management online when connected to our platform
l A telematics device for data protection of passenger buses, delivery trucks, oil tankers or other commercial vehicles.
l Size：160 x 140 x 48mm
l NWT：800g
Technical Specifications:
|
System |
Linux 3.10 |
|
Video Input |
4 CH AHD 1080P/720P + 1 CH IPC |
|
Video Display in pixels |
PAL: 704 x 576 NTSC: 704 x 480 |
|
Video Coding |
H.265/H.264 dual stream coding |
|
Audio |
5 CH input G.711 audio stream coding |
|
Audio/Video Output |
HDMI x 1 CVBS x 1 |
|
Playback |
Single channel ( local ) 1/4/8 CH ( browser ) |
|
Storage |
2 x SD(512G) = 1024G External USB backup |
|
Satellite Positioning |
GPS + BD2 + GLONASS |
|
Wireless Communication |
3G/4G, WiFi & Bluetooth |
|
Peripheral Interface |
VOIP USB x 2 SIM/UIM card x 1 RJ45 for IP camera RS485 x 1 RS232 x 1 I/O: Input x 4 Output x 2 |
|
Power Input |
DC8V～36V |
|
Temperature Range |
-35～80℃ ( operation ) |
|
Humidity |
10～95% |
|
Shell Protection |
IP43 |
|
Parameters of crashworthy memory device ( a patented product for option ) |
|
|
Fire Resistance |
1100℃ 950℃ 260℃ |
|
Water Immersion |
100m underwater 240 hours |
|
Impact Force |
50g 100ms ( all axes ) |
