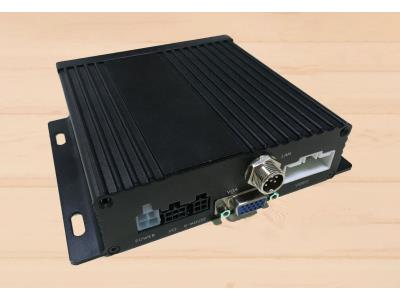

Mobile DVR Lite Model E5S4H – Lite
Inquire NowDescription
The Mobile DVR Lite Model E5S4H is a compact and innovative solution designed for individual vehicles lacking internet access. This device combines advanced GPS and BDS positioning and tracking capabilities with high-definition video recording, making it an ideal choice for those seeking reliable vehicular surveillance. With features such as WiFi for easy video downloads, candid photography, and indicator lights that display the real-time operational status of the DVR, this model ensures that you stay connected and informed on the go.
Measuring 160 x 140 x 48mm, the Mobile DVR Lite is designed for ease of use and installation in various vehicle types. It offers a seamless recording experience, capturing high-definition videos at 1080P and 720P resolutions. The device also supports dual stream coding, allowing for simultaneous live monitoring and local storage of video feeds.
Specifications
| Attribute | Details |
|---|---|
| Video input | 4 CH AHD 1080P@15fps/720P@30fps |
| Video coding | 4 AHD + 4 D1 dual stream coding; Live: H264/H265 high profile |
| OSD | Time, car plate number, position, etc. |
| Video output | 1 CH D1 + VGA |
| Miscellaneous | Candid photography; Display of side blind spot and rear image while reversing |
| Audio | 1 CH input; Coding: G.711, G726 |
| Wireless Communication | WiFi |
| Positioning | GPS + BDS dual modules; Accuracy ≤ 2.5m |
| Storage | SD card 512G x 2 |
| Peripheral interface | LAN 10/100Mbps 6-pin air connector; RJ485 x 1; I/O: 4 CH input and 1 CH output |
| Indicator lights | Alarm, video, video recording, positioning, power |
| Power input | Input: DC9～36V |
| Vibration | Increasing speed ≤ 50m/s² |
| Humidity | 93% |
| Temperature Range | -20～70℃ (operation) |
