Mobile DVR with embedded BSD system E5H8H-AI-2
Inquire NowDescription

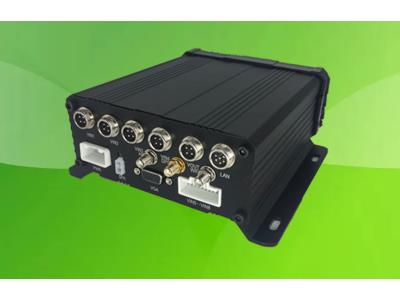

The Mobile DVR with embedded BSD system E5H8H-AI-2 is designed for enhanced vehicle safety and surveillance. This advanced device alerts drivers of pedestrians or motor vehicles in predefined blind spot areas, ensuring safer lane changes. The DVR supports analog high definition (AHD) video channels, allowing integration with IP cameras, as well as infrared and night vision security cameras for optimal visibility in low light conditions. Equipped with GPS and BDS dual positioning modules, it provides precise tracking capabilities.
The device features 4G/WiFi wireless transmission for easy connectivity and offers multiple recording modes, including continuous and alarm settings. Users can store footage via a TF card or HDD/SSD, with options for online transfer of system errors or malfunctions. A dedicated panic button enhances emergency response, making this DVR ideal for fleet management and surveillance applications.
Compact in size (175 x 136 x 70mm), it is built to withstand various conditions, ensuring reliability on the road.
Specifications
| Attribute | Details |
|---|---|
| System | Linux |
| Video Input | 8 CH AHD 1080P@15fps/720P@30fps + 1 IPC |
| Video Coding | H.265/H.264 high profile dual stream coding |
| Video Output | 1 CH D1 + 1 CH VGA |
| Video Format | PAL (default), NTSC |
| OSD | Time, car plate No, position, etc. video overlapping |
| Snapshot | Yes |
| Audio | A single input from any one of the 8 video inputs; G.711, G726 audio stream coding |
| Positioning | GPS + BDS dual systems; Accuracy: ≤ 2.5m (position), ≤ 0.1m/s (speed) |
| Wireless Communication | 4G/3G WiFi (optional) |
| Storage | 1 x TF (max 256G), HDD/SSD (1T/2T) |
| Peripheral Interface | LAN: 10/100 bps, USB x 1, RS485 x 1, I/O: 4 inputs and 1 output |
| Indicator Lights | Alarm, video, recording, platform, positioning, power |
| Power Input | DC9V～36V |
| Power Output | 12V, 5V |
| Temperature Range | -30℃～70℃ (operation), -40℃～85℃ (storage) |
| Humidity | 93% |
| Dimensions | 167 x 142 x 62mm |
