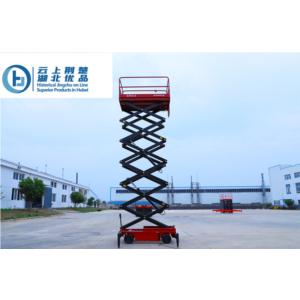

MOBILE SICSSOR LIFT
Inquire NowDescription
The Mobile Scissor Lift is an essential tool for high-altitude tasks such as equipment installation, maintenance, and decoration. Designed for versatility, it is ideal for multi-layer workshops, warehouses, and production lines, facilitating the transfer of goods across height differences and aiding in truck loading and unloading. This lift features a lifting oil cylinder equipped with unloading flow-limiting valves, ensuring a steady descent when raised to maximum height. Users can operate it conveniently from the ground or platform, thanks to an electric switch or optional remote control. Additionally, a manual oil pump can be included for operation without a power supply, enhancing its usability in various environments.
Specifications
Model | SJY0.5-7A | SJY0.5-9A | SJY0.5-11A | SJY0.5-12A | SJY0.5-14A | SJY0.3-13A | SJY0.4-16A | |
---|---|---|---|---|---|---|---|---|
Capacity | kg | 500 | 500 | 500 | 500 | 500 | 300 | 400 |
Max lift height | mm | 7000 | 9000 | 11000 | 12000 | 14000 | 13000 | 16000 |
Min platform height | mm | 1120 | 1240 | 1370 | 1656 | 1835 | 1495 | 2430 |
Working platform size | mm | 2150*1140 | 2150*1140 | 2150*1140 | 2500*1260 | 2500*1260 | 2150*1140 | 2750*1600 |
Unfolding size | mm | 2130*2890 | 2130*2890 | 2130*2890 | 2560*2890 | 2560*2890 | 2130*2890 | 3520*4140 |
Lift motor | V/KW | 48/2.2 | 48/2.2 | 48/2.2 | 48/2.2 | 48/3 | 48/2.2 | 48/3 |
Drive motor | V/KW | 48/2.5 | 48/2.5 | 48/2.5 | 48/2.5 | 48/3.5 | 48/2.5 | 48/3.5 |
Voltage | V | 48 | 48 | 48 | 48 | 48 | 48 | 48 |
Driving speed | KM/H | 3.5-4.5 | ||||||
Max Climb Capability | % | 10-15 | ||||||
Battery | V/Ah | 4*12V/70Ah | 4*12V/100Ah | 4*12V/70Ah | 4*12V/100Ah | |||
Charger | V/Ah | 48V/8A | 48V/10A | 48V/8A | 48V/10A | |||
Overall length | mm | 2200 | 2200 | 2200 | 2558 | 2558 | 2200 | 3020 |
Overall width | mm | 1300 | 1300 | 1300 | 1410 | 1410 | 1300 | 1960 |
Overall height | mm | 2120 | 2240 | 2370 | 2650 | 2987 | 2495 | 3430 |
Net Weight | kg | 1300 | 1580 | 1760 | 1980 | 2860 | 1980 | 3930 |
