Mobile tyre impact crushing plant
Inquire NowThe material is uniformly transported to the crusher by the feeder. After the initial crushing of the counter crusher, a closed-circuit system is formed through the circular vibrating screen to realize the circular crushing of the material. The finished material is exported by the conveyor for continuous crushing. The counter type mobile crusher can remove the circular vibrating screen according to the actual production needs, and realize the primary crushing of materials directly. It is easy to operate and flexible with other crushing equipment.
Product Information
|
技术参数表Technical parameter list |
||||||
|
轮胎移动反击式破碎站Tyre moving counter crushing station |
XRM-I139HC |
XRM-I239HC |
XRM-I255HC |
|||
|
长length（mm) |
10800 |
11400 |
11490 |
|||
|
宽wide(mm) |
2780 |
2780 |
2880 |
|||
|
高high(mm) |
4170 |
4300 |
4470 |
|||
|
重量weight(kg) |
28800 |
31500 |
39600 |
|||
|
轴重Axle load(kg) |
15900 |
17200 |
22100 |
|||
|
牵引销重Traction pin heavy(kg) |
11300 |
14300 |
17500 |
|||
|
反击式破碎机Impact crusher |
||||||
|
型号model |
HC139 |
HC239 |
HC255 |
|||
|
给料口material inlet(mm) |
1100×630 |
1100×740 |
1450×760 |
|||
|
产量production(t/h) |
90-150 |
130-200 |
180-250 |
|||
|
给料机feeder |
||||||
|
型号model |
GZT0724 |
GZT0932 |
ZSW3895 |
|||
|
料仓容积Bin volume(m3) |
3.2 |
7.6 |
9 |
|||
|
皮带机Belt conveyor |
||||||
|
型号model |
B800 |
B800 |
B1000 |
|||
|
永磁自卸式除铁器Permanent magnet dump iron remover |
||||||
|
除铁器In addition to the iron |
可选optional |
可选optional |
可选optional |
|||

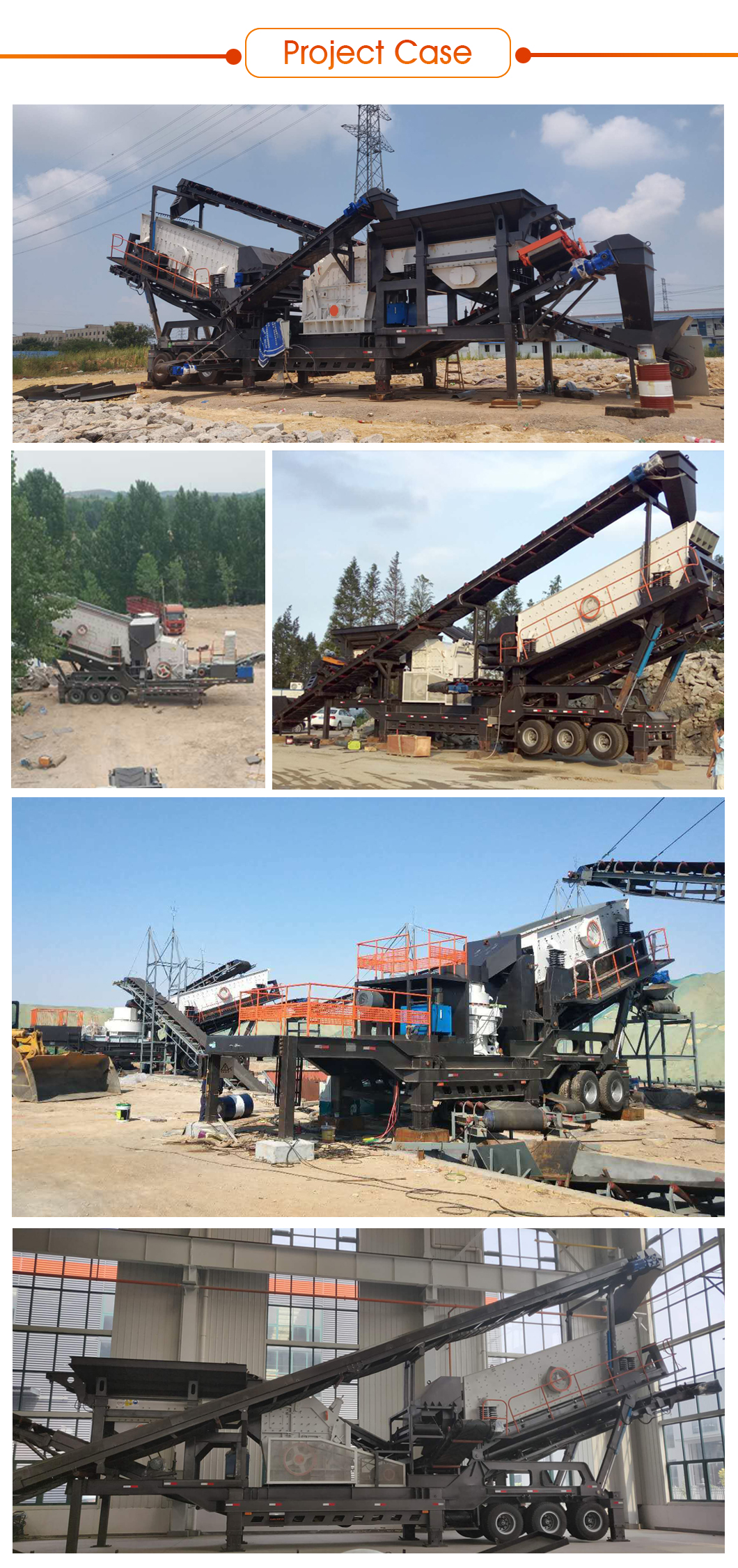

Project Case
