Modular Contoactor
Inquire NowDescription

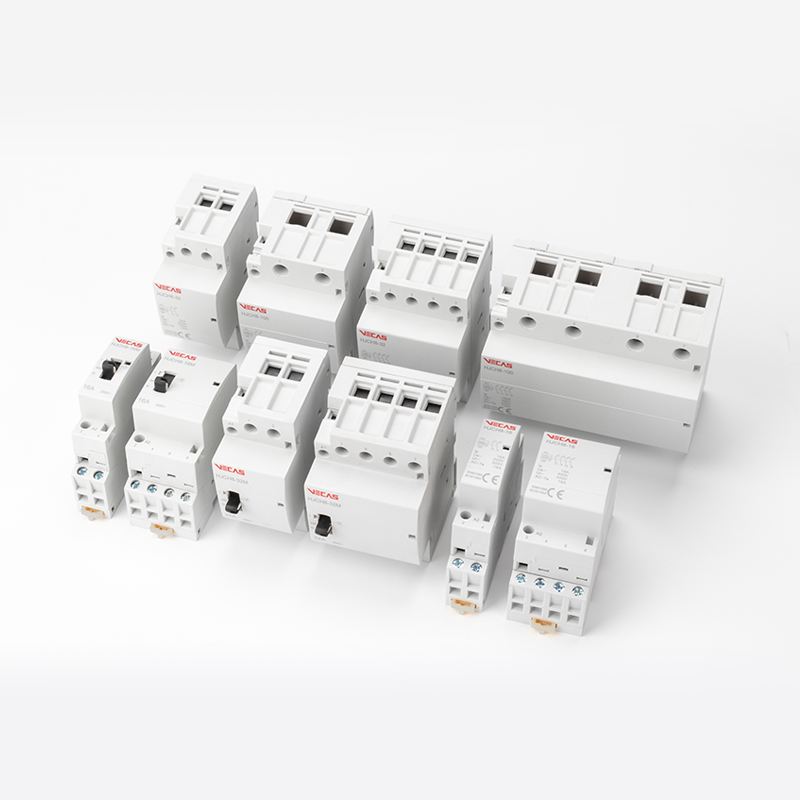

The Modular Contactor is a versatile and efficient control electric appliance designed for long-distance switching of non-inductive or low-inductive loads. This includes applications such as electric resistance furnaces and household appliances, making it essential for various home and industrial setups. The HJCH8 series, compatible with AC 50/60Hz, can handle a rated voltage of up to 400V and a current of up to 100A.
Constructed to operate in temperatures ranging from 5℃ to +40℃, with maximum average operational conditions of +35℃ over a 24-hour period, this contactor is built for reliability. The product also boasts a maximum operational altitude of 2000m and specific atmospheric conditions, ensuring its adaptability to different environments. The IP20 rating guarantees that it is protected against solid objects larger than 12mm, making it suitable for various industrial applications.
Specifications
| Attribute | Details |
|---|---|
| Rated Voltage | Up to 400V |
| Rated Current | 16A, 20A, 25A, 32A, 40A, 63A, 100A |
| Temperature Range | 5℃ to +40℃ (AVG not over +35℃ within 24h) |
| Altitude | Not over 2000m |
| Humidity | RH +40℃ not over 50%, can be 90% under +20℃ |
| Class of Pollution | 2 |
| Installation Type | II |
| Mode of Installations | TH35-7.5 types Steel DIN-Rail |
| IP Grade | IP20 |
Additional Information
- Available Versions:
- Contactor without manually-operated/automatic type
- Contactor with manually-operated/manual type
- Product Certificates: CB, CE, ROHS
