Molasses Packing Line
Inquire NowDescription
The Molasses Packing Line is a state-of-the-art packaging solution designed to enhance your production capabilities and boost market share by delivering superior quality products. This integrated line is specifically tailored for the Tobacco Honey processing industry, providing a comprehensive solution for bag forming, filling, sealing, cartoning, and cellophane over-wrapping. With its efficient design and high precision, this machine simplifies the packaging of various molasses products.
- Versatile Feeding System: Features both vertical and horizontal feeding and measuring systems to accommodate different specialties of molasses.
- Easy Cleaning: Designed with a convenient washing system to easily switch between different flavors of molasses.
- Full Packaging Line: Capable of handling pillow bags, cartoning, carton cellophane, boxing, and box cellophane.
- Efficient Mixing: Includes a mixer inside the hopper to ensure even and smooth feeding.
- Increased Speed: Packaging speed can be optimized while maintaining a vigilant check on sealing quality.
- Optional Screw Feeding Conveyor: An optional feature for enhanced functionality.
Specifications

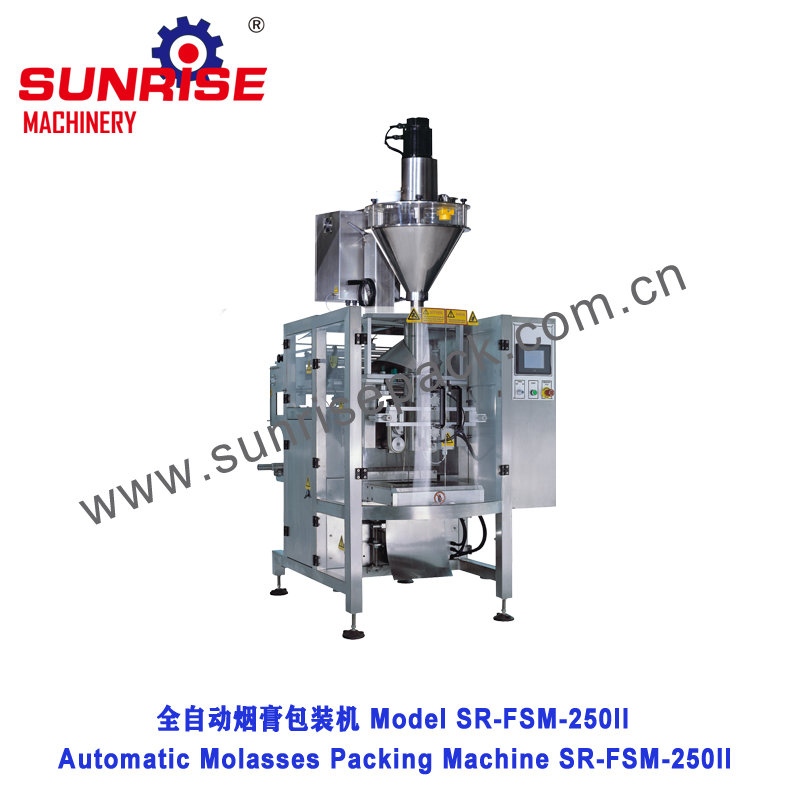

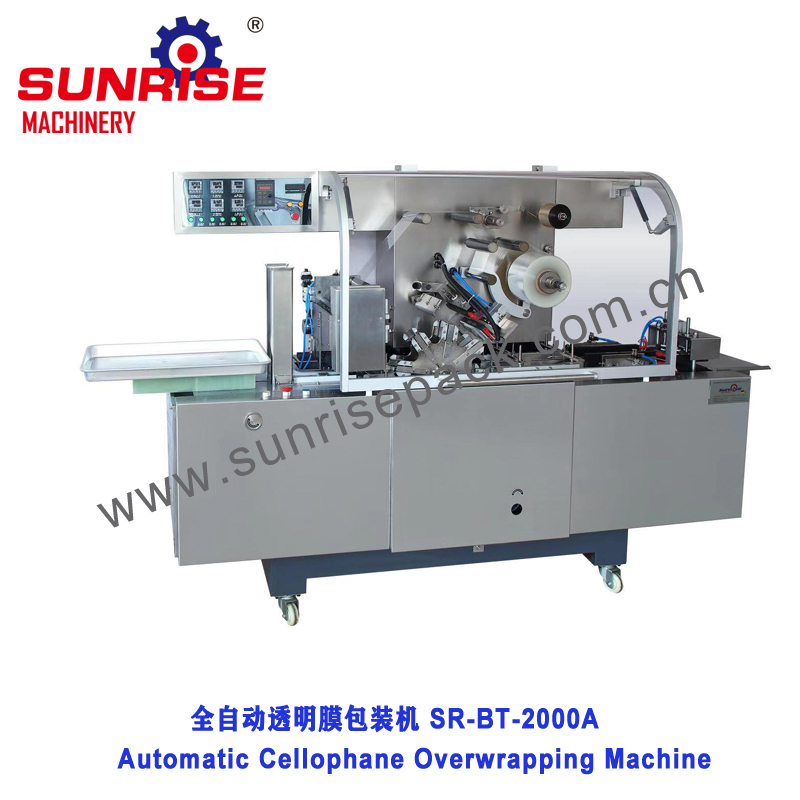

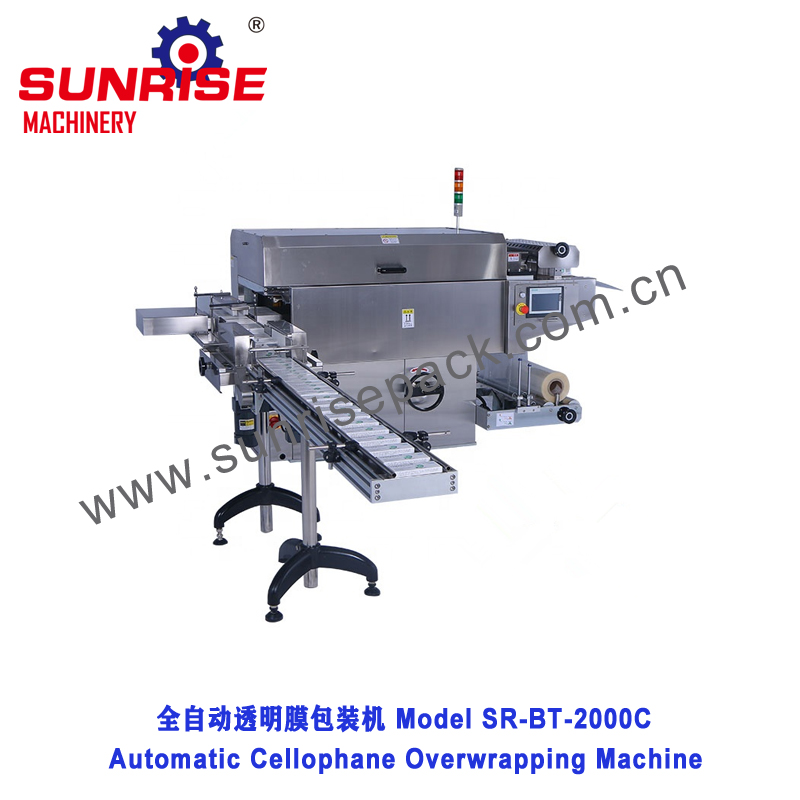

| Content | SR-FSM-150II/250II | SR-ZJH-80D | SR-BT2000A | SR-BT2000C |
|---|---|---|---|---|
| Filling Range | 30-150ml | single bag | small size single box | single or multiple boxes |
| Packing Size | L:50-150mm W:30-80mm | (50-190)x(25-90)x(15-70)mm (L*W*H) | (400-200)x(30-140)x(10-50)mm (L*W*H) | (60-350)x(40-200)x(15-125)mm (L*W*H) |
| Packing Material | heated lamination Nylon/PE, PET/PE | paper box | double side heatable BOPP | double sides heatable BOPP |
| Machine Dimension | 600x850x1780mm(L*W*H) | 3200x1320x1795mm(L*W*H) | 2400x850x1600(L*W*H) | 1846x750x1160mm (L*W*H) |
| Machine Weight | 350kg | 1200kg | 880kg | 500kg |
| Power | 220V 50Hz 1.3kW | 380V 50Hz 1.5kW | 220V 50Hz 0.75kW | 220V 50Hz 2.2kW |
Additional Information
This packaging line is designed for high efficiency and precise packing effect, making it an ideal choice for businesses looking to enhance their productivity in the molasses sector.
