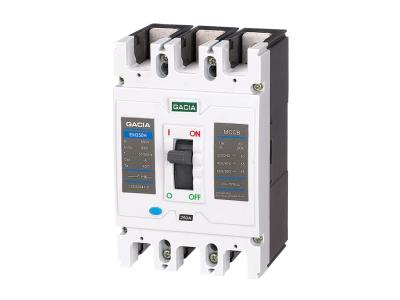

Molded Case Circuit Breaker, EM250S/EM250N/EM250H
Inquire NowDescription
The Molded Case Circuit Breaker EM250S/EM250N/EM250H is a robust and reliable electrical device designed to provide superior protection for electrical circuits. Complying with IEC/EN 60947-2 standards, this breaker is available in 2, 3, and 4-pole versions, making it versatile for various applications. With a rated insulated voltage of 690 AC V and a rated current capacity of up to 225A, it ensures optimal performance under demanding conditions. The breaker features a rated impulse withstand voltage of 8000V and operates at a rated working voltage of 400/415 AC V. Designed with breaking types N, S, and H, it meets essential safety and reliability standards, certified by CE and KEMA.
Specifications
| Attribute | Details |
|---|---|
| Model | EM250S/EM250N/EM250H |
| Standard Compliance | IEC/EN 60947-2 |
| Versions | 2, 3, and 4-Pole Versions |
| Rated Insulated Voltage | 690 AC V |
| Rated Current | Up to 225A |
| Rated Impulse Withstand Voltage | 8000V |
| Rated Working Voltage | 400/415 AC V |
| Breaking Type | N, S, and H |
| Certification | CE / KEMA |
