mortising machine
Inquire NowDescription

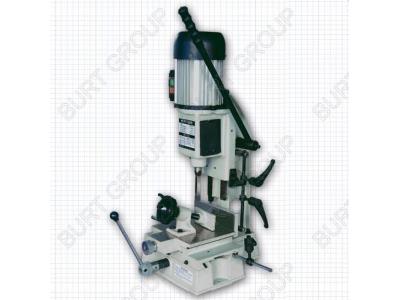

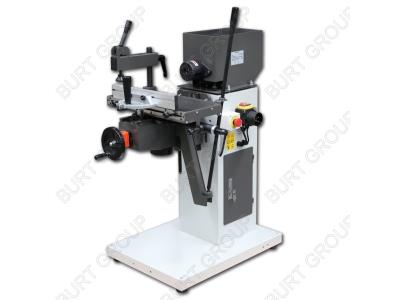

The MS3016A Updated Morticer is a powerful and efficient mortising machine ideal for woodworkers and carpenters seeking precision and reliability. With a robust motor power of 2,200W, it delivers an impressive motor speed of 2,850 RPM. This machine is designed to accommodate a maximum tool diameter of 16mm, making it suitable for various mortising tasks. Its advanced features include a digital readout for accurate table movement, an improved table-moving structure for smooth performance, and a detachable stand for compact storage. The MS3016A also includes a convenient tools cabinet to keep your workspace organized and efficient.
Specifications
| Attribute | Details |
|---|---|
| Model No | MS3016A |
| Motor Power | 2,200W |
| Motor Speed | 2,850/min |
| Voltage/Frequency | 3 x 400V (3 x 230V/1 x 230V)/50 (60)Hz |
| Maximum Tool Diameter | 16mm |
| Maximum Height of Mortising Above Table | 140mm |
| Maximum Longitudinal Travel of Table | 309mm |
| Maximum Cross Travel of Table | 150mm |
| Table Size | 500 x 207mm |
| Net/Gross Weight | 100/117kg |
| Packing Size | 1060 x 550 x 550mm |
| Units per 20-Foot Container | 80 |
Additional Information
Features:
* Improved table-moving structure for finely smooth and precise performance
* Detachable stand takes less space for packaging
* Digital readout to show the table movement precisely
* Tools cabinet for convenient tools organization
