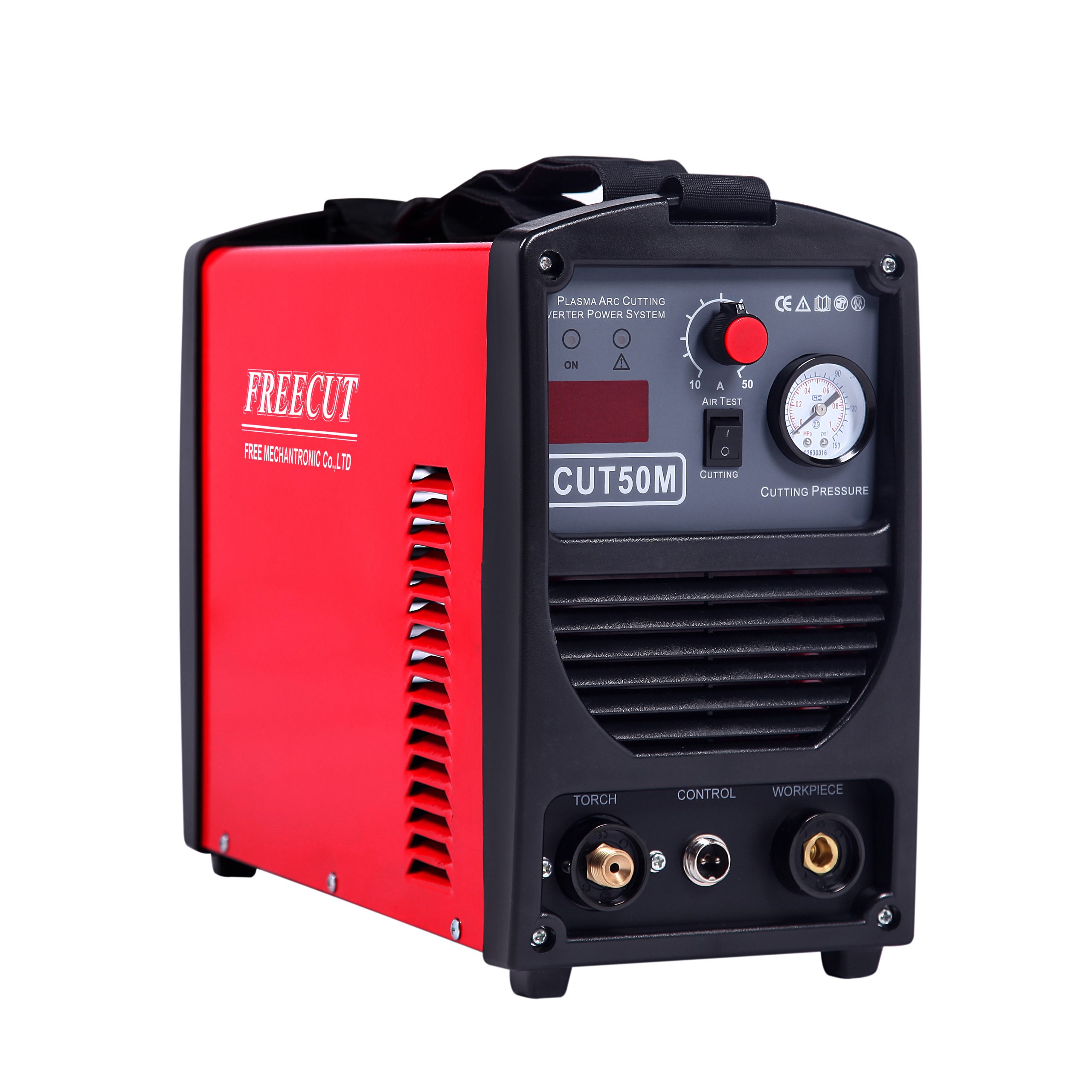

MOSFET HIGH FREQUANCY INVERTER PLASMA CUTTING MACHINE
Inquire NowDescription
MOSFET High Frequency Inverter Plasma Cutting Machine is designed for precision cutting with high efficiency and reliability. This advanced inverter technology features HF arc start and contact style cutting, ensuring clean and accurate cuts across various materials. With a digital amps display and an air pressure display meter conveniently located on the front panel, operators can monitor performance in real-time. The machine also incorporates thermal and overcurrent protection, enhancing safety during operation.
Specifications
| Model | Power Supply Voltage | Rate Input Capacity (KVA) | Rate Input Current (A) | No Load Voltage | Output Current Range | Duty Cycle | Max Cutting Thickness | Weight | L*W*H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| CUT-40M | 1*230V 50/60Hz | 6.5 | 28.5 | 200 | 15-40A | 60% | 12mm | 8.5kg | 305*165*265 |
| CUT-50M | 1*230V 50/60Hz | 9.2 | 40 | 200 | 15-50A | 60% | 16mm | 10.5kg | 305*165*265 |
